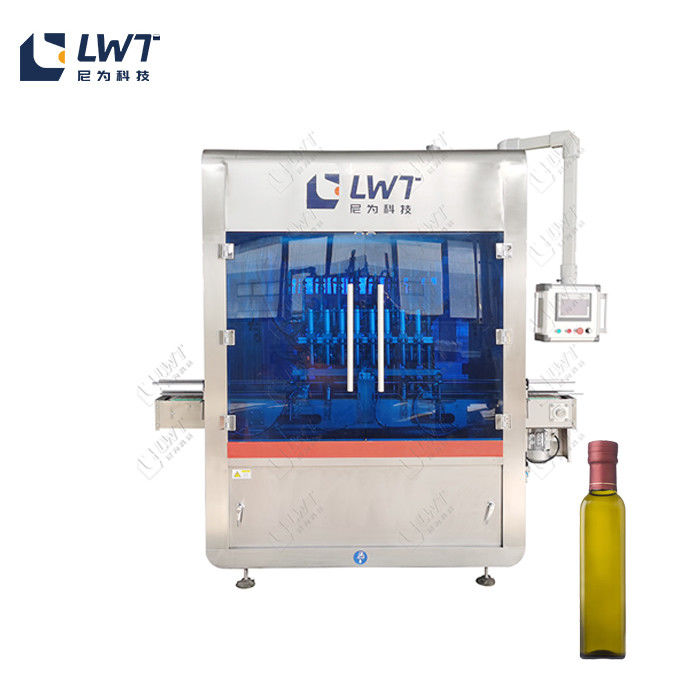

SUS304 2000BPH Automatic Edible Oil Filling Machine Customized Dimension

Place of Origin Shanghai, China
Brand Name Leadworld
Product Details
Filling Machine
APPAREL, Beverage, Commodity, Food
Automatic Grade:
Driven Type:
3 Years
Filling Accuracy:
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Filling Volume:
PLC Touch Screen Controled
Edible Oil Filling Machine
Degree Of Automation:
Fully Automatic
High Light:

Automatic Edible Oil Filling Machine


SUS304 Edible Oil Filling Equipment

Payment & Shipping Terms
Packaging Details
Standard export wooden case package .
Product Description

SUS304 2000BPH Automatic Edible Oil Filling Machine Oil Filling Equipment

1. Describe

Edible oil filling machine is a piece of equipment specially used for filling various edible oil products. It is favored by the majority of edible oil manufacturers for its efficient, accurate metering capabilities and stable and reliable operation. The following will introduce you to the characteristics and advantages of edible oil filling machines.

Multifunctional application: The edible oil filling machine is suitable for filling various edible oil products, including vegetable oil, peanut oil, sunflower oil, etc. Whether it is a small or medium-sized edible oil manufacturer or a large edible oil manufacturer, you can choose edible oil filling machines to meet the needs of products of different specifications and capacities.

High-precision measurement: This filling machine adopts advanced servo control system and flow meter measurement technology, and has high-precision measurement capabilities. By precisely controlling the filling volume, accurate filling and consistency of each product can be ensured, and waste and loss can be avoided.

Stable and reliable: The edible oil filling machine adopts a stable operating mode and advanced control system to ensure the stability and reliability of equipment operation. Whether it is long-term continuous operation or high-speed filling, it can maintain stable working conditions and improve production efficiency.

High degree of automation: The equipment adopts an automated control system and a touch screen operation interface to realize automated filling, sealing and labeling processes. It reduces the need for manual operations and improves production efficiency and product quality stability.

High filling efficiency: The edible oil filling machine adopts high-speed filling technology, which can achieve a fast and accurate filling process and improve production efficiency. At the same time, the equipment has flexible capacity adjustment function, which can meet the filling needs of edible oil products of different specifications and capacities.


SUS304 2000BPH Automatic Edible Oil Filling Machine Customized Dimension 0

2. Features

  • Preventing Leaking System
  • No Bottle or Lack of Bottle, No Filling System
  • Photoelectric Sensor, Mechatronics Filling Adjustment System
  • Photoelectric Sensor, Material Level Control Feeding System
  • Stainless Steel Frame, Plexiglass as Security Cover
  • Control System: PLC/Electronic-Pneumatic Controlled
  • Operation Panel: "Intelligent" Colorful Touch Screen
  • Filling Accuracy:+-0.5%—1%
  • Capacity Adjustment: All cylinders adjusted automatically combine single cylinder adjusted individually.
  • Container transport: Stainless steel frame and engineering plastic plate chain variable speed conveyor, with photoelectric sensor.


SUS304 2000BPH Automatic Edible Oil Filling Machine Customized Dimension 1

SUS304 2000BPH Automatic Edible Oil Filling Machine Customized Dimension 2



3. Main Technical Parameter


Model Filler volume Air consumption Filling accuracy Total power Machine size(mm)
LW-FPP-4A 10-60g 120L/Min liqud≤±0.5%Paste≤±1% 3P 380V,50/60Hz 1.369KW L2200*W1020*H2250
LW-FPP-6A 30-100g50-250g 140L/Min liqud≤±0.5%Paste≤±1% 3P 380V,50/60Hz1.69KW L2500×W1020×H2250
LW-FPP-8A 100-500g 160L/Min liquid≤±0.5%Paste≤±1% 3P 380V,50/60Hz 2.07KW L2500×W1020× H2250
LW-FPP-10A 200-1000g500-2500ml 180L/Min liquid≤±0.5%Paste≤±1% 3P 380V,50/60Hz 2.82kw L3000×W1020×H2250
LW-FPP-12A 1000-5000ml 300L/Min liquid≤±0.5%Paste≤±1% 3 P 380V,50/60Hz 2.82kw L3000×W1020×H2250




4. Application

SUS304 2000BPH Automatic Edible Oil Filling Machine Customized Dimension 3



Q1: What is your company’s main products?

Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)


Q2: What is delivery date of your products?

Delivery date is 30 working days usually most of the machines.


Q3: What is payment term?

Deposit 30% in advance and 70% before shipment the machine.


Q4:Are you manufacturer or trading company?

We are manufacture verified by ALIBABA and we have our own design team.


Q5:Where are you located? Is it convenient to visit you?

We are located in Shanghai. Traffic is very convenient.


Q6:How can you guarantee quality?

1.We have completed working system and procedures and we follow them very strictly.

2.Our different worker is responsible for different working process, their work is confirmed, and will always operate this process, so very experienced.

3.The electrical pneumatic components are from the world-famous companies, such as Germany's Siemens, Japanese Panasonic etc.

4.We will do strict test running after the machine is finished.

5.Our machines are certified by CE.


Q7:Can you design the machine according to our requirements?

Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.


Q8:Can you offer overseas technical support?

Yes. We can send an engineer to your company to set the machine and train your workers if needed.

More Questions, Please Leave Us A Message!
