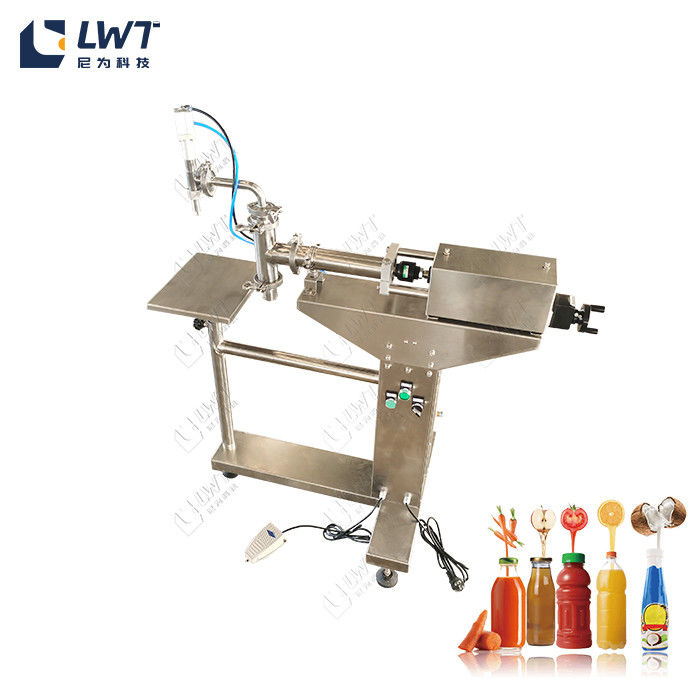

Pure pneumatic floor-standing liquid filling machine
The pure pneumatic floor-standing liquid filling machine is a piece of equipment that adopts pure pneumatic principles and is specially used for quantitative filling of various liquid products. This model has the following features:
1. Pneumatic components: This liquid filling machine uses pneumatic components to ensure the stability and reliability of the equipment. These pneumatic components are manufactured using advanced technology and feature high precision, long life and quick response, providing stable working performance and ensuring smooth production.
2. Simple and easy to disassemble: The liquid filling machine has a simple and clear structural design and is easy to disassemble and install. This design makes cleaning and replacing liquid materials quick and easy, saving maintenance time and costs. At the same time, the equipment can also be used in conjunction with the production line to improve production efficiency.
3. The filling volume and filling speed are adjustable: This model has flexible adjustment functions, and the filling volume and filling speed can be easily adjusted according to different product needs to meet different production requirements. In addition, the equipment is equipped with a foot switch and automatic filling function, making operation simple and convenient.
Semi-automatic filling machine technical parameters
|
Model
|
Filler volume
|
Air consumption
|
Filling accuracy
|
Total power
|
Machine size(mm)
|
|
LW-FMV-4A
|
10-60g
30-100g
50-250g
100-500g
200-1000g
500-2500ml
1000-5000ml
|
120L/Min
|
liquid≤±0.5%
Paste≤±1%
|
3 Ph. AC380V,
50/60Hz 1.369KW
|
L2200*W1020*H2250
|
|
LW-FMV-6A
|
140L/Min
|
liquid≤±0.5%
Paste≤±1%
|
3 Ph. AC380V,
50/60Hz 1.69KW
|
L2500 x W1020 x H2250
|
|
LW-FMV-8A
|
160L/Min
|
liquid≤±0.5%
Paste≤±1%
|
3 Ph. AC380V,
50/60Hz 2.07KW
|
L2500 x W1020 x H2250
|
|
LW-FMV-10A
|
280L/Min
|
liquid≤±0.5%
Paste≤±1%
|
3 Ph. AC380V,
50/60Hz 2.82kw
|
L3000 x W1020 x H2250
|
|
LW-FMV-12A
|
300L/Min
|
liquid≤±0.5%
Paste≤±1%
|
3 Ph. AC380V,
50/60Hz 2.82kw
|
L3000 x W1020 x H2250
|
Why choose us
Technical strength: 20000㎡ specialized and innovative super factory, 30+ patent certificates, 30+ engineers, production line machines covering more than 80+ countries around the world
Production and export strength: 15 years of machinery manufacturing experience, 100+ single-machine equipment, providing comprehensive production line whole factory planning, annual export value of 80 million
Installation and after-sales strength: 7*24 hours customer service, 40+ external engineers provide door-to-door installation and door-to-door maintenance services
Shanghai LWT Intelligent Technology Co., Ltd is specialized in researching and manufacturing various whole set of packing production systems, such as Canned food production line, carton packing and palletizer system, automatic filling system, vacuum packing system, different kinds of conveyor system, labeling system and so on, our specialized engineer team will offer whole plant planning.
Leadworld is a industrial and trade integrated enterprise with design, production, customization and installation capabilities, with import and export rights.
We are an outstanding enterprise recognized by China canning association and vice President of canning association.
Our company devote to digesting and absorbing advanced science of processing and automatic equipment.
Welcome to visit us at any time, our equipment is ready to go, waiting at any time.
Pre-sales:
According to client-specific machinery or automatic product line requirement, supply reasonable machine sketch map, quotation, and similar
video for client ref first.
During Sales:
1) Depends on the client's need to custom base on the standard machine.
2) Repeat 20 ongoing hours testing equipment
operation stability.
3) Execute GMP certification for the equipment and materials used in the production process requirement and specification strictly.
After-Sale:
1. During the epidemic, we support senior engineers to provide one-by-one video guidance; And other times, we will assign professional engineers to customer companies for installation or maintenance services according to customer needs;
2. Supply systematic operation training for client workers.
3. Guarantees all equipment (except human factors) within one year, lifetime maintenance services.
4. After the client use the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years.
5. If quality problems arise, the supplier provides technical support and timely supply wearing parts.
FAQ
Q1: What is your company’s main products?
Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)
Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Are you manufacturer or trading company?
We are manufacture verified by ALIBABA and we have our own design team.
Q5:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by CE.
Q7:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.
Q8:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your worker if needed.
More Questions, Please Leave Us A Message!
