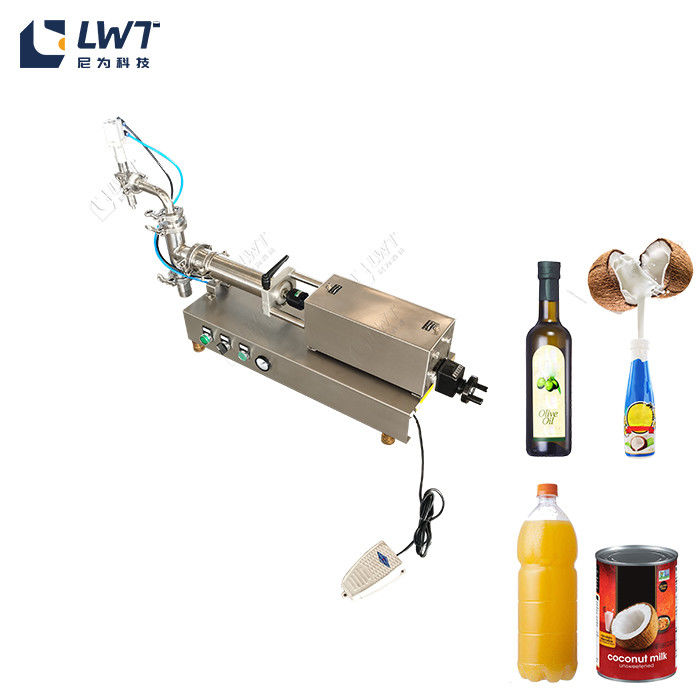

Pure pneumatic piston liquid filling machine
Semi-automatic liquid/paste filling machine (horizontal) is a semi-automatic quantitative liquid filling machine, mainly used for quantitative liquid filling in chemical, food, daily chemical, pharmaceutical, lubricating oil and other industries. Here are the features of this product:
1. Japanese SMC pneumatic components: This liquid/paste filling machine uses Japanese SMC brand pneumatic components to ensure the quality and reliability of the equipment. SMC pneumatic components have the characteristics of high precision, long life and fast response, which can provide stable working performance and ensure the smooth progress of production.
2. Easy to disassemble and clean: The design of this liquid/paste filling machine takes into account the convenience of cleaning and maintenance. The equipment structure is simple and clear, easy to disassemble and install, and convenient for cleaning and replacing liquid materials. At the same time, the equipment can also be used in conjunction with the production line to improve production efficiency.
3. Adjustable filling volume and filling speed: This liquid/paste filling machine has flexible adjustment functions. Users can easily adjust the filling volume and filling speed according to the needs of different products to achieve ideal production results. At the same time, the equipment is also equipped with a foot switch and automatic filling function, making the operation simple and convenient.
Semi-automatic filling machine technical parameters
Model |
Filler volume |
Air consumption
|
Filling accuracy |
Total power |
Machine size(mm) |
LW-FMV-4A
|
10-60g
30-100g
50-250g
100-500g
200-1000g
500-2500ml
1000-5000ml
|
120L/Min |
liquid≤±0.5%
Paste≤±1%
|
3 Ph. AC380V,
50/60Hz 1.369KW
|
L2200*W1020*H2250 |
LW-FMV-6A
|
140L/Min |
liquid≤±0.5%
Paste≤±1%
|
3 Ph. AC380V,
50/60Hz 1.69KW
|
L2500 x W1020 x H2250
|
LW-FMV-8A
|
160L/Min
|
liquid≤±0.5%
Paste≤±1%
|
3 Ph. AC380V,
50/60Hz 2.07KW
|
L2500 x W1020 x H2250 |
LW-FMV-10A
|
280L/Min
|
liquid≤±0.5%
Paste≤±1%
|
3 Ph. AC380V,
50/60Hz 2.82kw
|
L3000 x W1020 x H2250
|
LW-FMV-12A |
300L/Min |
liquid≤±0.5%
Paste≤±1%
|
3 Ph. AC380V,
50/60Hz 2.82kw
|
L3000 x W1020 x H2250 |
