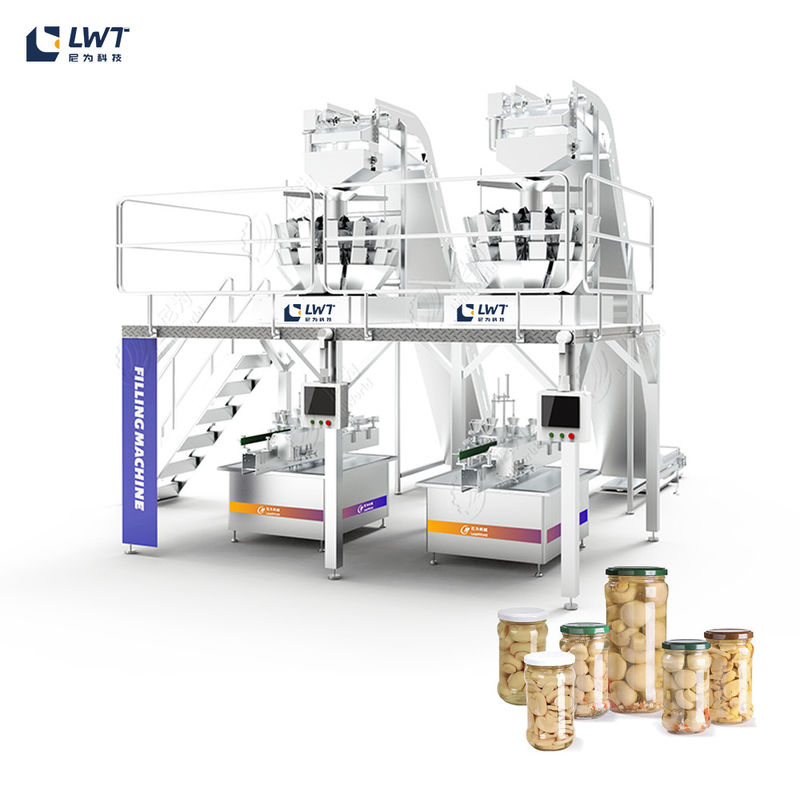

Automatic Solids Multi-Head Scale Filling Machine Mushroom Slices Multihead Weigher Filler

Place of Origin Shang Hai
Brand Name LWT
Certification CE
Model Number Automatic Solids Multi-Head Scale Filling Machine
Minimum Order 1 SET
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram, and According to your needs
Product Details
video
Air Consumption:
0.3m³/min
Air Pressure:
0.4-0.6MPa
Control System:
PLC
Dimension:
1300*800*1700mm
Filling Accuracy:
±1%
Filling Capacity:
50-5000ml
Filling Head:
4-8 Heads
Filling Speed:
20-40 Bottles/min
Noise:
≤75dB
Power Consumption:
1.5KW
Power Supply:
220V/50Hz
Product Name:
Automatic Solids Multi-Head Scale Filling Machine
Payment & Shipping Terms
Price
Price Negotiable
Packaging Details
Film bag& plastic cartons& wooden cartons
Delivery Time
45 days
Product Description

product introduction:

The device is used for the automatic weighing of all kinds of solid raw materials, filling in glass bottles, tin cans, and other containers within the device. To complete the automatic measurement of solid raw materials, feeding, canning, and finished product delivery of all the packaging processes. To achieve full automation of the production line, the body as a whole with SUS304 stainless steel components, beautiful health, well-made, easy to use, stable operation.



Automatic Solids Multi-Head Scale Filling Machine Mushroom Slices Multihead Weigher Filler 0



AUTO WEIGHT AND FILLING MACHINE:

This machine suits glass jars, iron cans, plastic jars, big-mouth bottles, etc. Mainly used for peach flap, peach strip, peach dicer, pear chunk, pear, Hawthorn, strawberries, grapes, apricots, lychee, braise in soy sauce meat, chicken, and so on, any kinds of solid product's canning measuring and filling.



Automatic Solids Multi-Head Scale Filling Machine Mushroom Slices Multihead Weigher Filler 1



MAIN TECHNICAL PARAMETER:

Model: LW-FWS50
Capacity: 2400-3000bph(Customized)
Measuring range: 50g-2000g(Customized)
Measurement accuracy: 2-10g
IP Grade: more than IP55



Automatic Solids Multi-Head Scale Filling Machine Mushroom Slices Multihead Weigher Filler 2

The Main Purpose:

This machine suits glass jars, iron cans, plastic jars, big-mouth bottles, etc. Mainly used to peach flap, peach strip, peach dicer, pear chunk, pear, Hawthorn, strawberries, grapes, apricots, lychee, braise in soy sauce meat, chicken, and so on, any kinds of the solid product' scanning measuring and filling.



Automatic Solids Multi-Head Scale Filling Machine Mushroom Slices Multihead Weigher Filler 3
