Bagged condiment production line bag production line

Place of Origin Shang Hai
Brand Name LWT
Minimum Order 1 SET
Product Details
Payment & Shipping Terms
Price Negotiable
Packaging Details
Film bag& plastic cartons& wooden cartons
Product Description

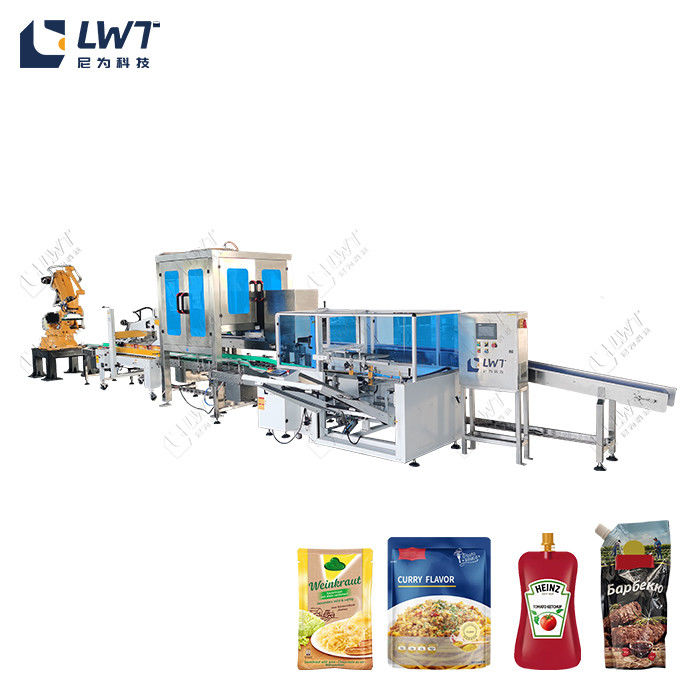

Bagged condiment production line bag production line


Bag packaging production line equipment process:


Belt conveyor - carton unpacking machine - carton sealing machine - palletizer



1. Belt conveyor

The materials of the belt conveyor line include: rubber, silicone, PVC, PU and other materials. In addition to the transportation of ordinary materials, it can also meet the transportation of oil-resistant, corrosion-resistant, anti-static and other materials with special requirements. The use of food-grade conveyor belts can meet the requirements of food, pharmaceutical, daily chemical and other industries.



2. Carton erector

The automatic carton unpacking machine adopts PLC + human-machine interface control. The folding bottom does not stop, and the bottom folding and bottom sealing are completed during transportation. It completes the entire process of box suction, forming, bottom folding, and bottom sealing at the same time. It is easy to operate, simple to maintain, and has stable performance.



work process:


Manually place cartons on the storage board of the machine, and the machine automatically pulls the cartons apart (suction cup type) to form, automatically folds the bottom pages and seals the boxes. It will automatically alarm and stop when there is a shortage of boxes. It can be jointly controlled when empty boxes accumulate on the conveyor line. Automatic stop, according to the packing speed, automatically replenish empty boxes when there is a shortage of boxes.

The carton opener can be quickly adjusted and switched according to the carton size.

Unpacking machine operating mode: manual or automatic optional




3. Cartoning machine

The cartoning machine uses a parallel robot, which has the operating characteristics of XYZ translation and rotation around the Z axis in three-dimensional space. It has the advantages of fast speed, high reliability, strong ease of use, and low maintenance cost.




4. Carton sealing machine


Sealing; simple operation, easy to use, easy to adjust, fast sealing speed, high efficiency, sturdy and durable, can be used as a stand-alone machine, or can be used in conjunction with automated post-packaging lines.

It is suitable for product packaging and carton sealing in various industries such as household appliances, textiles, food, daily necessities, pharmaceuticals, light industry, chemical industry, etc.




5. Robot palletizer

The robot palletizer is a high-tech product with electromechanical integration. Medium and low-position palletizers can meet the production needs of medium and low volumes. It can complete the palletizing of various products such as bags, plastic blocks, and boxes according to the required grouping method and number of layers. The more optimized design makes the stack shape tight

Dense and neat.

Packaging production line


6. Characteristics of Niwei bag packaging production line


  • The whole machine is made of SUS 304 or SUS 316 stainless steel, which is beautiful and easy to clean;
  • The equipment is on standby 24 hours a day and is easy to operate;
  •  Machine parts are from well-known brands such as Siemens, Danfoss, Schneider, Panasonic, etc., and the machine performance is stable, reliable and guaranteed;
  • The entire production line configuration can effectively utilize the factory area; the equipment adopts unified size standards to facilitate the connection between machines, and the factory structure is more beautiful and coordinated; it facilitates early design communication, equipment installation, and debugging, and is also conducive to subsequent after-sales maintenance ;
  •  LWT has focused on the automation industry for 15 years and has rich production line success stories: production line machines cover more than 80+ countries around the world; 20,000+ specialized and new super factories.
