LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine
  • LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine
  • LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine
  • LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine
  • LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine
  • LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine
  • LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine

LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine

Place of Origin Shanghai, China
Brand Name LWT
Minimum Order 1
Product Details
Application:
Food, Beverage, Commodity, Chemical, Machinery & Hardware, Apparel, Textiles, Tobacco
Packaging Type:
Cartons, Cans, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Case
Packaging Material:
Plastic, Paper, Metal, Glass, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220 V, 380 V
Dimension(l*w*h):
Customized
Warranty:
1 Year
Key Selling Points:
Multi Color, Easy To Operate, Remote Monitoring, Low Noise Level, Energy Saving, Long Service Life, Remote Control, High-accuracy, High Safety Level, Flexible Manufacturing, Competitive Price, High Rigidity, Eco-Friendly, High Productivity, Multifunctional
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Core Components:
PLC, Gear, Pump, Motor, Bearing, Pressure Vessel, Engine, Gearbox
Weight (KG):
500
Machine Size:
Machine Size Also Partly Deponds On Bottles Size And Capacity
Height Of Feeding Conveyor:
1100mm±50mm
Power:
3Phase,380V, 50/60HZ, 3KW
Suitable Bottle Type:
PET/PP Bottles
Air Pressure:
6kg/cm2, 450ml/min
Packing Speed:
≤18 Cases / Min
Body Material:
Carbon Steel
Payment & Shipping Terms
Price
$22,500
Product Description
Products Description
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 0

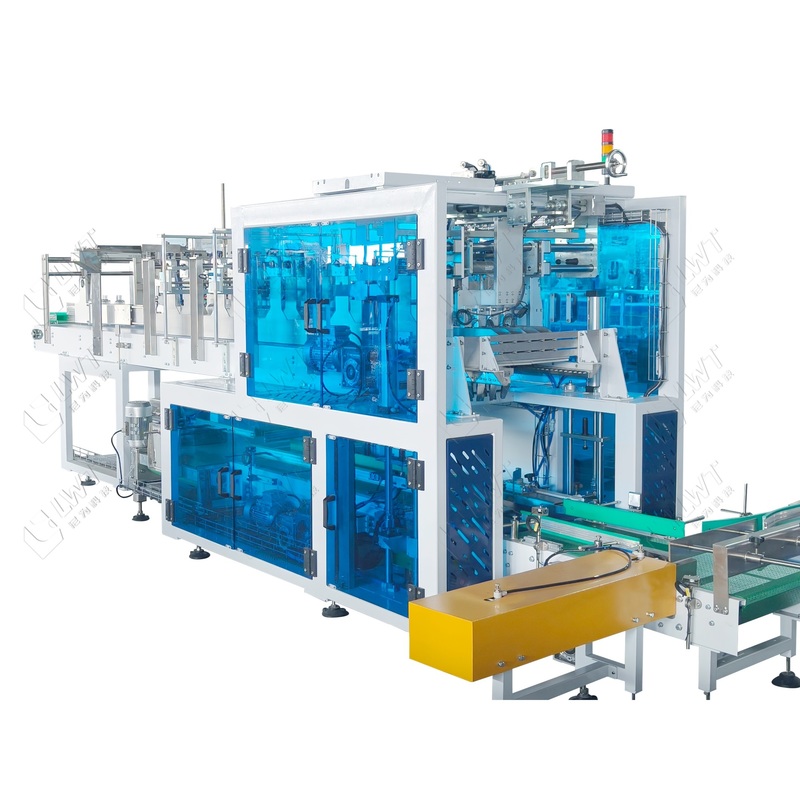

LWT Drop packing machine
This machine has a wide range of application, small area and can be used on a single machine. it is suitable for automatic packing machines for various specifications of bottled, pot and barreled products, and can be used online with filling machine, opening machine, sealing machine, etc., to complete the post-packaging production line.
According to the requirements of the number of product boxes, this machine can automatically arrange and pack the products into boxes, and the products filled with boxes can be automatically sent to the conveying drum and automatically connected to the unmanned production line.
This machine is widely used in medicine, food, daily chemical and other light industries.
Machine size
L5850W1250H1730mm
Machine weight
500kg
Height of feeding conveyor
1100mm±50mm
Power
3Phase,380V, 50/60HZ, 3KW
Suitable bottle type
PET/PP bottles
Air pressure
6kg/cm2, 450ml/min
Packing speed
≤18 cases / min
Body material
Carbon steel
Note
machine size also partly depends on bottles size and capacity
Item
Brand
PLC
Siemens/Germany
Motor
JMC/China
Cylinder/solenoid valve
Air TAC
Intermediate relay
Schneider
Circuit breaker
Schneider
Ac contactor
Schneider
Sensor
SICK
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 2
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 4

Automatic system control cabinet:

Case wraparound machine adopt Siemens PLC to control the complete system of the machine.The interface is Schneider touch screen with good display of production management and status.
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 6
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 8

Conveyor system:

The Bottles and cans will be divided and inspected on this conveyor.
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 10
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 12

Lateral carton pressing mechanism:

The lateral cardboard of carton be pressed by this mechanism to form the shape.
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 14
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 16
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 18
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 20
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 22
Leadworld is committed to the R&D, design, and production of packaging line machinery at the back end of the production line. Do you need other packaging line machinery? For more information please contact us.
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 24
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 26
Carton Erector



Leadworld automatic carton erector machine(automatic forming and sealing machine) is to open the carton board, fold the bottom of the carton according to a certain procedure, and seals it with adhesive tape before sending it to the packing machine.
Case Packer




Leadworld custom case packer is used to pack the products into boxes (corrugated boxes, plastic boxes, trays)  according to a certain arrangement and quantity. it is suitable for packing bottles cartons, bags, and other products
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 28
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 30
Carton Sealer



Leadworld carton sealing machine is mainly applicable to the sealing of cartons. It is used in combination with carton forming and unpacking machines, packing machines, labeling machines, carton stacking machines, conveyors, and other equipment.
Carton Palletizer




Leadworld Carton palletizer is to stack the cartons loaded into containers on pallets and pallets(wood and plastic) according to a certain arrangement for automatic stacking.
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 32
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 34
Company Profile
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 36
Shanghai Leadworld Machinery Technology Co., Ltd is specialized in researching and manufacturing various whole set of packing production systems, such as Canned food production line, carton packing and palletizer system, automatic filling system, vacuum packing system, different kinds of conveyor system, labeling system and so on, our specialized engineer team will offer whole plant planning.
Leadworld is a industrial and trade integrated enterprise with design, production, customization and installation capabilities, with import and export rights.
We are an outstanding enterprise recognized by China canning association and vice President of canning association.
Our company devote to digesting and absorbing advanced science of processing and automatic equipment.
Welcome to visit us at any time, our equipment is ready to go, waiting at any time.
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 38
Pre-sales:
According to client-specific machinery or automatic product line requirement, supply reasonable machine sketch map, quotation, and similar video for client ref first.
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 40
During Sales:
1) Depends on the client's need to custom base on the standard machine.
2) Repeat 20 ongoing hours testing equipment
operation stability.
3) Execute GMP certification for the equipment and materials used in the production process requirement and specification strictly.
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 42
After-Sale:
1. During the epidemic, we support senior engineers to provide one-by-one video guidance; And other times, we will assign professional engineers to customer companies for installation or maintenance services according to customer needs; 2. Supply systematic operation training for client workers. 3. Guarantees all equipment (except human factors) within one year, lifetime maintenance services. 4. After the client use the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years. 5. If quality problems arise, the supplier provides technical support and timely supply wearing parts.
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 44
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 46
FEEDBACKS
LWT Drop Falling Type Carton Case Packer Packing Machine Line/Bottle Drop Packer Machine 48
