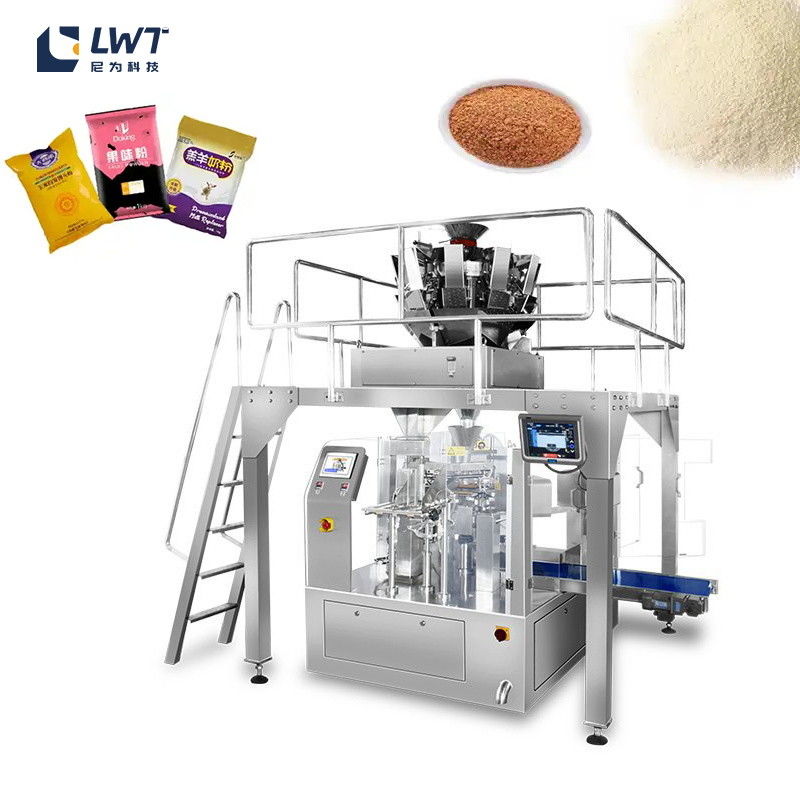

Powder Packing Machine Coffee Milk Premade Zipper Bag Doypack Food Spices Pouch Multi-Function Packaging Machine

Place of Origin	China
Brand Name	Leadworld

Product Details

Type:

Multi-Function Packaging Machine, Multi-Function Packaging Machine

Production Capacity:

5bag/min, 20bag/min, 7bag/min, 6bag/min, 40bag/min, 9bag/min, 25bag/min, 8bag/min, 15bag/min, 10bag/min, 50bag/min, 30bag/min

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C

Weight (KG):

500

Showroom Location:

Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lank

Condition:

New

Function:

FILLING, Wrapping, Capping, Sealing

Application:

Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

Packaging Type:

Stand-up Pouch, Bags, Film, Pouch

Packaging Material:

Plastic, Paper, Metal

Automatic Grade:

Automatic

Driven Type:

Electric

Voltage:

380V 50Hz,3PH (Customized)

Dimension(L*W*H):

2800*1500*1900mm/can Be Customized

Warranty:

3 Years

Key Selling Points:

High-accuracy

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

3 Years

Core Components:

Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox

Product Name:

Production Line

Main Function:

Weighing Forming Filling Sealing

Packing Speed:

30-80bags/min

Material:

Stainless Steel 304/316

Bag Type:

3 Sides Seal/Back Seal

After-sales Service Provided:

Online Support

Usage:

Bag Making Filling Sealing

Keyword:

Packaging Machinery Equipment

Port:

Shanghai

Payment & Shipping Terms

Price

Price Negotiable

Product Description

Product Show

Workflow 1. Upper bag. 2 Bag opening. 3 Blanking. 4 Add liquid. 5 Reserved. 6 Reserved. 7 Ferry bag. 8 Reserve one (vacuum); 1. Bag connection. 2 Close the cover. 3 Primary vacuum. 4 Secondary vacuum. 5 tertiary vacuum. 6 Four times of vacuum. 7 sealing, 8 Seal cooling. 9 Bleed. 10 Open the lid and take out the bag

Specification

Main technical parameter	Food forming,filling material, vacuum sealing, printing date, cutting automatically.
Pouch Type	Stand-up bag, Gusseted bag, Handle bag, Spout bag, Paper bag, Zipper bag (for option)
Working Station	Six working station
Pouch	100-450mm
Capacity	Up to 50 bags/ min (product property and filling range count)
Filling Range	0-3000g
Voltage	C380V/50Hz, three phases (or customize according to specific demands)
Power	3.5KW
Air Sourse	0.4 CBM/ min (offered by the user)

Automatic packing machine			14 heads Multi-heads filling
Type	LWT-720	Model	LWT-14
Bag length	100-420mm(L)	Max weight capacity(once)	10-2000g
Bag width	80-350mm(W)	Weighing Accuracy(g)	±0.5-1.5g
Max width of roll film	720mm	Max. Weighing Speed	120Bags/Min (depends on weight)
Packing speed	5-50bags/min	Hopper Volume	2500 mL
Air consumption	0.65mpa	Control Panel	7" LCD Touch Screen
Gas consumption	0.4m³/min	Options	Dimple Plate/Timing Hopper/Printer/Rotary Top Cone
Power voltage	220V/50HZ	Driving System	Step Motor
Power	4KW	Power Requirements	220V / 1500W / 50/60HZ / 10A
Dimension	(L)1500mm×(W)1170mm×(H)1650mm	Packing Dimension(mm)	1720(L) ×1100(W) ×1230(H)
Weight of machine	750Kg	Gross WGT	490KG

Main performance and characteristics 1. The automatic vacuum packaging machine is composed of two separate rotary bodies (filling system and vacuum system respectively);

2. Convenient operation: it adopts PLC touch screen control and man-machine interface operation system, which is intuitive and convenient to operate;

3. Convenient adjustment: fully automatic Just input the required parameters from the man-machine interface, and all parts of the packaging machine can be adjusted to the part of the required command;

4. High degree of automation: meet the requirements of full-automatic vacuum, realize unmanned in the process of weighing and packaging, and give an automatic alarm of war barrier;

5. The perfect prevention system can intelligently detect whether the bag is opened and whether the bag is complete. If it is not suitable to add materials, it will not be heat sealed Do not waste bags and materials and save costs;

6. The equipment meets the hygienic standard of food processing machinery, and the contact part between the equipment and materials is processed with 304 stainless steel or other materials that meet the requirements of food hygiene.

7. Use prefabricated packaging bags with high sealing quality and improve the grade of finished products;

8. Scope of applicable packaging materials: a variety of measuring scales can be selected to package small fish, pickles, nuts, fried goods, spicy puffing, liquid and other materials.

Applications & Bag types:
It is new-updated compact version pouch pick fill seal packing machine for various pre-made bags such as pillow bags, gusset
bags,zipper bags etc.As a cost saving solution, it is ideal for a lot of applications such as coffee, frozen foods,
cookies,cereals, nuts, flowers,candies, liquid etc. It can also be interfaced with other equipment for use with turnkey lines.

Product Application

Applications & Bag types: It is new-updated compact version pouch pick fill seal packing machine for various pre-made bags such as pillow bags, gusset bags,zipper bags etc.

As a cost saving solution, it is ideal for a lot of applications such as coffee, frozen foods, cookies,

cereals, nuts,flowers,candies, liquid etc. It can also be interfaced with other equipment for use with turnkey lines.
