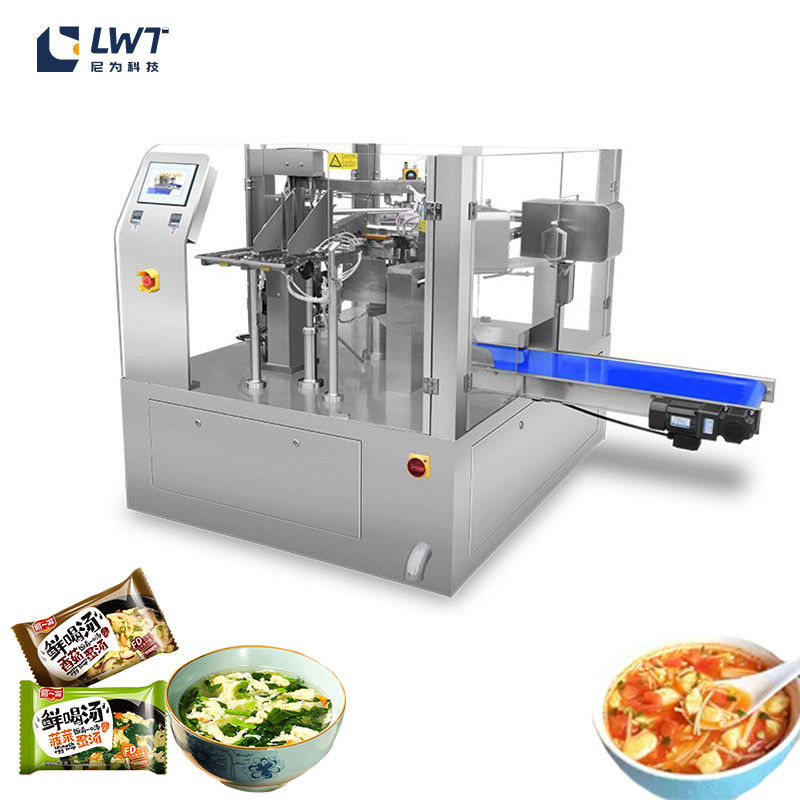

Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine

Place of Origin Shanghai, China
Brand Name Lead World
Product Details
Type:
Multi-Function Packaging Machine
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Condition:
New
Function:
BOXING, FILLING, Sealing, Wrapping, Labeling, Laminating, Capping, Embossing, Gluing, SLITTING, Counting
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
380V
Key Selling Points:
Easy To Operate
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Usage:
Filling Packing Machine
Port:
Shanghai
Payment & Shipping Terms
Price
$5,380.00/sets >=1 sets
Packaging Details
Auto Thermoforming Vacuum Packing Machine
wooden case
Supply Ability
10 Set/Sets per Month
Product Description
Product Show
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 0
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 1
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 2
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 3
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 4
Workflow 1. Upper bag. 2 Bag opening. 3 Blanking. 4 Add liquid. 5 Reserved. 6 Reserved. 7 Ferry bag. 8 Reserve one (vacuum); 1. Bag connection. 2 Close the cover. 3 Primary vacuum. 4 Secondary vacuum. 5 tertiary vacuum. 6 Four times of vacuum. 7 sealing, 8 Seal cooling. 9 Bleed. 10 Open the lid and take out the bag
Specification
Main technical parameter
Food forming,filling material, vacuum sealing, printing date, cutting automatically.
Pouch Type
Stand-up bag, Gusseted bag, Handle bag, Spout bag, Paper bag, Zipper bag (for option)
Working Station
Six working station
Pouch
100-450mm
Capacity
Up to 50 bags/ min (product property and filling range count)
Filling Range
0-3000g
Voltage
C380V/50Hz, three phases (or customize according to specific demands)
Power
3.5KW
Air Sourse
0.4 CBM/ min (offered by the user)
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 5
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 6
 Automatic packing machine
14 heads Multi-heads filling
Type
LWT-720

Model
LWT-14
Bag length
100-420mm(L)

Max weight capacity(once)
10-2000g
Bag width
80-350mm(W)

Weighing Accuracy(g)
±0.5-1.5g
Max width of roll film
720mm

Max. Weighing Speed
120Bags/Min (depends on weight)
Packing speed
5-50bags/min

Hopper Volume
2500 mL
Air consumption
0.65mpa

Control Panel
7" LCD Touch Screen
Gas consumption
0.4m³/min

Options
Dimple Plate/Timing Hopper/Printer/Rotary Top Cone
Power voltage
220V/50HZ

Driving System
Step Motor
Power
4KW

Power Requirements
220V / 1500W / 50/60HZ / 10A
Dimension
(L)1500mm×(W)1170mm×(H)1650mm

Packing Dimension(mm)
1720(L) ×1100(W) ×1230(H)
Weight of machine
750Kg

Gross WGT
490KG
Main performance and characteristics 1. The automatic vacuum packaging machine is composed of two separate rotary bodies (filling system and vacuum system respectively);
2. Convenient operation: it adopts PLC touch screen control and man-machine interface operation system, which is intuitive and convenient to operate;
3. Convenient adjustment: fully automatic Just input the required parameters from the man-machine interface, and all parts of the packaging machine can be adjusted to the part of the required command;
4. High degree of automation: meet the requirements of full-automatic vacuum, realize unmanned in the process of weighing and packaging, and give an automatic alarm of war barrier;
5. The perfect prevention system can intelligently detect whether the bag is opened and whether the bag is complete. If it is not suitable to add materials, it will not be heat sealed Do not waste bags and materials and save costs;
6. The equipment meets the hygienic standard of food processing machinery, and the contact part between the equipment and materials is processed with 304 stainless steel or other materials that meet the requirements of food hygiene.
7. Use prefabricated packaging bags with high sealing quality and improve the grade of finished products;
8. Scope of applicable packaging materials: a variety of measuring scales can be selected to package small fish, pickles, nuts, fried goods, spicy puffing, liquid and other materials.
Applications & Bag types:
It is new-updated compact version pouch pick fill seal packing machine for various pre-made bags such as pillow bags, gusset
bags,zipper bags etc.As a cost saving solution, it is ideal for a lot of applications such as coffee, frozen foods,
cookies,cereals, nuts, flowers,candies, liquid etc. It can also be interfaced with other equipment for use with turnkey lines.
Product Application
Applications & Bag types: It is new-updated compact version pouch pick fill seal packing machine for various pre-made bags such as pillow bags, gusset bags,zipper bags etc.
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 7
As a cost saving solution, it is ideal for a lot of applications such as coffee, frozen foods, cookies,
cereals, nuts,flowers,candies, liquid etc. It can also be interfaced with other equipment for use with turnkey lines.
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 8
Optional Products
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 9
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 10
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 11
Platform
Elevator
Model
LWT-2Platform

Model
LWT-300
Maximum Loading Weight
2T-3T

Convey speed
3750mm/min
Equipment Size
2000mm*2000mm*2000mm

Power
750W
Net Weight
350kg

Convey Measure
4T/H(Rice)



Overall size
3000(L)×650(W)×3750(H)mm
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 12
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 13
Collecting table
Bag former
Model
LWT-C
Packing machine has one bag forming tube. If the bag width is fixed, no need to buy extra tube. If you have different bag widths,
you have to buy extra tubes. For example, you have 3 bag widths, you have to buy extra two tubes.
If only the bag length change, no need to buy extra bag forming tube. You can modify the parameter on the touch screen.
Convey speed
Speed can be changed(fast or slow depends on your choice)
Diameter
1.2m
Surface
Concave
Power
220V/370W/50HZ
Weight of machine
100KG
Packaging size
1300mm(L)*380mm(W)*1300mm(H)
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 14
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 15
Detailed instruction: 1.Conveyor body part: 1.1 Main body side chain plate:Plate thickness:δ2.0mm Material:SUS304. When produced according to the actual size. 1.2 Roller:Material SUS304,diameter is based one the actual load,cooperate with the plus or minus tolerance. 1.3 Riding wheel:Material Nylon processing molding,diameter is based one the actual load,cooperate with the plus or minus tolerance. 1.4 Bun foot:Nylon injection molding,Cooperate with stainless steel adjusting screw M16. 1.5 Guardrail part adopts big Caluminum trackCooperate with wear-resisting sheath; 1.6 Connecting plate:plate wicknessδ3.0mm Material:Stainless steel bending forming; 1.7 Accessories:Mounted Bearings、kinds of SUS304 screws,etc. 2.Conveying carrier part 2.1 Belt length
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 16
Leadworld Automatic Pouch Pre-made Bag Packing Machine pellet packing machine vegetable soup packaging machine 17

Explanation of the design plan

According to the product information described by the customer, our company recommends the use of a stainless steel computerized automatic double-layer water bath/steam sterilizer. ⚫ The hot water is stored in the upper tank, which can be quickly filled during sterilization, the product heats up quickly, the product is completely immersed in the sterilization water, the temperature penetrates into the product in all directions, and the product matures quickly. ⚫ The design of this product is based on canned and flexible packaging sterilization, excluding glass bottles, the heating method is direct heating by a heating tube, the sterilization method is a circulating water bath, and the cooling method is The formula is direct cooling. ⚫ The control method is fully automatic computer control, the operator is only responsible for entering and leaving the sterilization material, all sterilization processes are automatically controlled, and can also be manually controlled. ⚫ The quality of the equipment is stable, durable, and the optimally designed sealing structure is more durable and easy to maintain; easy to operate and easy to install, according to ergonomic The design makes the machine safer and more convenient.
project
Content
Retort inner diameter/cylinder length/volume
1200mm /3600mm /about 4.5m3
Effective use size of sterilizer (length/width/volume)
3600mm /800mm /800mm
design pressure
0.35Mpa
maximum working pressure
0.3Mpa
Pressure test pressure
0.44Mpa
maximum operating temperature
143℃
total installed power
Water pump 7.5kw,cycle pump 5.5kw,exchange use
voltage
380V
Pot body material
SUS30408
pot body wall thickness
5mm
Footprint (L/W/H)
About 5500mm×2200mm×3100mm
