Fully Automatic Pallet Stretch Wrapping Machine 380V Multifunction Packing Machine

Place of Origin Shanghai, China
Brand Name Leadworld
Certification CE
Product Details
Type:
Wrapping Machine
Applicable Industries:
Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops
After Warranty Service:
Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type:
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case
Packaging Material:
Plastic, Paper, Metal, Glass, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Dimension(L*W*H):
OEM
Weight:
650 KG
After-sales Service Provided:
Online Support, Video Technical Support, No After-sales Service, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Warranty:
3 Years
Key Selling Points:
Easy To Operate
Marketing Type:
New Product 2020
Product Name:
Automatic Packing Line
Function:
Automatic Carton Packaging Line
Keywords:
Automatic Pallet Stacking Robot
Machine Type:
Packing Line Solution
Usage:
Carton Box Packing Sealing Machine
Name:
Automatic Boxing Cartoning Packing Machine
Packing Speed:
Customer's Requirements
Suitable For:
Packing Bottle Cans Jars
Capacity:
15-100 Box/min
Machine Name:
Multifunction Packing Machine
Port:
Shanghai
High Light:

380V Multifunction Packing Machine

,

Automatic Pallet Stretch Wrapping Machine

,

Carton Stretch Wrapping Machine

Payment & Shipping Terms
Price
Price Negotiable
Packaging Details
According to your need for custom
Product Description


Product Description of Fully Automatic Pallet Stretch Wrapping Machine

Fully Automatic Pallet Stretch Wrapping Machine Automatic stretch pallet wrapping machines work process is using LLDPE stretch film (a plastic film) to wrap goods which load on the pallet, the stretch film provides extra support while the products being transported or stocked so that they do not tip, spill, or otherwise damage. It is widely used in chemical industry, electronic industry, building materials, home appliances, paper making, foodstuff & drink etc, especially the container goods transportation in foreign trade.

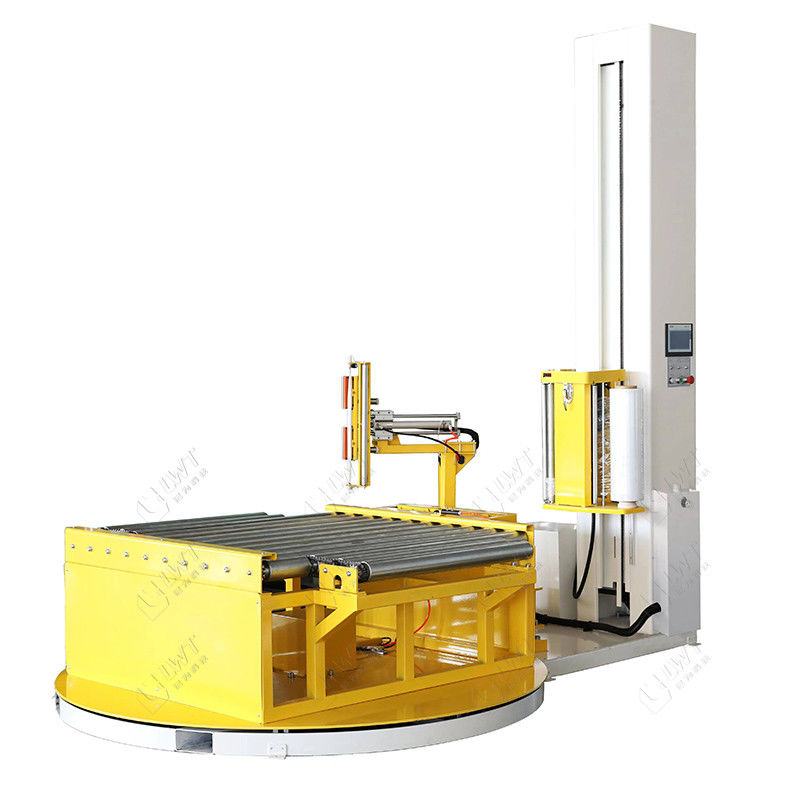

Fully Automatic Pallet Stretch Wrapping Machine 380V Multifunction Packing Machine 0



Technical Parameters ​ of Fully Automatic Pallet Stretch Wrapping Machine



Product Name
Fully Automatic Pallet Stretch Wrapping Machine
Min wrap size(L*W*H)
500mm*500mm*500mm
Max wrap size(L*W)
1200mm*1200mm*2000mm
Max wrap height
2000mm(option: 2400mm, 2600mm,2800mm,3000mm)
Max load weight
2000kg(option: 2500kg, 3000kg)
Machine specification
3800*1000*1400
Turntable rotation speed
3-12 rpm
Turntable diameter
1650mm
Turntable height
85mm
Film carriage
Pre-stretch 300%
Packing efficiency
20-40 loads/hour
Voltage/Power
220V/50HZ 1Phase, 1.5kw
Max weight
1000KG

Product Show Of Fully Automatic Pallet Stretch Wrapping Machine


Fully Automatic Pallet Stretch Wrapping Machine 380V Multifunction Packing Machine 1
Support the customization of the whole packaging line, such as the customization of packaging machine products such as the unpacking machine, the packing machine, the sealing machine, the strapping machine, and the stacking machine. The machine can be tested with supplied materials and customized.
Product Details
Images of Fully Automatic Pallet Stretch Wrapping Machine
Fully Automatic Pallet Stretch Wrapping Machine 380V Multifunction Packing Machine 2
Fully Automatic Pallet Stretch Wrapping Machine 380V Multifunction Packing Machine 3
Fully Automatic Pallet Stretch Wrapping Machine 380V Multifunction Packing Machine 4
Fully Automatic Pallet Stretch Wrapping Machine 380V Multifunction Packing Machine 5
Fully Automatic Pallet Stretch Wrapping Machine 380V Multifunction Packing Machine 6
Fully Automatic Pallet Stretch Wrapping Machine 380V Multifunction Packing Machine 7
Support the customization of the whole packaging line, such as the customization of packaging machine products such as the unpacking machine, the packing machine, the sealing machine, the strapping machine, and the stacking machine. The machine can be tested with supplied materials and customized.
Fully Automatic Pallet Stretch Wrapping Machine 380V Multifunction Packing Machine 8



FAQ

Q1: What is your company’s main products?

Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)

Q2: What is delivery date of your products?

Delivery date is 30 working days usually most of the machines.

Q3: What is payment term?

Deposit 30% in advance and 70% before shipment the machine.

Q4:Are you manufacturer or trading company?

We are manufacture verified by ALIBABA and we have our own design team.

Q5:Where are you located? Is it convenient to visit you?

We are located in Shanghai. Traffic is very convenient.

Q6:How can you guarantee quality?

1.We have completed working system and procedures and we follow them very strictly.

2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.

3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.

4.We will do strict test running after the machine is finished.

5.Our machines are certified by CE.

Q7:Can you design the machine according to our requirements?

Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.

Q8:Can you offer overseas technical support?

Yes. We can send engineer to your company to set the machine and train your worker if needed.

More Questions, Please Leave Us A Message!
