China Carton Packaging Machine

Carton Packaging Machine

Created with Pixso. Home > products

High Speed Adjustable Top Bottom Tape Electric Stable Automatic Cartons Boxes Box Sealer Carton Sealing Machine

Place of Origin Shanghai, China
Brand Name Leadworld
Product Details
Type:
SEALING MACHINE
Max Speed:
5m/min, 75pcs/min, 18m/min, 100pcs/min, 6m/min, 25pcs/min, 150pcs/min, 12m/min, 80pcs/min, 50pcs/min, 140pcs/min, 40pcs/min, 110pcs/min, 85pcs/min, 20M/MIN, 45pcs/min, 10m/min, 14m/min, 7m/min, 60pcs/min, 16m/min, 90pcs/min, 20pcs/min, 120pcs/min, 30pcs/mi
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Ro
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type:
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case
Packaging Material:
Plastic, Paper, Metal, Glass, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Dimension(L*W*H):
1500*800*950
Key Selling Points:
Easy To Operate
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
3 Years
Core Components:
PLC, Gear, Gearbox, Motor, Bearing, Engine, Pressure Vessel, Pump
Name:
Box Sealer Carton Sealing Machine
Material:
Carbon Steel Paint
Function:
Industry Packaging Caton Sealing
Usage:
End Of Packaging Line
Working Speed::
50-100 Ctns/h(according To Your Carton Size)
After-sales Service Provided:
Online Support& Video Technical Support &Expatriate Engineer
Maximum Out Of The Box Size:
L450*W400*H400mm(customized)
Minimum Out Of The Box Size:
L200*W150*H100mm(customized)
Technical Services:
Expatriate Engineer
Port:
Shanghai
Payment & Shipping Terms
Price
Price Negotiable
Packaging Details
Carton sealing machine
1.Wooden case made of plywood
2.Or as you required
Product Description

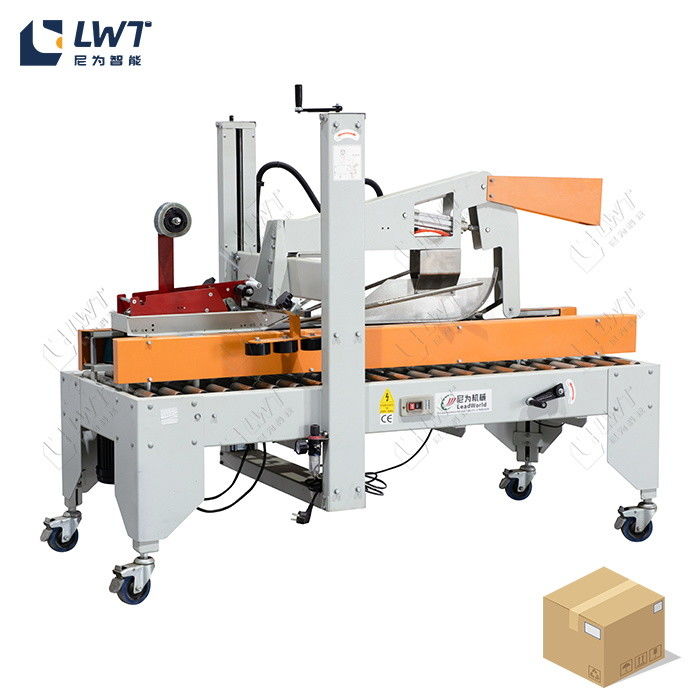

High Speed Adjustable Top Bottom Tape Electric Stable Automatic Cartons Boxes Box Sealer Carton Sealing Machine 0
The automatic folding and sealing machine can automatically fold the upper cover and automatically stick the tape on the top and bottom without manual operation; the carton is sealed with instant tape, the sealing effect is smooth and beautiful, and the sealing is firm. It can be operated by a single machine or equipped with an automated packaging line. Widely used in food, medicine, beverage, tobacco, daily chemical, automobile, cable, electronics, and other industries.
High Speed Adjustable Top Bottom Tape Electric Stable Automatic Cartons Boxes Box Sealer Carton Sealing Machine 1
High Speed Adjustable Top Bottom Tape Electric Stable Automatic Cartons Boxes Box Sealer Carton Sealing Machine 2
Product Name
Automatic Folding carton sealing machine
Conveyor speed
20M/Min
Carton size range
L:200-600mm  W:150-500mm  H:150-500mm(Customized)
Single / 3 phase, voltage, frequency
110/220V 50/60Hz 1Phase
Power
400W
Tape size
48/60/75mm(Customized)
Air consumption
50NL/min
Air pressure
0.6Mpa
Table height
600+150mm
Top sealing machine Size
L:1770mm W:850mm H:1520mm  (customized)
The machine weight
250kg
High Speed Adjustable Top Bottom Tape Electric Stable Automatic Cartons Boxes Box Sealer Carton Sealing Machine 3
High Speed Adjustable Top Bottom Tape Electric Stable Automatic Cartons Boxes Box Sealer Carton Sealing Machine 4
Leadworld Global can supply solutions for the whole set of automatic production filling, packing, and logistics systems. more packaging machine recommends to you.

Contact us to get complete packaging line solutions:
High Speed Adjustable Top Bottom Tape Electric Stable Automatic Cartons Boxes Box Sealer Carton Sealing Machine 5

FAQ

Q1: What is your company’s main products?

Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)

Q2: What is delivery date of your products?

Delivery date is 30 working days usually most of the machines.

Q3: What is payment term?

Deposit 30% in advance and 70% before shipment the machine.

Q4:Are you manufacturer or trading company?

We are manufacture verified by ALIBABA and we have our own design team.

Q5:Where are you located? Is it convenient to visit you?

We are located in Shanghai. Traffic is very convenient.

Q6:How can you guarantee quality?

1.We have completed working system and procedures and we follow them very strictly.

2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.

3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.

4.We will do strict test running after the machine is finished.

5.Our machines are certified by CE.

Q7:Can you design the machine according to our requirements?

Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.

Q8:Can you offer overseas technical support?

Yes. We can send engineer to your company to set the machine and train your worker if needed.

More Questions, Please Leave Us A Message!
