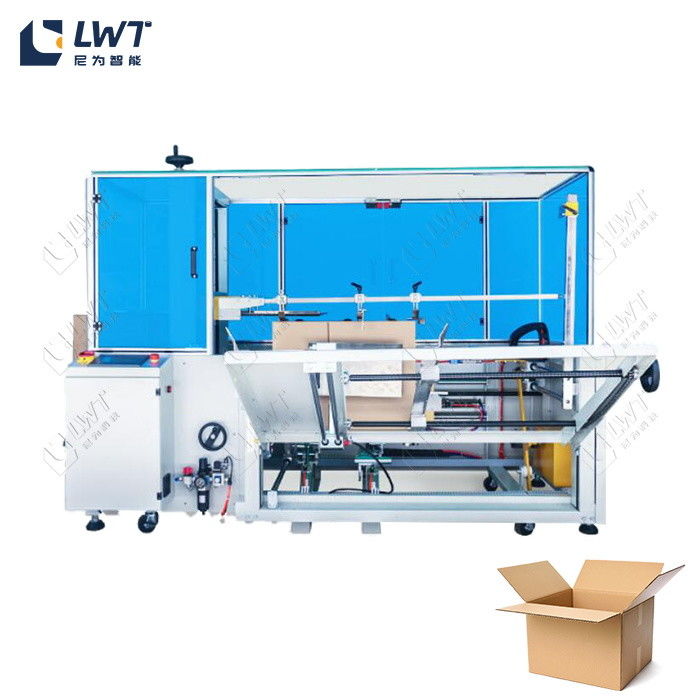

Automatic Carton Box Case Opening Erecting Unpacking Machine Erector Machine

Place of Origin Shanghai, China
Brand Name LeadWorld
Certification CE and according to your market
Product Details
Type:
SEALING MACHINE
Max Speed:
5m/min, 75pcs/min, 18m/min, 100pcs/min, 6m/min, 25pcs/min, 150pcs/min, 12m/min, 80pcs/min, 50pcs/min, 140pcs/min, 40pcs/min, 110pcs/min, 85pcs/min, 20M/MIN, 45pcs/min, 10m/min, 14m/min, 7m/min, 60pcs/min, 16m/min, 90pcs/min, 20pcs/min, 120pcs/min, 30pcs/mi
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type:
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Dimension(L*W*H):
L3120*W1250*H1740mm
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Core Components:
PLC, Gear, Gearbox, Motor, Bearing, Engine, Pressure Vessel, Pump
Function:
Industry Packaging Line Carton Erector
Material:
Stainless Steel/Carbon Steel Paint(customized)
After Warranty Service:
Video Technical Support/ Online Support/Spare Parts
Technical Support:
Field Maintenance And Repair Service
Speed:
50 Pcs/min Can Be Customized
Port:
Shanghai
Payment & Shipping Terms
Price
Price Negotiable
Packaging Details
According to your need for custom
Product Description

Automatic Carton Box Case Opening Erecting Unpacking Machine Erector Machine 0
Main Features:

1.Vertical storage,cartons can be added at any time without stopping the machine.



2. Suitable for forming and sealing cartons of the same size.

3.Manually adjust to change the carton sizes(finishing in 2-3minutes).

4. Advanced photo electricity induction control system.

5.Rationally designed,the forming,folding and sealing process are accomplished simultaneously.

6.Cutter Safety system to prevent hands form stabbed by the cutter

7.Heavy duty built,both steel and stainless steel types.
Automatic Carton Box Case Opening Erecting Unpacking Machine Erector Machine 1
Model
LW-EV18
LW-EH30
LW-EH50
Capacity
18pcs/min
30pcs/min
50pcs/min
Carton collecting
100pcs(1000mm)
80pcs(800mm)
80pcs(1000mm)
Carton size
L:250-400mm
W:150-350mm
H:100-350mm
L:240-510mm
W:190-400mm
H:120-400mm
L:250-450mm
W:150-400mm
H:100-300mm
Power
220V 1Φ 200W
380V 3Φ 746W
380V 3Φ 746W
Air Consumption
0.6Mpa 450NL/min
0.5Mpa 300NL/min
0.5Mpa 300NL/min
Machine Size
L2400*W1200*H1450mm
L2372*W1210*H1820mm
L3120*W1250*H1740mm
Belt Size
48,60,75mm
2'',2.5''
2'',2.5''
Automatic Carton Box Case Opening Erecting Unpacking Machine Erector Machine 2
Automatic Carton Box Case Opening Erecting Unpacking Machine Erector Machine 3
Leadworld Conventional Carton Erector Machine:
Automatic Carton Box Case Opening Erecting Unpacking Machine Erector Machine 4
Vertical Carton Erector Machine
Automatic Carton Box Case Opening Erecting Unpacking Machine Erector Machine 5
Horizontal Carton Erector Machine
Automatic Carton Box Case Opening Erecting Unpacking Machine Erector Machine 6
Automatic Carton Box Case Opening Erecting Unpacking Machine Erector Machine 7

Our Service

Pre-sales: According to client-specific machinery or automatic product line requirement, supply reasonable machine sketch map, quotation, and similar video for client ref first.



During Sales:



1) Depends on the client's need to custom base on the standard machine.



2) Repeat 20 ongoing hours testing equipment operation stability.



3) Execute GMP certification for the equipment and materials used in the production process requirement and specification strictly.



After-Sale:



1. we will assign professional engineers to customer companies for installation or maintenance services according to customer needs;



2. Supply systematic operation training for client workers.



3. After client use the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years.



4. If quality problems arise, the supplier provide technical support and timely supply wearing parts.
