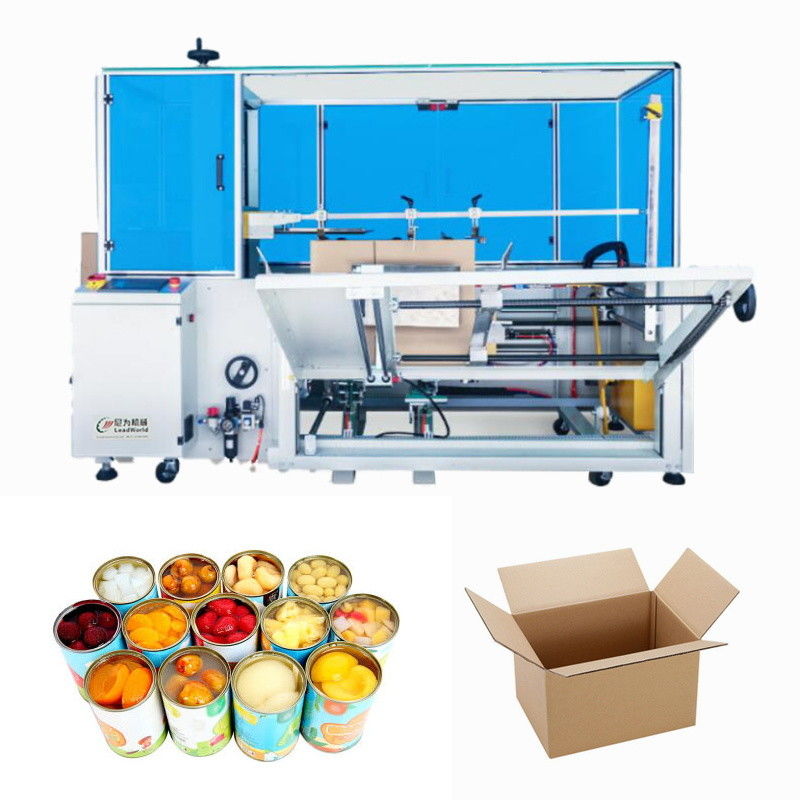

Fully Automatic Case Erector Carton Box Forming Packing Machine

Place of Origin Shanghai, China
Brand Name LeadWorld
Certification CE and according to your market
Product Details
Type:
SEALING MACHINE
Max Speed:
5m/min, 75pcs/min, 18m/min, 100pcs/min, 6m/min, 25pcs/min, 150pcs/min, 12m/min, 80pcs/min, 50pcs/min, 140pcs/min, 40pcs/min, 110pcs/min, 85pcs/min, 20M/MIN, 45pcs/min, 10m/min, 14m/min, 7m/min, 60pcs/min, 16m/min, 90pcs/min, 20pcs/min, 120pcs/min, 30pcs/mi
Condition:
New
Application:
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type:
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Case
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Dimension(L*W*H):
L3120*W1250*H1740mm
Weight:
100 KG
Warranty:
3 Years
Key Selling Points:
Automatic
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Core Components:
PLC, Gear, Gearbox, Motor, Bearing, Engine, Pressure Vessel, Pump
Product Name:
Automatic Case Erector Carton Box Forming Packing Machine
Function:
Industry Packaging Line Carton Erector
Material:
Stainless Steel/Carbon Steel Paint(customized)
Application Fields:
Production Line Secondary Packaging Line
After Warranty Service:
Video Technical Support/ Online Support/Spare Parts
Technical Support:
Field Maintenance And Repair Service
ODM&OEM:
Yes
Speed:
50 Pcs/min Can Be Customized
Port:
Shanghai
Payment & Shipping Terms
Price
Price Negotiable
Packaging Details
According to your need for custom
Product Description
Fully Automatic Case Erector Carton Box Forming Packing Machine 0

Main Features:

1.Vertical storage,cartons can be added at any time without stopping the machine.


2. Suitable for forming and sealing cartons of the same size.

3.Manually adjust to change the carton sizes(finishing in 2-3minutes).

4. Advanced photo electricity induction control system.

5.Rationally designed,the forming,folding and sealing process are accomplished simultaneously.

6.Cutter Safety system to prevent hands form stabbed by the cutter

7.Heavy duty built,both steel and stainless steel types.
Fully Automatic Case Erector Carton Box Forming Packing Machine 1

Leadworld carton erector let cartons placed in the machine's storage board manually, the machine will automatically pull the carton shape, automatically folded the bottom of the page, and automatically sealed. The carton erector is a Semi-auto carton sealing machine that can fold the bottom cover of a carton and seal it; it can be operated separately, economical and high-efficiency, which is an ideal packaging machine


below please check the leadworld carton erecting machine more main technical parameters:
Model LW-EV18 LW-EH30 LW-EH50
Capacity 18pcs/min 30pcs/min 50pcs/min
Carton collecting 100pcs(1000mm) 80pcs(800mm) 80pcs(1000mm)
Carton size L:250-400mm
W:150-350mm
H:100-350mm
L:240-510mm
W:190-400mm
H:120-400mm
L:250-450mm
W:150-400mm
H:100-300mm
Power 220V 1Φ 200W 380V 3Φ 746W 380V 3Φ 746W
Air Consumption 0.6Mpa 450NL/min 0.5Mpa 300NL/min 0.5Mpa 300NL/min
Machine Size L2400*W1200*H1450mm L2372*W1210*H1820mm L3120*W1250*H1740mm
Belt Size 48,60,75mm 2'',2.5'' 2'',2.5''
Fully Automatic Case Erector Carton Box Forming Packing Machine 2
Leadworld is committed to the R&D, design, and production of packaging line machinery at the back end of the production line. Do you need other packaging line machinery? For more information please contact us.
Fully Automatic Case Erector Carton Box Forming Packing Machine 3


Fully Automatic Case Erector Carton Box Forming Packing Machine 4
Leadworld Global can supply solutions for the whole set of automatic production filling, packing, and logistics systems. Contact us to get complete Back End Of packaging line solutions:
Fully Automatic Case Erector Carton Box Forming Packing Machine 5

Packing Line Solutions Case: Carbon Steel Spray Carton Packing Line
Fully Automatic Case Erector Carton Box Forming Packing Machine 6

Packing Line Solutions Case: Stainless Steel Carton Packing Line
Fully Automatic Case Erector Carton Box Forming Packing Machine 7

Packing Line Solutions Case: Carton Packing Line with Weighing and Labeling
Fully Automatic Case Erector Carton Box Forming Packing Machine 8

Packing Line Solutions Case: Carton Packaging Line With Shrink And Strap




FAQ

Q1: What is your company’s main products?

Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)

Q2: What is delivery date of your products?

Delivery date is 30 working days usually most of the machines.

Q3: What is payment term?

Deposit 30% in advance and 70% before shipment the machine.

Q4:Are you manufacturer or trading company?

We are manufacture verified by ALIBABA and we have our own design team.

Q5:Where are you located? Is it convenient to visit you?

We are located in Shanghai. Traffic is very convenient.

Q6:How can you guarantee quality?

1.We have completed working system and procedures and we follow them very strictly.

2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.

3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.

4.We will do strict test running after the machine is finished.

5.Our machines are certified by CE.
