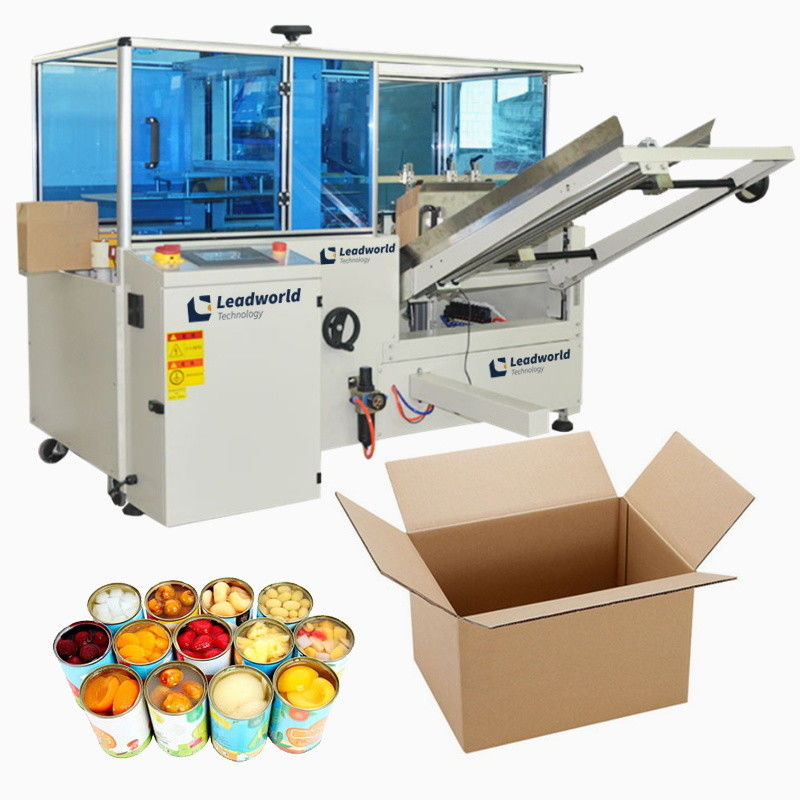

End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector

Place of Origin Shanghai, China
Brand Name LeadWorld
Certification CE and according to your market
Minimum Order 1 SET
Product Details
Type:
SEALING MACHINE
Max Speed:
5m/min, 75pcs/min, 18m/min, 100pcs/min, 6m/min, 25pcs/min, 150pcs/min, 12m/min, 80pcs/min, 50pcs/min, 140pcs/min, 40pcs/min, 110pcs/min, 85pcs/min, 20M/MIN, 45pcs/min, 10m/min, 14m/min, 7m/min, 60pcs/min, 16m/min, 90pcs/min, 20pcs/min, 120pcs/min, 30pcs/mi
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Ro
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type:
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case
Packaging Material:
Plastic, Paper, Metal, Glass, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Dimension(L*W*H):
L3120*W1250*H1740mm
Weight:
100 KG
Warranty:
3 Years
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Core Components:
PLC, Gear, Gearbox, Motor, Bearing, Engine, Pressure Vessel, Pump
Product Name:
Automatic Carton Unpacking Machine Case Erector
Function:
Industry Packaging Line Carton Erector
Material:
Stainless Steel/Carbon Steel Paint(customized)
Application Fields:
Production Line Secondary Packaging Line
After Warranty Service:
Video Technical Support/ Online Support/Spare Parts
Technical Support:
Field Maintenance And Repair Service
Speed:
50 Pcs/min Can Be Customized
Unpacking Type:
Vertical/ Horizontal (Customized)
Port:
Shanghai
Payment & Shipping Terms
Price
Price Negotiable
Packaging Details
According to your need for custom
Product Description
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 0

Main Features:

1.Vertical storage,cartons can be added at any time without stopping the machine.

2. Suitable for forming and sealing cartons of the same size.

3.Manually adjust to change the carton sizes(finishing in 2-3minutes).

4. Advanced photo electricity induction control system.

5.Rationally designed,the forming,folding and sealing process are accomplished simultaneously.

6.Cutter Safety system to prevent hands form stabbed by the cutter

7.Heavy duty built,both steel and stainless steel types.
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 1
Leadworld carton erector let cartons placed in the machine's storage board manually, the machine will automatically pull the carton shape, automatically folded the bottom of the page, and automatically sealed. The carton erector is a Semi-auto carton sealing machine that can fold the bottom cover of a carton and seal it; it can be operated separately, economical and high-efficiency, which is an ideal packaging machine

below please check the leadworld carton erecting machine more main technical parameters:
Model
LW-EV18
LW-EH30
LW-EH50
Capacity
18pcs/min
30pcs/min
50pcs/min
Carton collecting
100pcs(1000mm)
80pcs(800mm)
80pcs(1000mm)
Carton size
L:250-400mm
W:150-350mm
H:100-350mm
L:240-510mm
W:190-400mm
H:120-400mm
L:250-450mm
W:150-400mm
H:100-300mm
Power
220V 1Φ 200W
380V 3Φ 746W
380V 3Φ 746W
Air Consumption
0.6Mpa 450NL/min
0.5Mpa 300NL/min
0.5Mpa 300NL/min
Machine Size
L2400*W1200*H1450mm
L2372*W1210*H1820mm
L3120*W1250*H1740mm
Belt Size
48,60,75mm
2'',2.5''
2'',2.5''
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 2
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 3
Replace The Tape Quickly

1.The carton erector with a protective door.replacing tape conveniently and safely as the door opens.
2.Automatic Buckle Design
3.Upgrade design, A material through the fixed bracket without push carton board automatic buckle, lock material through which is convenient for the user.
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 4
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 5
Folding Front And Rear Board



4.Upgraded mechanism of folding front and rear board, cartons can be formed faster. stable and endurable

5.The carton sealing machine's width and height can be adjusted manually according to the carton specifications, and the operation is simple and convenient.
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 6
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 7
Endurable Conveyor Belt
6.Leadworld vertical carton erector machine uses an endurable conveyor belt with strong friction that can transport steadily.
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 8
7.When the tape is broken or used up, the alarm will make sounds automatically. it convenient for users to change and adjust in time.
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 9

8.Leadworld provides customizable horizontal or vertical cartons trough according to your packaging type.

End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 10



Multiple-Size Cartons
Customize your carton erector machine according to your carton packing size and packer method
Leadworld Conventional Carton Erector Machine:
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 11
Vertical Carton Erector Machine
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 12
Horizontal Carton Erector Machine


End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 13
Leadworld Global can supply solutions for the whole set of automatic production filling, packing, and logistics systems. Contact us to get complete Back End Of packaging line solutions:
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 14

Packing Line Solutions Case: Carbon Steel Spray Carton Packing Line
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 15

Packing Line Solutions Case: Stainless Steel Carton Packing Line
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 16

Packing Line Solutions Case: Carton Packing Line with Weighing and Labeling
End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector 17

Packing Line Solutions Case: Carton Packaging Line With Shrink And Strap

FAQ

Q1: What is your company’s main products?

Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)

Q2: What is delivery date of your products?

Delivery date is 30 working days usually most of the machines.

Q3: What is payment term?

Deposit 30% in advance and 70% before shipment the machine.

Q4:Are you manufacturer or trading company?

We are manufacture verified by ALIBABA and we have our own design team.

Q5:Where are you located? Is it convenient to visit you?

We are located in Shanghai. Traffic is very convenient.

Q6:How can you guarantee quality?

1.We have completed working system and procedures and we follow them very strictly.

2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.

3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.

4.We will do strict test running after the machine is finished.

5.Our machines are certified by CE.

Q7:Can you design the machine according to our requirements?

Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.

Q8:Can you offer overseas technical support?

Yes. We can send engineer to your company to set the machine and train your worker if needed.
