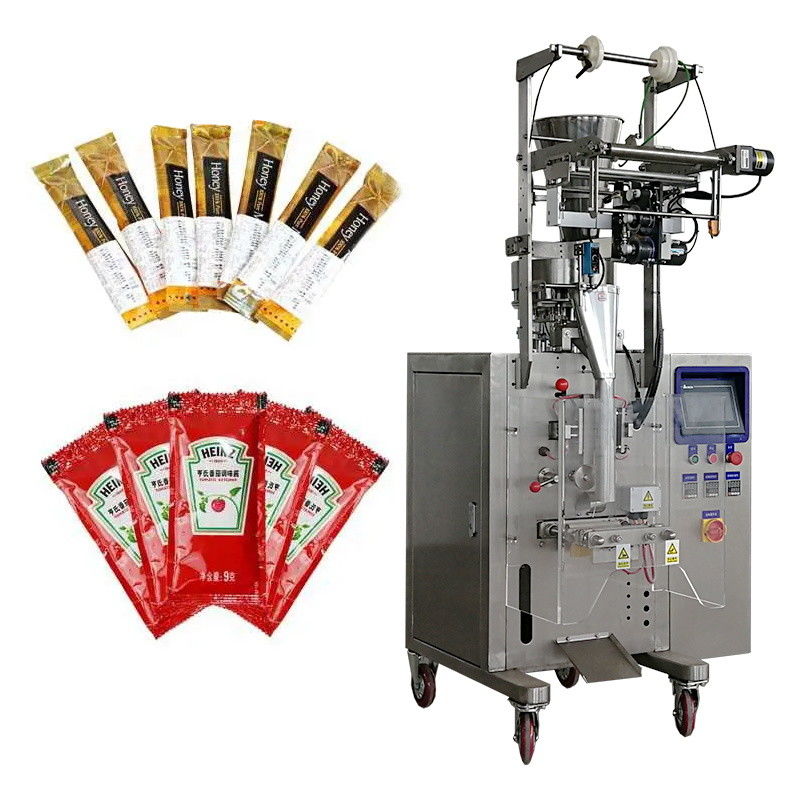

Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine

Place of Origin Shanghai, China
Brand Name Leadworld
Product Details
Type:
Multi-Function Packaging Machine, Multi-Function Packaging Machine
Production Capacity:
5bag/min, 20bag/min, 7bag/min, 6bag/min, 40bag/min, 9bag/min, 25bag/min, 8bag/min, 15bag/min, 10bag/min, 50bag/min, 30bag/min
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Weight (KG):
500
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lank
Condition:
New
Function:
FILLING, Wrapping, Capping, Sealing
Application:
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco
Packaging Type:
Stand-up Pouch, Bags, Film, Pouch
Packaging Material:
Plastic, Paper, Metal
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V 50Hz,3PH (Customized)
Dimension(L*W*H):
2800*1500*1900mm/can Be Customized
Warranty:
3 Years
Key Selling Points:
High-accuracy
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
3 Years
Core Components:
Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
Product Name:
Automatic Packing Machine
Main Function:
Weighing Forming Filling Sealing
Packing Speed:
30-80bags/min
Material:
Stainless Steel 304/316
Bag Type:
3 Sides Seal/Back Seal
After-sales Service Provided:
Online Support
Usage:
Bag Making Filling Sealing
Keyword:
Packaging Machinery Equipment
Port:
Shanghai
Payment & Shipping Terms
Price
$2,950.00/sets >=1 sets
Packaging Details
Standard export package with PVC film protect first and then load in wooden case or plywoodcase.
The upward mark will be posted on the wooden case.Or can be as you request.
Supply Ability
10 Set/Sets per Month
Product Description
Product Show
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 0
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 1
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 2
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 3
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 4
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 5
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 6
Optional Products
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 7
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 8
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 9
Platform
Elevator
Model
LWT-2Platform

Model
LWT-300
Maximum Loading Weight
2T-3T

Convey speed
3750mm/min
Equipment Size
2000mm*2000mm*2000mm

Power
750W
Net Weight
350kg

Convey Measure
4T/H(Rice)



Overall size
3000(L)×650(W)×3750(H)mm
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 10
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 11
Collecting table
Bag former
Model
LWT-C
Packing machine has one bag forming tube. If the bag width is fixed, no need to buy extra tube. If you have different bag widths,
you have to buy extra tubes. For example, you have 3 bag widths, you have to buy extra two tubes.
If only the bag length change, no need to buy extra bag forming tube. You can modify the parameter on the touch screen.
Convey speed
Speed can be changed(fast or slow depends on your choice)
Diameter
1.2m
Surface
Concave
Power
220V/370W/50HZ
Weight of machine
100KG
Packaging size
1300mm(L)*380mm(W)*1300mm(H)
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 12
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 13
Detailed instruction: 1.Conveyor body part: 1.1 Main body side chain plate:Plate thickness:δ2.0mm Material:SUS304. When produced according to the actual size. 1.2 Roller:Material SUS304,diameter is based one the actual load,cooperate with the plus or minus tolerance. 1.3 Riding wheel:Material Nylon processing molding,diameter is based one the actual load,cooperate with the plus or minus tolerance. 1.4 Bun foot:Nylon injection molding,Cooperate with stainless steel adjusting screw M16. 1.5 Guardrail part adopts big Caluminum trackCooperate with wear-resisting sheath; 1.6 Connecting plate:plate wicknessδ3.0mm Material:Stainless steel bending forming; 1.7 Accessories:Mounted Bearings、kinds of SUS304 screws,etc. 2.Conveying carrier part 2.1 Belt length
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 14
Leadworld Automatic tomato paste Plastic Bag sachet pouch Filling Machine packing machine 15

Explanation of the design plan

According to the product information described by the customer, our company recommends the use of a stainless steel computerized automatic double-layer water bath/steam sterilizer. ⚫ The hot water is stored in the upper tank, which can be quickly filled during sterilization, the product heats up quickly, the product is completely immersed in the sterilization water, the temperature penetrates into the product in all directions, and the product matures quickly. ⚫ The design of this product is based on canned and flexible packaging sterilization, excluding glass bottles, the heating method is direct heating by a heating tube, the sterilization method is a circulating water bath, and the cooling method is The formula is direct cooling. ⚫ The control method is fully automatic computer control, the operator is only responsible for entering and leaving the sterilization material, all sterilization processes are automatically controlled, and can also be manually controlled. ⚫ The quality of the equipment is stable, durable, and the optimally designed sealing structure is more durable and easy to maintain; easy to operate and easy to install, according to ergonomic The design makes the machine safer and more convenient.
project
Content
Retort inner diameter/cylinder length/volume
1200mm /3600mm /about 4.5m3
Effective use size of sterilizer (length/width/volume)
3600mm /800mm /800mm
design pressure
0.35Mpa
maximum working pressure
0.3Mpa
Pressure test pressure
0.44Mpa
maximum operating temperature
143℃
total installed power
Water pump 7.5kw,cycle pump 5.5kw,exchange use
voltage
380V
Pot body material
SUS30408
pot body wall thickness
5mm
Footprint (L/W/H)
About 5500mm×2200mm×3100mm
