Auto Thermoforming Vacuum Packing Machine Complete Sachet Packaging Line

Place of Origin Shang Hai
Brand Name LeadWorld
Certification CE
Minimum Order 1 SET
Payment Terms According to your needs
Product Details

Power Consumption:
Stainless Steel
Vacuum Degree:
Product Name:
Vacuum Packing Machine
Control System:
High Light:

Auto Thermoforming Vacuum Packing Machine


Complete sachet packaging line


Packaging Lines for Sachets

Payment & Shipping Terms
Price Negotiable
Packaging Details
Film bag& plastic cartons& wooden cartons
Delivery Time
45 days
Product Description

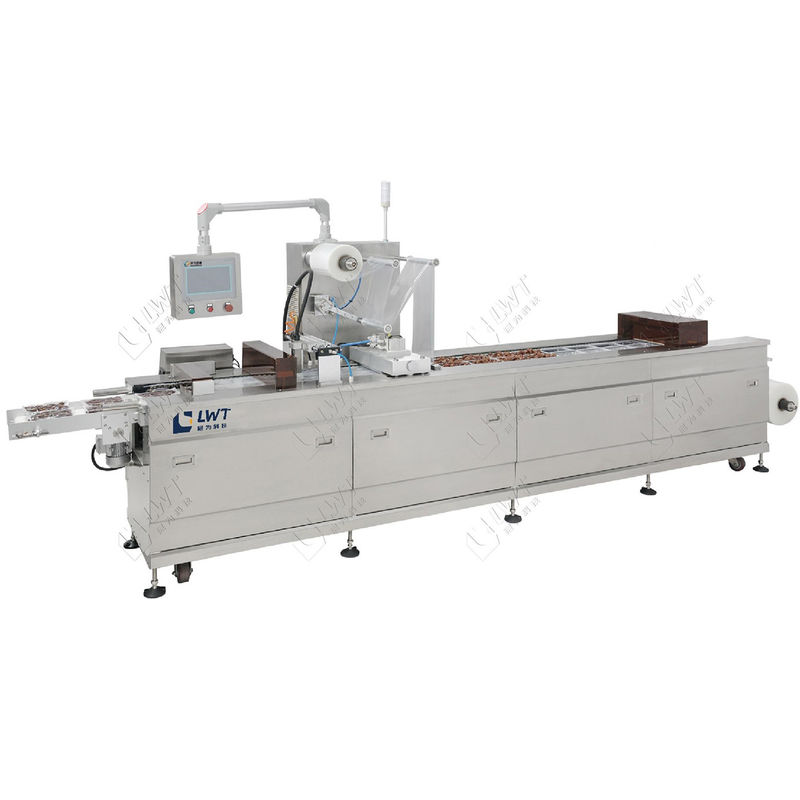

Auto Thermoforming & Vacuum Packing Machine

Product Description:

Auto thermoforming & vacuum packing machine adopts stretchable and thermoplastic soft film or hard sheet to form container,and vacuuming or MAP sealing and cutting after filling.It does not need to customize the packaging box in advance, and integrates the functions of film stretching, filing materials, vacuuming and air conditioning, heat sealing and has the characteristics of convenience, low energy consumption,short cycle and high efficiency.

Auto Thermoforming Vacuum Packing Machine Complete Sachet Packaging Line 0


  • Machine is made of 304 staintess steel,easy to clean.
  • With German Siemens programmable controller(PLC)and touch screen, simple to use, easy to operate.
  • The machine equipped with orginal BUSCH vacuum pump which is imported from Germany. lt quarantees machine performance stable. High vacuum, stable quality, durable and reliable.
  • Strong adaptability for the packacing materials and packacing specifications, Can be arbitrarily selected within the specified range.
  • Japanese Panasonic servo system driver, running steady and rapid and accurate.
  • Only need to change mould. Can be used to diferent specifications of products on one set of machine.
  • On the basis of vacuum extraction, can input all kinds of mixing gas, can extend fresh time.
  • Corner waste recvcling system for environmental sanitation.Auto Thermoforming Vacuum Packing Machine Complete Sachet Packaging Line 1

Technical Parameters:

Packing Speed 4-8Cycles/Min 4-8Cycles/Min 4-8Cycles/Min
Bottom Film Thickness ≤0.8mm ≤0.8mm ≤ 0.8mm
Bottom Film Width 322mm 422mm 522mm
Top Film Width 293mm 393mm 493mm
Power Supply AC 380V50HZ(3Phase) AC 380V50HZ(3Phase) AC 380V50HZ(3Phase)
Air Consumption 500L/Min 550L/Min 650L/Min
Air Supply ≥0.6MPa ≥0.6MPa ≥0.6MPa
Power 10KW 12KW 15KW
Dimension 4500*1000*1700mm 5200*1100*1760mm 6000*1200*1760mm
Weight 1300kg 1600kg 2200kg



Vacuum packing machine is the ideal solution for various products requiring a high degree of vacuum and a long shelf life. It is widely used in the food, pharmaceutical, and medical industries. Vacuum packing machine is an automated thermoforming and vacuum packing machine that can achieve a vacuum degree of 0.1MPa, a voltage of 220V, a capacity of 2-3 bags per minute and a power consumption of 1.5KW. With its excellent performance, it can effectively reduce the oxygen content and preserve the freshness and flavor of all kinds of food, medicines and other products. It can also protect sensitive products from dust, moisture, and other external factors, ensuring the product quality and shelf life. Moreover, the Vacuum packing machine has a compact structure and small size, which makes it easy to install and transport.

The Vacuum packing machine is a reliable and efficient equipment for vacuum packing various products in the industries of food, pharmaceutical, and medical. It can effectively prevent the oxidation of food, reduce the loss of nutrients, keep the product fresh and extend its shelf life. In the pharmaceutical and medical industries, it can be used to store and protect sensitive products from dust, moisture and other external factors. With its advanced technology and powerful performance, the Vacuum packing machine can provide a safe and reliable packaging environment for all kinds of products.

Auto Thermoforming Vacuum Packing Machine Complete Sachet Packaging Line 2

Support and Services:

Vacuum Packing Machine Technical Support and Service

We offer a wide range of technical support and services for our Vacuum Packing Machine. Our team of experienced technicians can provide on-site support, remote support, and telephone support.

On-site support includes:

  • Installation and setup of the machine
  • Troubleshooting, repairs, and maintenance
  • Training on the use of the machine
