Automatic Tuna Filling Machine with PLC Control 20-40 Bottles/Min
  • Automatic Tuna Filling Machine with PLC Control 20-40 Bottles/Min
  • Automatic Tuna Filling Machine with PLC Control 20-40 Bottles/Min
  • Automatic Tuna Filling Machine with PLC Control 20-40 Bottles/Min
  • Automatic Tuna Filling Machine with PLC Control 20-40 Bottles/Min
  • Automatic Tuna Filling Machine with PLC Control 20-40 Bottles/Min
  • Automatic Tuna Filling Machine with PLC Control 20-40 Bottles/Min
  • Automatic Tuna Filling Machine with PLC Control 20-40 Bottles/Min

Automatic Tuna Filling Machine with PLC Control 20-40 Bottles/Min

Place of Origin Shang Hai
Brand Name LWT
Certification CE
Model Number Sardine Canning Multi Head Scale Filling Packing Machine
Minimum Order 1 SET
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram,and According to your needs
Product Details
Control System:
PLC
Filling Accuracy:
±2-10g
Filling Capacity:
50-2000g
Filling Speed:
40-50 Bottles/min
Noise:
≤75dB
Power Consumption:
1.5KW
Power Supply:
380V/50Hz
Product Name:
Automatic Shredded Tuna Filling System
Highlight:

PLC controlled tuna filling machine

,

automatic bottle filling machine 20-40/min

,

tuna filling machine with warranty

Payment & Shipping Terms
Price
Price Negotiable
Packaging Details
Film bag& plastic cartons& wooden cartons
Delivery Time
45 days
Product Description
Automatic Shredded Tuna Filling System
Product Specifications
Attribute Value
Air Consumption 0.3m³/min
Air Pressure 0.4-0.6MPa
Control System PLC
Dimension 1300*800*1700mm
Filling Accuracy ±1%
Filling Capacity 50-5000ml
Filling Head 4-8 Heads
Filling Speed 20-40 bottles/min
Noise ≤75dB
Power Consumption 1.5KW
Power Supply 220V/50Hz

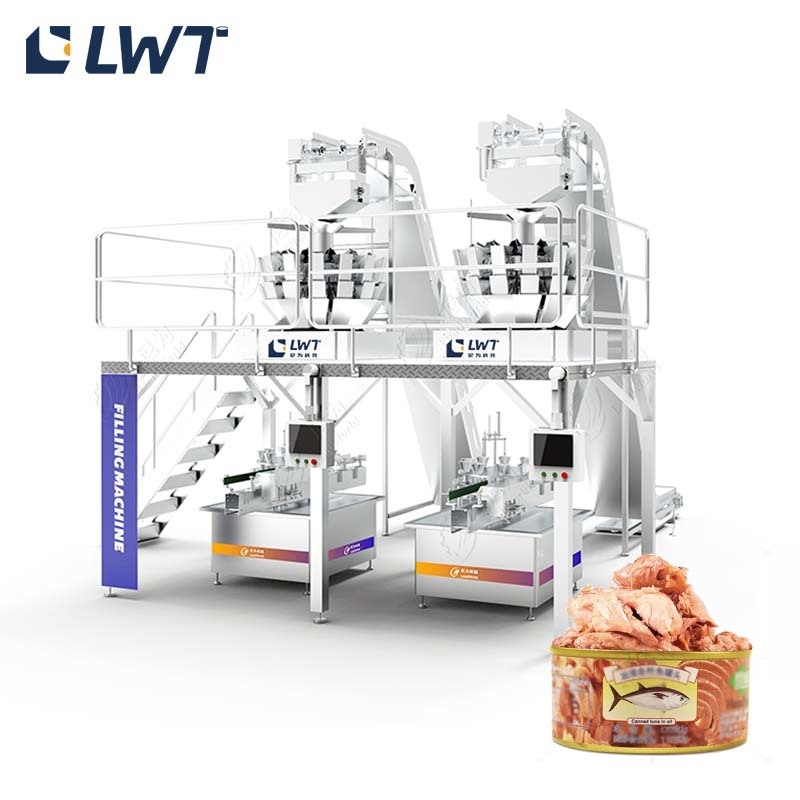

Equipment Overview

This fully automatic filling system is specifically designed for shredded tuna and other aquatic products. Constructed entirely from SUS304 stainless steel, it features a PLC intelligent control system that automates the entire process from precise metering of solid raw materials to aseptic filling and sealed packaging. Ideal for large-scale production of tinplate cans and glass jars, it meets stringent food-grade hygiene standards.

Automatic Tuna Filling Machine with PLC Control 20-40 Bottles/Min 0
Core Functions
  • Fully automated process with dynamic metering (±1g accuracy), directional feeding, filling, and finished product conveying
  • Integrated photoelectric counting system for real-time production data
  • Premium components including world-renowned brands and SUS304 stainless steel construction for reduced maintenance costs and downtime
  • High-end touch screen interface with storage for multiple product parameters
  • Comprehensive fault display system for prompt troubleshooting
Automatic Tuna Filling Machine with PLC Control 20-40 Bottles/Min 1
Technical Parameters
Model LW-FWS50
Capacity 2400-3000bph (Customized)
Measuring range 50g-2000g (Customized)
Measurement accuracy 2-10g
IP Grade more than IP55
Why Choose Our Solution

We provide complete canned tuna production line solutions, from raw material processing and cleaning to filling, sealing, and post-packaging. Our services include comprehensive plant planning, design, and customized solutions.

Technical Strength: 20,000㎡ specialized factory, 30+ patent certificates, 30+ engineers, equipment exported to 100+ countries
Production Expertise: 16 years of manufacturing experience, 100+ equipment types, annual export value of 80 million
Support Services: 7*24 customer service, 40+ field engineers for installation and maintenance
