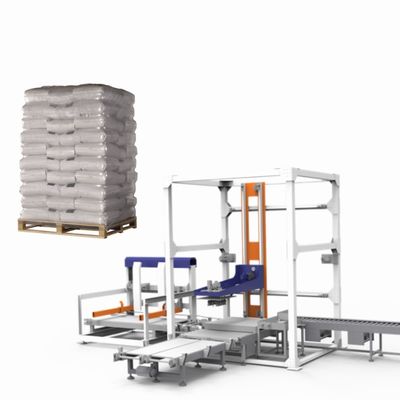

Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer

Place of Origin Shanghai, China
Brand Name LeardWorld
Product Details
Type:
Packaging Line
Condition:
New
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Dimension(L*W*H):
2620*2440*3500mm
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Capacity:
5-10Carton/min
Max Load Per Case:
25KG
Max Load Per Tray:
1500KG
Max Stack H:
1900mm
Tray Max Size:
1200*1200mm
Air Consumption:
210L/min
After Warranty Service:
Video Technical Support
Design Service:
Whole Production Line Planning And Design
Port:
Shanghai
Highlight:

Packing Servo Palletising Machine

,

Custom Servo Palletising Machine

,

Cement Bag Carton Palletizer

Payment & Shipping Terms
Price
Price Negotiable
Packaging Details
Standard export package with PVC film protect first and then load in wooden case or plywood case.
The upward mark will be posted on the wooden case. Or can be as you request
Supply Ability
500 Set/Sets per Year According to your packaging line to design
Product Description

Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer​

The Palletizing machine is used to stack the cartons or barrels loaded into containers on pallets (wooden) according to a certain arrangement for automatic stacking, which can be stacked in multiple layers and then pushed out, so as to facilitate the transportation of forklifts to the warehouse for storage. The equipment adopts PLC + touch screen control to realize intelligent operation management, simple operation, easy maintenance, and automatic fault alarm. Greatly reduce labor personnel and labor intensity.



Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer 0
Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer 1
Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer 2

LW-PSS10A
LW-PSS10D
LW-PSG30
LW-PSG60
Capacity
5-12cartons/min
5-10cartons/min
20-30cartons/min
40-60cartons/min
Pallet size
L1200x W1200 x 150(mm)
L1200x W1200x 150(mm)
L1200x W1200x 150(mm)
L1200xW1200x150(mm)
Stacking way
Servo
Servo
Gantry
Gantry
Stacking H
≤1800mm
≤1900mm
≤2000mm
≤2000mm
Equipmen size
3800*1000*1400mm
2620 * 2440 x 3500mm
L8400 x W4700xH3700mm
L8400xW5300xH3700mm
Power
380V 7KW
380v/3P 7.2kw
380v/3P 11kw
380v/3P 12kw
Air consumption
0.8m3/min
210L/min 6kg/cm²
110L/min 6kg/cm²
180L/min 6kg/cm²
Conveyor H
650mm
650mm
850mm
850mm
Palletconveyor H
300mm
650mm
650mm
650mm
Max weight
1000KG
1500KG
1500KG
1500KG

Features:

1. Automatic Palletizing of cartons and plastic boxes;

2. The main lifting table is driven by a servo motor, and the operation is flexible and smooth;

3. The Machine structure: The main part of the machine is composed of the double-speed belt, pallet stack area, box-sorting area, Automatic Pallet supply system, hoisting machine, outbound chain conveyor system, etc.

4. The Palletizing size and height can be adjusted freely;

5. Siemens PLC control system, mobile man-machine interface, and automatic fault display are adopted;

6. It can be used in food, beverage, daily chemical, and other industries;



Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer 3

Servo Palletizing Device


Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer 4
Carton Palletizer Area


Why choose us

Technical strength: 20000㎡ specialized and innovative super factory, 30+ patent certificates, 30+ engineers, production line machines covering more than 80+ countries around the world

Production and export strength: 15 years of machinery manufacturing experience, 100+ single-machine equipment, providing comprehensive production line whole factory planning, annual export value of 80 million

Installation and after-sales strength: 7*24 hours customer service, 40+ external engineers provide door-to-door installation and door-to-door maintenance services







Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer 5

Shanghai LWT Intelligent Technology Co., Ltd is specialized in researching and manufacturing various whole set of packing production systems, such as Canned food production line, carton packing and palletizer system, automatic filling system, vacuum packing system, different kinds of conveyor system, labeling system and so on, our specialized engineer team will offer whole plant planning.
Leadworld is a industrial and trade integrated enterprise with design, production, customization and installation capabilities, with import and export rights.
We are an outstanding enterprise recognized by China canning association and vice President of canning association.
Our company devote to digesting and absorbing advanced science of processing and automatic equipment.
Welcome to visit us at any time, our equipment is ready to go, waiting at any time.





Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer 6





Pre-sales:
According to client-specific machinery or automatic product line requirement, supply reasonable machine sketch map, quotation, and similar

video for client ref first.

Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer 7

During Sales:

1) Depends on the client's need to custom base on the standard machine.
2) Repeat 20 ongoing hours testing equipment
operation stability.
3) Execute GMP certification for the equipment and materials used in the production process requirement and specification strictly.

Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer 8

After-Sale:
1. During the epidemic, we support senior engineers to provide one-by-one video guidance; And other times, we will assign professional engineers to customer companies for installation or maintenance services according to customer needs;
2. Supply systematic operation training for client workers.
3. Guarantees all equipment (except human factors) within one year, lifetime maintenance services.
4. After the client use the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years.
5. If quality problems arise, the supplier provides technical support and timely supply wearing parts.

Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer 9

Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer 10









FAQ

Q1: What is your company’s main products?

Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)

Q2: What is delivery date of your products?

Delivery date is 30 working days usually most of the machines.

Q3: What is payment term?

Deposit 30% in advance and 70% before shipment the machine.

Q4:Are you manufacturer or trading company?

We are manufacture verified by ALIBABA and we have our own design team.

Q5:Where are you located? Is it convenient to visit you?

We are located in Shanghai. Traffic is very convenient.

Q6:How can you guarantee quality?

1.We have completed working system and procedures and we follow them very strictly.

2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.

3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.

4.We will do strict test running after the machine is finished.

5.Our machines are certified by CE.

Q7:Can you design the machine according to our requirements?

Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.

Q8:Can you offer overseas technical support?

Yes. We can send engineer to your company to set the machine and train your worker if needed.
