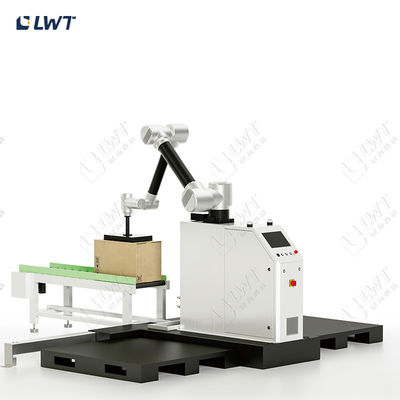

Robot Palletizer For Cartons Palletizing Robotic Palletizing System Move Robot
The world has entered the era ofindustrial 4.0 intelligent factory, As the largest industrial robot application market in the world.the palletizing robot industry develops rapidly, Efiective combination and interaction among robots, human beings and working enyironment has become a trend in the fiuture, and will be a great boost to the development of manufacturing industry in China.
Collaborative palletization redefines the concept of“'ease ofuse”:
Installation and re-adjustment can be completed within 2 hours
New path set-up within 5 minutes.
8-10 boxes can be stacked per minute.
Up to 800 stacking paths can be set.
Maximum traysize1300mmx1200mm
Two products can be stacked simultaneously.
With label orientation function.
Advantages of Collaborative Palletizer
Simple programming
Visual programming is simple and efficient, and ordinary employees can easily manipulate robots without having to master the programming language.The programming mode can be learned in half an hour and simple programming can be completed in 1 hour.
Safety and stability
Industrial grade force-sensorwith high reliability and safety;Support 10-level collisiondetection and sensor safetydetection;
without loss of safety function incase of single fault;
Flexible deployment
Integrated design, light and flexible, small footprint area;Workstation deployment of new task setting is simple,quick and efficient;
Wide applications
Widely used in food,pharmaceutics, 3C,dailychemistry,e-commerce andother industries;
Flexible Production
With fast switching of various functional scenarios,flexible production can be realized by human-machine cooperation, dual-computer cooperation and multi-computer cooperation.
Economic and practical
Average recovery of investment within 6-12months;
Robot palletizer technical parameters
| Model |
LW-PR12 |
LW-PR12 |
| Load |
12kg |
12kg |
| Working radius |
1900mm |
1900mm |
| Horizontal distance (Specitication of cardboard) |
Palletizing robot horizontal coverage radius: 1900mm |
Maximum allowable application size of pallets: 1400*1400mm |
| Vertical distance |
Fixed HI=1700mm |
Lift type H2=2400mm |
| Stacking speed |
≤ 8 pcs/min |
≤8 pcs/min |
| Repeated positioning accuracy |
土0.04mm |
士0.04mm |
| Communication mode |
TCP/IP |
TCP/IP |
| Level Ip |
lp54 |
lp54 |
| Temperature Range |
0-55°C |
0-55℃ |
| Maximun Power Dissipation |
2.5kw |
3.3kw |
| Power supply from electric box |
220v/50HZ |
220v/50HZ |
| Whole machine weight |
≈260kg |
≈300kg |
| Floor area |
1505*1716mm |
1505*1716mm |
·
