Robot Palletizer For Cartons Palletizing Robotic Palletizing System Move Robot

Place of Origin Shang Hai
Brand Name LeadWorld
Certification CE
Model Number LW-PR12
Minimum Order 1 SET
Payment Terms According to your needs
Product Details
Product Name:
Robot Palletizing
Beverage, Machinery & Hardware, Medical, Food, Chemical, Commodity, Textiles, Cigarettes, Tobacco, APPAREL
Automatic Grade:
Driven Type:
AC 220V
3 Years
Machine Type:
Packing Line Solution
Stacking Speed:
≤ 8 Pcs/min
High Light:

Electric Stacking Palletizer Machine


Fully Automatic Carton Palletizer


380V Carton Robot Palletizer

Payment & Shipping Terms
Price Negotiable
Packaging Details
Film bag& plastic cartons& wooden cartons
Product Description

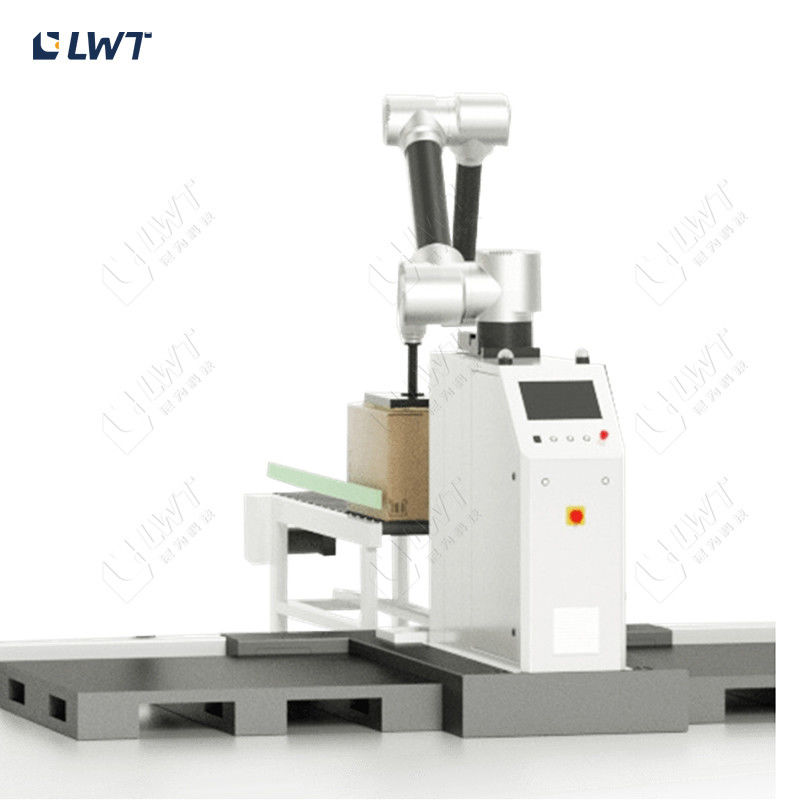

Robot Palletizer For Cartons Palletizing Robotic Palletizing System Move Robot


The world has entered the era ofindustrial 4.0 intelligent factory, As the largest industrial robot application market in the world.the palletizing robot industry develops rapidly, Efiective combination and interaction among robots, human beings and working enyironment has become a trend in the fiuture, and will be a great boost to the development of manufacturing industry in China.

Robot Palletizer For Cartons Palletizing Robotic Palletizing System Move Robot 0


Collaborative palletization redefines the concept of“'ease ofuse”:

Installation and re-adjustment can be completed within 2 hours

New path set-up within 5 minutes.

8-10 boxes can be stacked per minute.

Up to 800 stacking paths can be set.

Maximum traysize1300mmx1200mm

Two products can be stacked simultaneously.

With label orientation function.

Robot Palletizer For Cartons Palletizing Robotic Palletizing System Move Robot 1


Advantages of Collaborative Palletizer

Simple programming

Visual programming is simple and efficient, and ordinary employees can easily manipulate robots without having to master the programming language.The programming mode can be learned in half an hour and simple programming can be completed in 1 hour.


Safety and stability

Industrial grade force-sensorwith high reliability and safety;Support 10-level collisiondetection and sensor safetydetection;

without loss of safety function incase of single fault;


Flexible deployment

Integrated design, light and flexible, small footprint area;Workstation deployment of new task setting is simple,quick and efficient;


Wide applications

Widely used in food,pharmaceutics, 3C,dailychemistry,e-commerce andother industries;


Flexible Production

With fast switching of various functional scenarios,flexible production can be realized by human-machine cooperation, dual-computer cooperation and multi-computer cooperation.


Economic and practical

Average recovery of investment within 6-12months;

Robot Palletizer For Cartons Palletizing Robotic Palletizing System Move Robot 2


Robot palletizer technical parameters


Model LW-PR12 LW-PR12
Load 12kg 12kg
Working radius 1900mm 1900mm
Horizontal distance (Specitication of cardboard) Palletizing robot horizontal coverage radius: 1900mm Maximum allowable application size of pallets: 1400*1400mm
Vertical distance Fixed HI=1700mm Lift type H2=2400mm
Stacking speed ≤ 8 pcs/min ≤8 pcs/min
Repeated positioning accuracy 土0.04mm 士0.04mm
Communication mode TCP/IP TCP/IP
Level Ip lp54 lp54
Temperature Range 0-55°C 0-55℃
Maximun Power Dissipation 2.5kw 3.3kw
Power supply from electric box 220v/50HZ 220v/50HZ
Whole machine weight ≈260kg ≈300kg
Floor area 1505*1716mm 1505*1716mm



Q1: What is your company’s main products?

Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)

Q2: What is delivery date of your products?

Delivery date is 30 working days usually most of the machines.

Q3: What is payment term?

Deposit 30% in advance and 70% before shipment the machine.

Q4:Are you manufacturer or trading company?

We are manufacture verified by ALIBABA and we have our own design team.

Q5:Where are you located? Is it convenient to visit you?

We are located in Shanghai. Traffic is very convenient.

Q6:How can you guarantee quality?

1.We have completed working system and procedures and we follow them very strictly.

2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.

3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.

4.We will do strict test running after the machine is finished.

5.Our machines are certified by CE.

Q7:Can you design the machine according to our requirements?

Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.

Q8:Can you offer overseas technical support?

Yes. We can send engineer to your company to set the machine and train your worker if needed.
