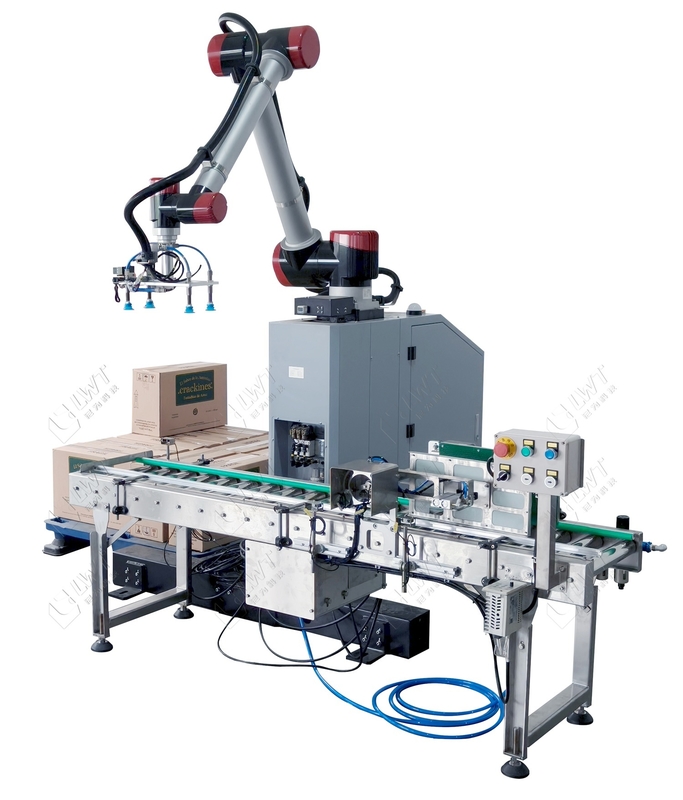

Lwt Cosmetic Collaborative Palletizer Robot Automatic Drum & Barrel Stacking for Raw Material Handling
Product Specifications
| Attribute |
Value |
| Application |
Food, Beverage, Commodity, Chemical, Machinery & Hardware, Cigarettes, Tobacco |
| Packaging Type |
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, case |
| Packaging Material |
Plastic, Paper, Metal, Glass, Wood |
| Automatic Grade |
Automatic |
| Driven Type |
Electric |
| Voltage |
200-240V |
| Dimension (L*W*H) |
Can be customized |
| Warranty |
3 years |
| Machinery Test Report |
Provided |
| Video Outgoing-Inspection |
Provided |
| Core Components |
Bearing, motor, Pump, Gear, PLC, Other, Pressure vessel, Engine, Gearbox |
| Weight (KG) |
500 |
| Speed |
12PPM |
| Max Load |
30KG |
| Power Supply |
200-240V 50/60Hz |
| Air Consumption |
0-55℃ |
| Material |
Aluminum |
| Specification |
3950*1724mm |
| Pallet Size |
1250*1250mm |
| After-sales Service |
Engineers available to service machinery overseas |
Product Description
The palletizing robot is an organic combination of machinery and computer programs that provides higher production efficiency for modern production. Stacking machines are widely used in the stacking industry. The palletizing robot greatly saves labor and space while operating flexibly and accurately with fast, efficient, and stable performance.
The palletizing robot system adopts a patented coordinate robot that occupies a flexible and compact installation space. This innovative design makes it possible to build an efficient and energy-saving fully automatic block molding machine production line within a small footprint.
Technical Specifications
| Item No. |
LW-RP165 |
LW-RP210 |
| Palletizing Height |
1650mm (Including Pallet) |
2100mm (Including Pallet) |
| Speed |
12PPM |
12PPM |
| Max Load |
30KG |
30KG |
| Power Supply |
200-240V 50/60Hz |
200-240V 50/60Hz |
| Air Consumption |
400NL/MIN |
400NL/MIN |
| Temperature Range |
0-55ºC |
0-55ºC |
| Base Style |
Installation Base |
Lifting Base |
| Material |
Aluminum |
Aluminum |
| Communication Type |
EtherCAT |
EtherCAT |
| Control/PLC |
Keba |
Keba |
| HMI |
Keba |
Keba |
| Reducer |
Nidec |
Nidec |
| Specification |
3950*1724mm |
3950*1724mm |
| Pallet Working Radius |
1600mm |
1600mm |
| Pallet Size |
1250*1250mm |
1250*1250mm |
| Positioning Accuracy |
±0.04mm |
±0.04mm |
| Safety |
Safety Fence, Light Curtain (Optional) |
Safety Fence, Light Curtain (Optional) |
Key Features
- Installation and re-adjustment can be completed within 2 hours
- New path set-up within 5 minutes
- 8-10 boxes can be stacked per minute
- Up to 800 stacking paths can be set
- Maximum tray size 1300mm x 1200mm
- Two products can be stacked simultaneously
- Includes label orientation function
Product Advantages
Simple Programming
Visual programming is simple and efficient, allowing ordinary employees to easily manipulate robots without programming knowledge. The programming mode can be learned in half an hour with simple programming completed in 1 hour.
Safety and Stability
Industrial-grade force-sensor with high reliability and safety; supports 10-level collision detection and sensor safety detection; maintains safety function in case of single fault.
Flexible Deployment
Integrated design is light and flexible with a small footprint. Workstation deployment allows for simple, quick, and efficient new task setting.
Flexible Production
Fast switching of various functional scenarios enables flexible production through human-machine cooperation, dual-computer cooperation, and multi-computer cooperation.
Company Profile
Shanghai Leadworld Machinery Technology Co., Ltd specializes in researching and manufacturing various complete packing production systems, including canned food production lines, carton packing and palletizer systems, automatic filling systems, vacuum packing systems, conveyor systems, and labeling systems. Our specialized engineer team offers complete plant planning solutions.
Leadworld is an industrial and trade integrated enterprise with design, production, customization, and installation capabilities, holding import and export rights. We are recognized by the China Canning Association and serve as Vice President of the Canning Association.
Our company is committed to digesting and absorbing advanced processing science and automatic equipment technology. We welcome visitors at any time - our equipment is ready for demonstration.
Our Services
Pre-sales:
We provide reasonable machine sketches, quotations, and reference videos based on client-specific machinery or automatic product line requirements.
During Sales:
- Customize standard machines based on client needs
- Conduct 20-hour continuous testing for equipment operation stability
- Strictly execute GMP certification for equipment and materials
After-Sale:
- During epidemics, we provide video guidance; otherwise, we send engineers for installation/maintenance
- Provide systematic operation training for client workers
- One-year guarantee (except human factors) with lifetime maintenance
- Offer refurbishment programs to extend machine service life by 3-4 years
- Provide technical support and timely supply of wearing parts for quality issues
Frequently Asked Questions
Q. Are you a manufacturer or trading company?
A: Yes, We are a manufacturer verified by ALIBABA with our own R&D and Production team.
Q: What are your company's main products?
A: All production packaging line end-of-line and related packaging machinery. If this isn't the machine you want, please visit our other products.
Q. Where are you located? Is it convenient to visit you?
A: Yes, We are located in Shanghai with convenient transportation. Welcome to our factory anytime.
Q: How can you guarantee the quality?
A: We have strict working systems, experienced workers, high-quality components from world-famous companies, thorough testing, and usually CE certification.
Q: Can you design the machine according to our requirements?
A: Yes. We can customize machines according to technical drawings or develop new machines based on requirements.
Q: Can you offer overseas technical support?
A: Yes. We can send engineers to set up machines and train workers if needed.
Q: Why do customers trust and choose us?
A: We are a factory with stock, fast delivery, senior engineers, competitive prices, strict quality control, over 10 years customization experience, test reports, excellent after-sales service, and advanced equipment.
