Leadworld Canned Fruit Production Line For Canning Pineapples

Place of Origin Shanghai, China
Brand Name Leadworld
Product Details
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:
New
Type:
Canned Orange Processing Line
Voltage:
220v/380v 3P
Power:
10kw
Dimension(L*W*H):
Customized
Year:
OEM
Warranty:
3 Years
Name:
Automatic Litchi Pineapple Fruit Canned Production Line
Function:
Washing, Peeling, Slicing, Canning
Application:
Orange,Pineapple, Tomato, Strawberry, Etc.
Feature:
Labor-saving, Easy Operation
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Machine Type:
Filling And Packing Mahcine
Material:
304/316 Stainless Steel
Port:
Shanghai Port
Highlight:

Leadworld Canned Fruit Production Line

,

Canned Fruit Production Line

,

Pineapples Canned Fruit Production Line

Payment & Shipping Terms
Price
Price Negotiable
Packaging Details
Standard export package with PVC film protect first and then load in wooden case or plywoodcase.
The upward mark will be posted on the wooden case.Or can be as you request.
Supply Ability
1 Set/Sets per Month
Product Description
Leadworld Canned Fruit Production Line For Canning Pineapples

LWT provides you with pineapple canning production lines and other canning equipment for fruits, meat, fish, mushrooms, beans, etc. The equipment is exported to 90 countries at home and abroad and has a wealth of successful cases.

Canned Fruit Production Line For Canning Pineapples Working process

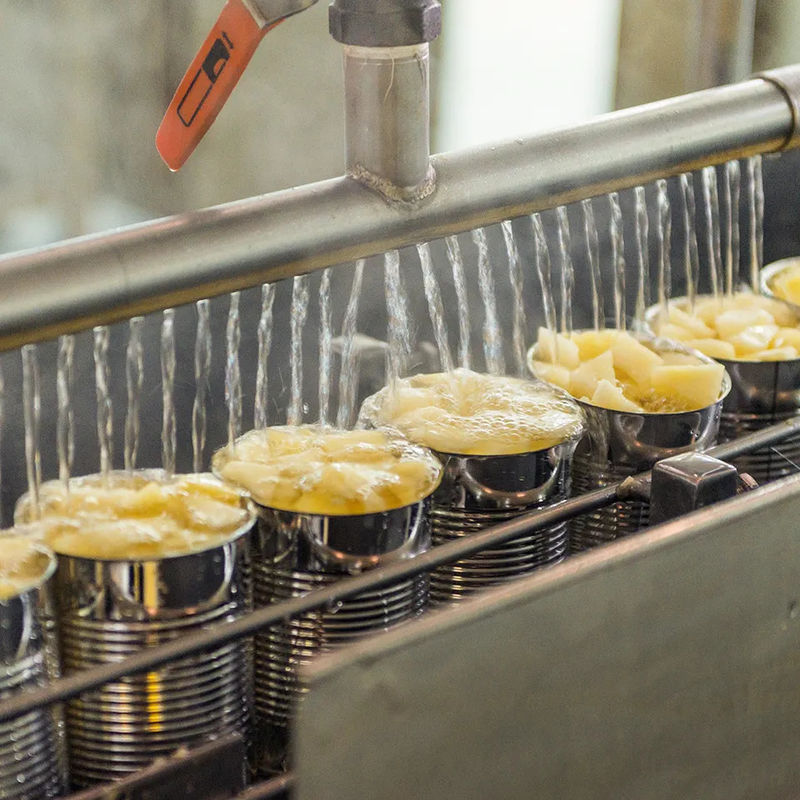

Washing→peeling→coring→slicing→Washing tank→manual pineapple filling→liquid filling→(lid elevating and loading)→iron lid
capping→sterilization→drying→labeling and date printing→can carton packing.
The process is for reference only. Please communicate with our engineers for details.
Leadworld Canned Fruit Production Line For Canning Pineapples 1
Product Name
Turnkey Project Canned Fruit Production Line
Application
Canned yellow peach,Canned oranges,Canned Strawberry,Canned pears,Canned litchi,canned pineapple,Canned grapes,Canned
Hawthorn,Canned cherry,Canned apricots ,Canned Coconut
Operation mode
Fully automatic / semi-automatic (customized)
Capacity
It can be customized according to the capacity
Support bottle type
Glass Bottle,Iron Cans,Plastic Jar
Leadworld Canned Fruit Production Line For Canning Pineapples 2


Name
Funtion&Specifications
Meat pre-processing line
1. Bubble washing machine
Bubble(dry bean 0.5T--1T/H)
2. Sorting size
Size of products
3. Module Conveyor

4.Module lifting Conveyor for waste material

5. Lifting conveyor

6.Conveyor
Used for product conveying
7. Pineapple slicing machine
Peeling of products for
8. Belt Conveyor:select +dicing conveyor

9. Tank

10.Liquid filling device

11. Platform

12.Gas Exhauste

13.Press soup filling after

14.Capping machine

15.Sterilization machine

16.Unscrambler table for bottle

Packing Line
17. filled cans washing and drying machine
Clean the residue on the can
18. Lid loading machine+Capping machine
Seal the jar
19. high pressure sterilization machine
Sterilize cans
20. drying system

21.case packer
Load the product into cartons
22.palletizer(can and carton)
Stack products together
23. Wet glue labeling machine
Labeling cans
24. date ink-jet printer
Date printing of cans
25. rotated turntable include motor driving conveyor
Used for conveying products
26. manually base box packing paltform

27. automatic wrapping machine
Wrap the packaged products together


Bubble washing machine

Parameters: Power:0.75KW reducer, 5.5kw blower fan Capacity: 500kg/h Material: stainless steel


Introduction:

The bubble cleaning machine is suitable for fruits and vegetables as well as root products, such as apples, strawberries, cherries, dates, raisins, cabbage, mushrooms, lettuce, etc. It is also suitable for pickled vegetables and medicinal materials. The cleaning machine is an ideal equipment for the fruit and vegetable industry.

1 All parts of the machine are made of 304 stainless steel
2 The output of 1~10 tons can be customized according to requirements


Leadworld Canned Fruit Production Line For Canning Pineapples 3

Working principle:

By the action of the high pressure water and strong bubble ,the vegetables and fruits will be exploded ,tumbled ,cleaned and convoyed .the silt will sink to the bottom of the machine and will never go up to pollute the vegetables and fruit. The floating sundries, worms, hair and others will be collected and then taken away. The clean vegetable and fruits will be washed again by spraying cleaner above and then delivery to next process.
Leadworld Canned Fruit Production Line For Canning Pineapples 4

Descriptions:

This equipment consists of a core removing knife, a pineapple outer cutting knife, a pineapple shaping device, a transmission system, a motor, etc. The whole machine is made of 304 stainless steel. According to the cutter model, pineapples of appropriate sizes are fed in, the pineapple outer cutting knife works, and the remaining pineapples enter the core removing device, and the pineapple meat is rolled out. This machine can separate the pineapple skin, pineapple skin and pineapple core with fast speed and automatic feeding.

Leadworld Canned Fruit Production Line For Canning Pineapples 5

Parameters:

Capacity: 8-10pcs/min

Core poking diameter: 15-25mm
Outer pineapple diameter: 60-100mm Weight:100kg Dimension: 1000*660*800mm
Match three size cutter: φ16mm,φ18mm,φ20mm
Recommended Products
Name
Funtion&Specifications
Packing Line
filled cans washing and drying machine
Clean the residue on the can
Lid loading machine+Capping machine
Seal the jar
high pressure sterilization machine
Sterilize cans
drying system

case packer
Load the product into cartons
palletizer(can and carton)
Stack products together
Wet glue labeling machine
Labeling cans
date ink-jet printer
Date printing of cans
rotated turntable include motor driving conveyor
Used for conveying products
manually base box packing paltform

automatic wrapping machine
Wrap the packaged products together
Leadworld Canned Fruit Production Line For Canning Pineapples 6
Empty Cans De-palletizer
Empty cans De-palletizer is mainly composed of lifting mechanism, moving mechanism, magnetic suction mechanism, conveyor and electrical controlling system. The working way adopts magnetic suction and moving type. It can match with magnetic lifting conveying system, can transport product in the air and can transport product among different height of floor.
Cans Washing Machine
The machine is used for tinplate can,ring-pull can continued cleaning,adopt steam heating way,temperature is adjustable,it adopt
high pressure standard nozzle. It has good cleaning efficiency,reasonable structure,stable work performance,high efficiency,it is
ideal equipment of canned food beverage production line.


Filling Machine
The device is used for automatic weighing of all kinds of solid raw materials, filling in glass bottles, tin cans and other containers within the device. To complete the automatic measurement of solid raw materials, feeding, canning, finished product delivery of all the packaging process.
Cans Sealing Machine


Automatic vacuum sealing equipment, specifically for the tinplate, aluminum round cans (cans) a variety of sizes can be used for sealing the shape.

Leadworld Canned Fruit Production Line For Canning Pineapples 7

Load And Unload Baskets Machine
It is mainly applied to all kinds of cans of drinks, tin cans of drink, canned meat, canned vegetables and secondary sterilization plastic bottle beverage etc process loading automatically before sterilization,unloading after sterilization,replace the artificial working,save manpower, greatly improve production efficiency.
Sterilization machine Autoclave



The Machine is suitable for high temperature

and high pressure sterilization of canned meat,beans,mushrooms,fish etc.
Leadworld Canned Fruit Production Line For Canning Pineapples 8

Filled Cans Palletizer

Filled Cans Palletizer is suitable for palletizer and depalletizer of the filled glass bottles,filled tin cans,empty tin cans,it is main composed of conveying system and palletizing system.



Working way uses magnetic grab movement.
The equipment uses Germany Siemens PLC,Japanese Panasonic servo motor control system,equipment operation is stable and reliable.

Carton Packer
Case Packer is a kind of automatic packing machine, which puts bottles or cans evenly into plastic boxes or cartons according to a
certain arrangement.Suitable glass bottle,Pet bottle,tin cans,bag.




LWT has always adhered to the business philosophy of innovation leading development, quality winning the market, and customer service first. With the goal of becoming the world's leading canning automatic production Packing line solution expert, it is committed to guiding the Production Packaging line industry's machinery production standards and actively promoting the improvement of the canning & Packaging industry's mechanical automation level.
Leadworld Canned Fruit Production Line For Canning Pineapples 11
LWT has always adhered to the business philosophy of innovation leading development, quality winning the market, and customer service first. With the goal of becoming the world's leading canning automatic production Packing line solution expert, it is committed to guiding the Production Packaging line industry's machinery production standards and actively promoting the improvement of the canning & Packaging industry's mechanical automation level.
Leadworld Canned Fruit Production Line For Canning Pineapples 12
Leadworld Canned Fruit Production Line For Canning Pineapples 13

Leadworld Canned Fruit Production Line For Canning Pineapples 14

FAQ

Q1: What is your company’s main products?

Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)

Q2: What is delivery date of your products?

Delivery date is 30 working days usually most of the machines.

Q3: What is payment term?

Deposit 30% in advance and 70% before shipment the machine.

Q4:Are you manufacturer or trading company?

We are manufacture verified by ALIBABA and we have our own design team.

Q5:Where are you located? Is it convenient to visit you?

We are located in Shanghai. Traffic is very convenient.

Q6:How can you guarantee quality?

1.We have completed working system and procedures and we follow them very strictly.

2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.

3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.

4.We will do strict test running after the machine is finished.

5.Our machines are certified by CE.

Q7:Can you design the machine according to our requirements?

Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.

Q8:Can you offer overseas technical support?

Yes. We can send engineer to your company to set the machine and train your worker if needed.
