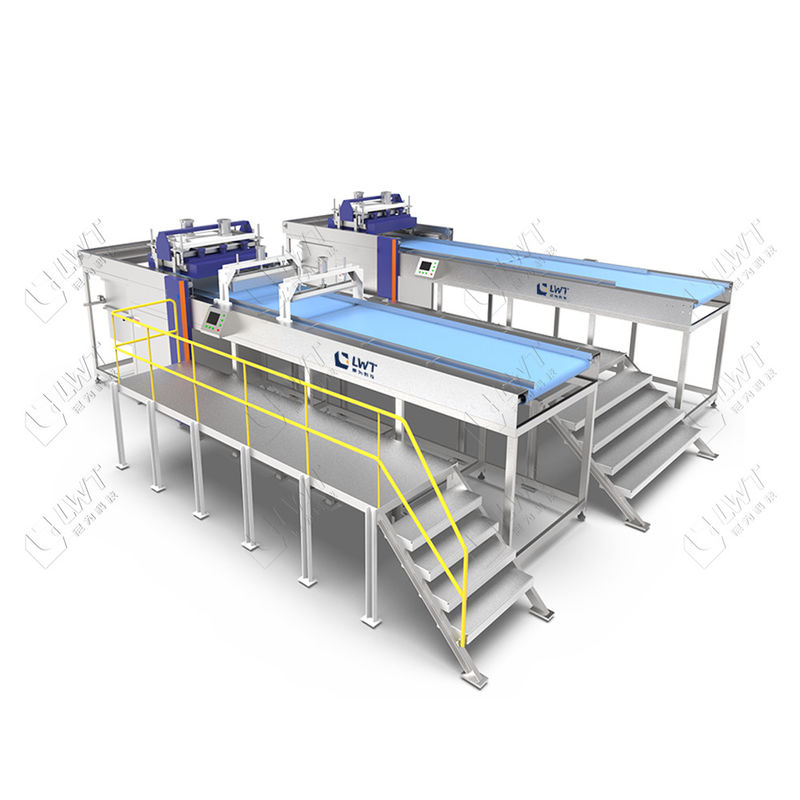

Canned Meat Basket Loading And Unloading Machine Systems Basket Loader Unloader
Product Description
It is mainly applied to all kinds of cans of drinks, tin cans of drink, canned meat, canned vegetables and secondary sterilization plastic bottle beverage etc process loading automatically before sterilization,unloading after sterilization,replace the artificial working,save manpower, greatly improve production efficiency.The machine adopts magnetic suction to prevent the chafing and squeezing of the cans.
Features
•replace the artificial working,save manpower, greatly improve production efficiency
•The machine adopts magnetic suction to prevent the chafing and squeezing of the cans.
Main Technical Parameter
| Model |
LW-PLM4 |
LW-PUM4 |
LW-PLC4 |
LW-PUC4 |
| Suction |
Magnetic Loading |
Magnetic Loading |
Clamping Loading |
Clamping Loading |
| Capacity |
2-4layers/min |
2-4layers/min |
2-4layers/min |
2-4layers/min |
| Size |
7500*1450*1700mm |
6500*1450*1700mm |
5100*1500*1400mm |
4500*1500*1400mm |
| Power Consumption |
3P 380V 2.25KW |
3P 380V 1.5KW |
3P 380V 2.25KW |
3P 380V 1.5KW |
| Air Consumption |
380L/min 6kg/cm2 |
380L/min 6kg/cm2 |
380L/min 6kg/cm2 |
380L/min 6kg/cm2 |
