Empty Glass Bottle De-Palletizer Automatic Depalletizer Machine For Sale

Place of Origin Shang Hai
Brand Name LeadWorld
Minimum Order 1 SET
Payment Terms According to your needs
Product Details
video
Product Name:
Empty Glass Bottle De-palletizer
Application:
Palletizing
Control System:
PLC
Operation Mode:
Automatic
Palletizing Accuracy:
High Accuracy
Palletizing Weight:
High Capacity
Palletizing Width:
Adjustable
Power Source:
Electricity
Type:
Automation Equipment
Warranty:
3Year
Highlight:

depalletizer machine

,

Empty Glass Bottle De-palletizer

,

depalletizer for sale

Payment & Shipping Terms
Price
Price Negotiable
Packaging Details
Film bag& plastic cartons& wooden cartons
Product Description

Empty Glass Bottle De-palletizer



     Empty Glass Bottle De-palletizer



The empty bottle de-palletizer is mainly used for automatically unloading and disassembling various stacked empty cans such as glass bottles, tin cans, and aluminum cans. It lifts and pushes the stacked empty cans on the pallet from bottom to top onto the conveyor, saving labor and improving production efficiency..

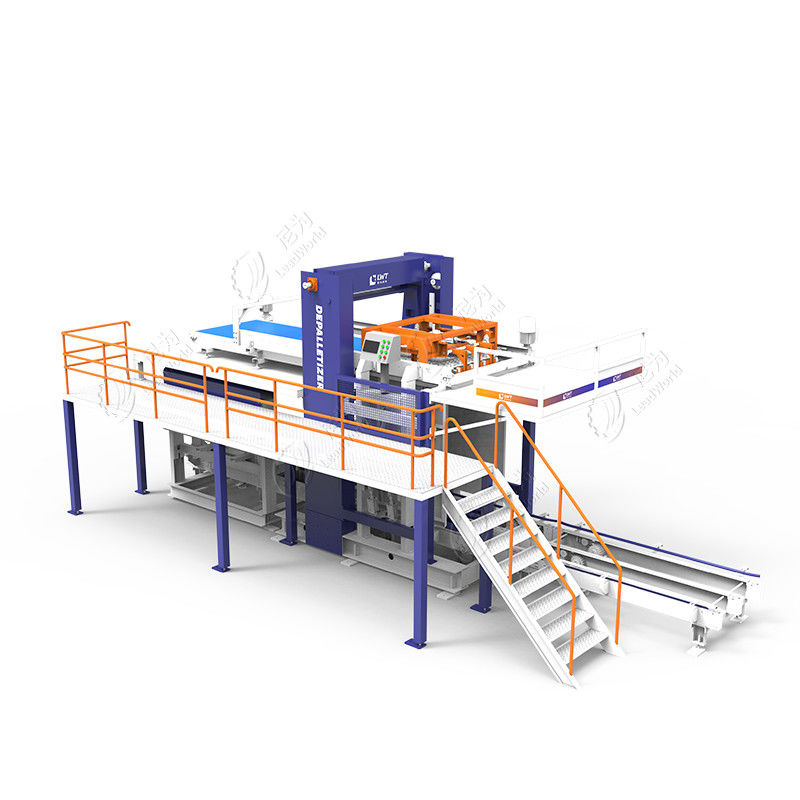

Empty Glass Bottle De-Palletizer Automatic Depalletizer Machine For Sale 0
Empty Glass Bottle De-Palletizer Automatic Depalletizer Machine For Sale 1

  Main technical parameter





Working speed 1-4 layers/min(200-800 bottles/min)
Suitable range Glass bottle&jar, iron cans, aluminum cans
Total power 7-9KW
Power 380V/50HZ
Controlling power source DC24
Compressed air source 0.5-0.8MPA
Air consumption 0.1-0.2m3/min 0.5-0.8MPA
Suitable stack size L1200*W1000*H1600(Can customize)
Fulled stack storage capacity 1-3 pieces





Features

1) The main body is made of high-quality carbon steel pipes, with a overall spray paint finish, beautiful and elegant.

2) The pallet conveying part is made of high-quality carbon steel pipes, with a stable structure. It is equipped with a frequency-controlled motor and has one pallet space reserved. The transmission part uses a double-row roller chain with guide bars. The side guards on both sides of the pallet use high-quality steel pipes to correct and align the stacking direction. The entrance of the main body is designed with a guiding structure to ensure the smooth entry of the can stacks.

3) The lifting station has a bidirectional clamping plate, which can restore and correct the lateral deformation of the stacked cans to prevent can dropping and squeezing during the lifting process. The lifting power motor is controlled by frequency conversion and will automatically lock in case of unexpected power failure to ensure that the can stacks are not damaged. The lifting part adopts a double-rail cantilever structure, which is stable, has good load-carrying capacity, and high space utilization. The power transmission uses a roller chain for smooth lifting. A photoelectric sensor (magnetic switch) is installed at the top to detect positioning and accurately control the lifting height.

4) The unloading action is completed by a hugging-type structure, which limits the external dimensions of the entire layer of cans during the movement. It is driven by a frequency-controlled braking motor and a synchronous belt to ensure that the cans will not be deformed, squeezed, or jammed during linear freedom of movement.

5) The side panels of the bottle conveying mesh belt are made of stainless steel plates, with an overall spray paint finish. The mesh belt is made of POM material, which operates smoothly and has high wear resistance.

Empty Glass Bottle De-Palletizer Automatic Depalletizer Machine For Sale 2
