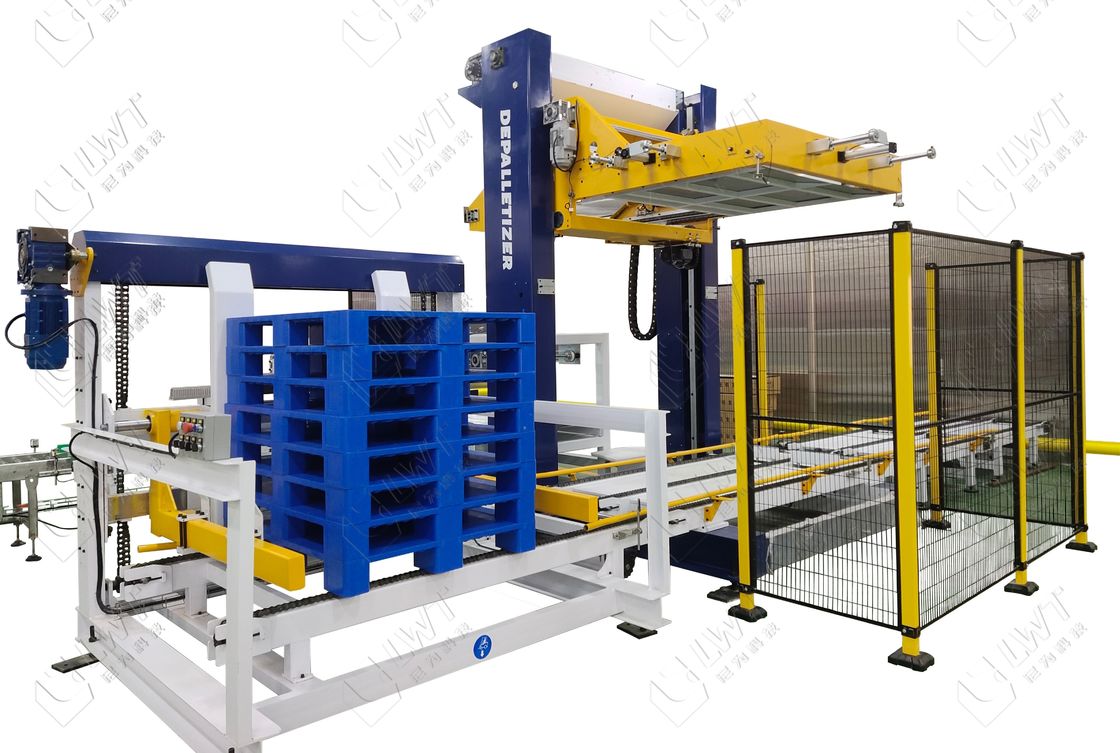

LWT Palletizer series is used for food and beverage, the chemical industry, etc. The package is suitable for all kinds of cartons, plastic boxes, stretch film, barrels, and other types of packing stack, Machiner's hosts include the double speed belt, steering mechanism, sorting box area, pallet carton area, main part lifting mechanism, pallet output roller line, etc.
Main Technical Parameters:
| Model |
LWT-PSS10A |
LWT-PSS10D |
LWT-PSG30 |
LWT-PSG60 |
| Capacity |
5-12carton/min |
5-10carton/min |
20-30carton/min |
40-60carton/min |
| Pallet Size |
L1200*W1200*150mm |
L1200*W1200*150mm |
| Stacking way |
Servo |
Gantry |
| Stacking H |
<1800mm |
<1900mm |
<2000mm |
<2000mm |
| Equipment Size |
3800*1000*1400mm |
2620*2440*3500mm |
L8400*W4700*H3700mm |
| Power |
380V 7KW |
380V/3P 7.2KW |
380V/3P 11KW |
380V/3P 12KW |
| Air Consumption |
0.8m3/min |
210L/min 6kg/cm2 |
110L/min 6kg/cm2 |
180L/min 6kg/cm2 |
| Conveyor H |
650mm |
650mm |
850mm |
850mm |
| Pallet Conveyor H |
300mm |
650mm |
650mm |
650mm |
| Max weight |
1000KG |
1500KG |
1500KG |
1500KG |
Feature:
The structural framework for the welding way is strong and durable and has adjustable base functions, the main lifting platform USES the SEW motor drive, the entry speed conveyor belt to separate into the box, the entry expedite conveyor belt to separate into the box to separate, the stack area roller conveyor,2.5m chain conveyor output, free roller conveyor, use the safety protection device, USES Germany Siemens PLC control system. man-machine interface, portable fault automatic display.
