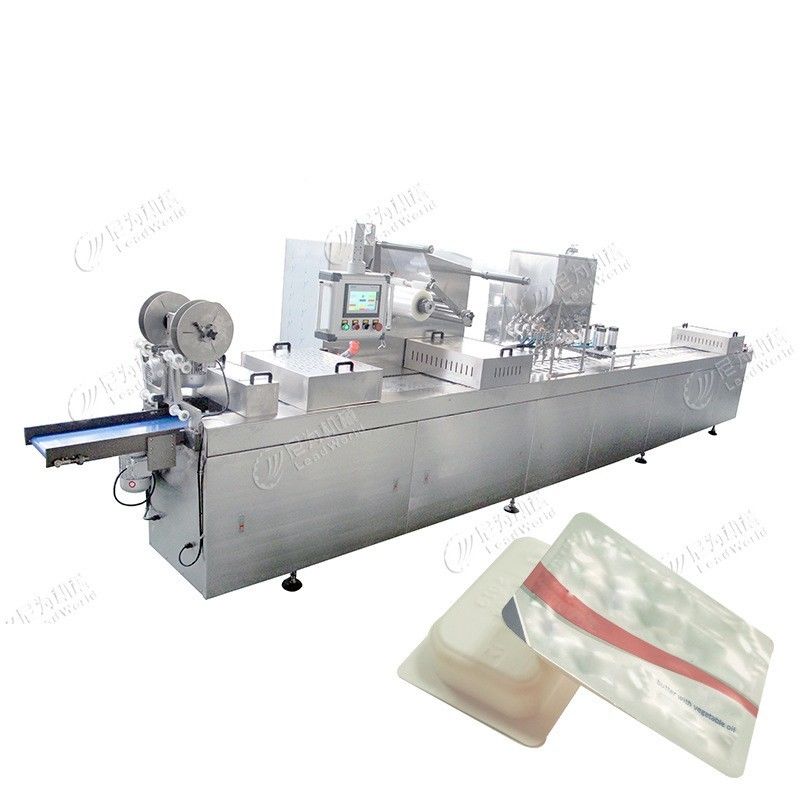

Thermoforming Vacuum Packaging Machine For Cheese
Product Description:
This food vacuum packing machine is made of high-quality materials, ensuring that it is durable and long-lasting. The machine is designed to work with laminated film, which provides an excellent barrier against moisture, oxygen, and other contaminants, ensuring that the food products are protected and preserved during storage and transportation.
The main function of this thermoforming vacuum sealer is filling, sealing, and packing. The machine is designed to perform these functions automatically, which makes it easy to use and reduces the time and effort required for packaging. The machine is capable of packaging a variety of food products, including meat, fish, vegetables, fruits, and more.
This auto thermoforming packing machine is suitable for use in food production packaging lines. Its compact design allows it to be easily integrated into existing production lines, providing a seamless and efficient packaging process. The machine is designed to be easy to operate, with user-friendly controls that allow operators to adjust the settings based on the specific packaging requirements.
In the event that any issues arise with the machine, the Bag Production Line product comes with VIP online group support for after-warranty service. This ensures that you have access to timely and efficient support, helping to minimize downtime and ensure that your packaging process remains uninterrupted.
Features:
- Machine is made of 304 staintess steel, easy to clean.
- with German Siemens programmable controller (PLC) and touch screen,simple to use,easy to operate.
- The machine equipped with orginal BUSCH vacuum pump which is imported from Germany. It guarantees machine performance stable. High vacuum, stable quality, durable and reliable.
- Strong adaptability for the packaging materials and packaging specifications, Can be arbitrarily selected within the specified range;
- Japanese panasonic servo system driver, running steady and rapid.
- only need to change mould. Can be used to different specifications of products on one set of machine;
- On the basis of vacuum extraction, can input all kinds of mixing gas, can extend fresh time.
Technical Parameters:
|
Model
Parameter
|
LW-ATVP-S/D320 |
LW-ATVP-S/D420 |
LW-ATVP-S/D520 |
| Packing speed |
4-8Cycles/Min |
4-8Cycles/Min |
4-8Cycles/Min |
| Bottom Film Thickness |
≤0.8mm |
≤0.8mm |
≤0.8mm |
| Bottom Film Width |
322mm |
422mm |
522mm |
| Top Film Width |
293mm |
393mm |
493mm |
| Power Supply |
AC 380V 50HZ (3Phase) |
AC 380V 50HZ (3Phase) |
AC 380V 50HZ (3Phase) |
| Air Consumption |
500L/Min |
550L/Min |
650L/Min |
| Air Supply |
≥0.6MPa |
≥0.6MPa |
≥0.6MPa |
| Power |
10KW |
12KW |
15KW |
| Dimension |
4500*1000*1700mm |
5200*1100*1760mm |
6000*1200*1760mm |
| Weight |
1300kg |
1600kg |
2200kg |
Applications:
Suitable for palm date, sausage, meat products, seafood, dairy products (cheese, etc.), sauces, pickles, whole grains (such as: rice, corn, beans, nuts, etc.), fruits and vegetables (such as: frozen vegetables, fresh fruit, etc.), daily chemical, medical products, hardware components, etc. for vacuum packaging.
Support and Services:
Our Thermoforming vacuum packing machine technical support and service include:
1. 24/7 online technical support
- On-site installation and commissioning
- Operation and maintenance training
- Replacement parts and components
- Fault diagnosis and troubleshooting
6.Regular maintenance and repair services
7. Factory building and design
After-Sales Service
1. Oversea technical support
2. Oversea equipment maintenance
3. English speaking engineers available to provide technical support
