Introduction

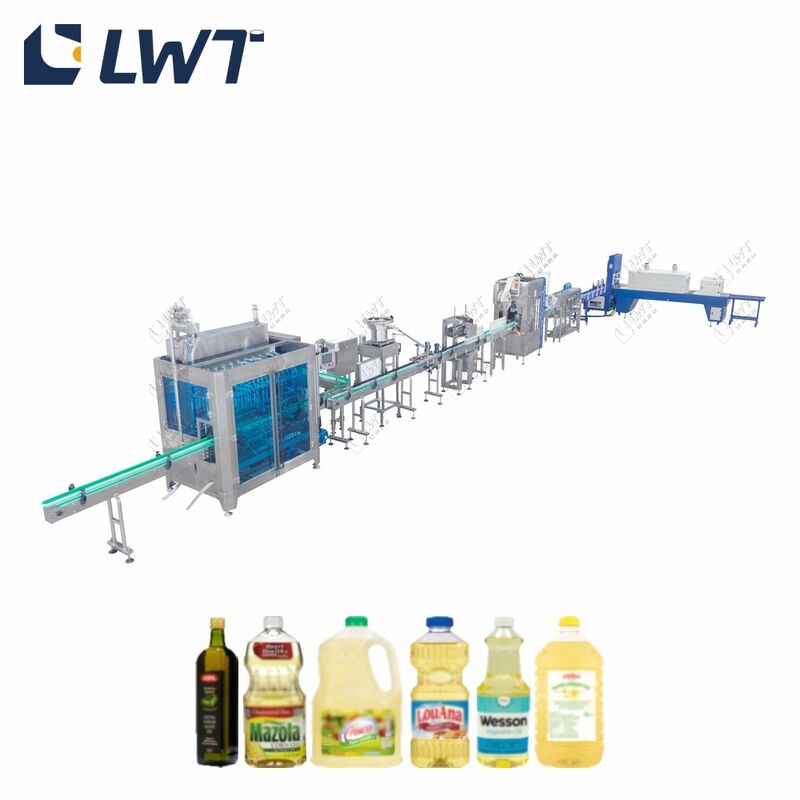

An edible oil filling line links bottle feeding, volumetric dosing, capping, sleeve labeling, shrinking, film wrapping and cartoning onto one synchronized conveyor, so a single operator can supervise what traditionally needed a whole team. The configuration presented on this page is engineered for PET bottles from 150ml to 1L — the sizes that appear most frequently on retail cooking oil shelves.

At the dosing core of this cooking oil bottling production line stands a 10-head piston type edible oil filling machine, and every downstream station is matched to its rhythm: up to 2,500 bottles per hour (based on 1L bottles) (customizable), so no single unit holds the whole line back.

Before shipment, each machine is assembled, aligned and trial-run as a complete line in our workshop, and our engineers provide the layout design, installation guidance and commissioning support that make the handover smooth.

Line Composition — One System from Empty Bottle to Sealed Carton

Instead of buying a filler, a capper and a labeler from different suppliers and then hiring engineers to link them, you receive one integrated system. A typical line is composed of the following stations:

Working Process

The material flow is kept simple and logical: bottles in → piston filling → backlit inspection → capping → sleeve labeling & steam shrinking → film wrapping (150ml/250ml) → case packing → carton sealing, with conveyors carrying bottles and cartons between every station.

Key Features & Special Designs

• Steam shrink tunnel in #304 stainless steel — steam delivers uniform, gentle heat around the whole sleeve, so labels fit tightly even on different bottle diameters; tooling is exchangeable when the bottle diameter changes (customizable).
• Flexible packing logic — small bottles are film-wrapped into 3×4 bundles before cartoning, while 1L bottles skip bundling and are packed directly, which saves film material and handling time.
• Gentle gripper case packing — bottle groups are gripped and placed into cartons instead of being pushed along, lowering the risk of scratched bottles or damaged cartons.
• Food-safe build — product-contact parts are made of #304 stainless steel (customizable), keeping edible oil clean and making wash-down simple.
• Central PLC + touch screen — one HMI controls start, stop and speed of the whole line; changeover parameters for different bottles can be recalled in seconds.
• Layout flexibility — machines are arranged according to the layout drawing to fit your available floor space, and conveyor height can be adjusted to your working level (customizable).

Applications

This line suits edible oil producers packing sunflower, soybean, rapeseed, peanut, olive, corn or blended cooking oil into 150ml, 250ml and 1L PET bottles (customizable) — from regional brands to large filling plants. With configuration changes, it can also handle other free-flowing, low-viscosity liquid foods such as soy sauce or vinegar (customizable).

Technical Specifications

Closing

Shanghai LWT Intelligent Technology Co., Ltd. is a Chinese manufacturer of automatic filling, capping, labeling and packing machines, as well as turnkey edible oil, sauce and beverage production lines. With in-house R&D, workshop assembly and a dedicated service team, we support customers from plant layout through commissioning to after-sales spare parts. Click here to get the best price for this edible oil filling line — or send us your bottle samples and target output, and our engineers will reply with a tailored layout and quotation within 24 hours.
