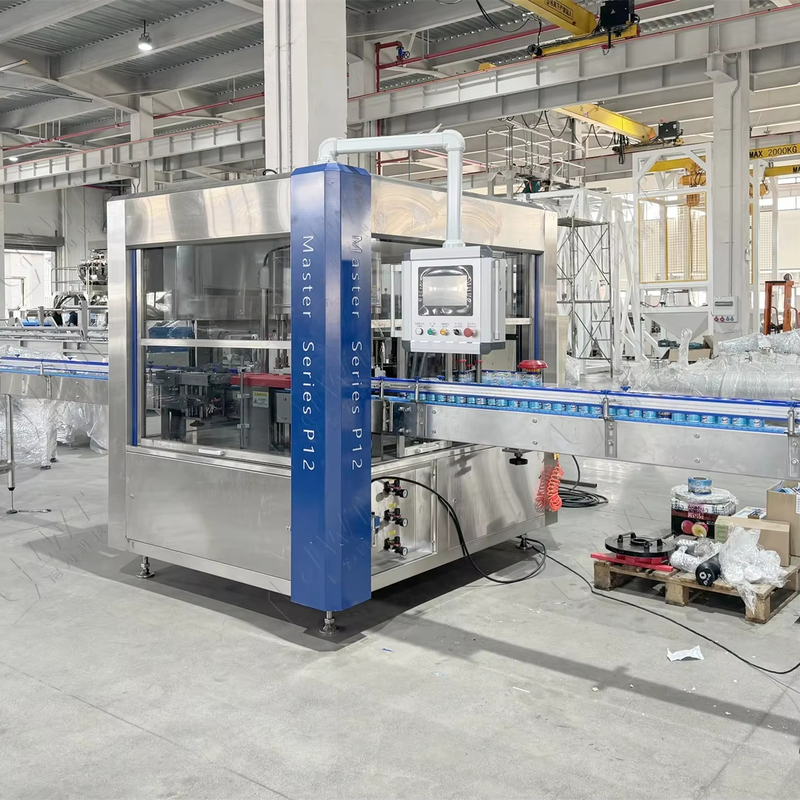

Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans
  • Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans
  • Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans
  • Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans
  • Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans
  • Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans
  • Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans
  • Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans

Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans

Place of Origin Shanghai, China
Brand Name Leadworld
Product Details
Voltage:
220V/380V, AC200V50/60Hz
Weight:
1500 KG
Material:
Stainless Steel
Power Supply:
Three-phase 380V 50 Hz 16KW
Equipment Length:
3000mm
Equipment Width:
2500mm
Conveyor Speed:
30m/min
Label Feed Speed:
100 Meters/min
Labeling Speed:
9000 BPH (500ml)
Labeling Accuracy:
± 1mm
Maximum Label Width:
150mm
Maximum Label Length:
500mm
Maximum Label Diameter:
600mm
Paper Core Diameter:
152 Mm
Gluing Temperature:
120~160℃
Highlight:

automatic can labeling machine 220V

,

industrial labeling machine with touch screen

,

380V can labeler with warranty

Payment & Shipping Terms
Product Description
LWT Hot Melt Labeling Machine for Metal Cans Oil-Resistant Adhesive Technology for Lubricant & Glue Containers

Product Specifications
Attribute Value
Packaging Type Bags, Bottles, CANS, Cartons, Barrel, Stand-up Pouch, Film, Foil, Belt, Pouch, case
Packaging Material Plastic, Paper, Metal, Glass, Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V, AC200V50/60Hz
Dimension (L×W×H) Customizable to your requirements
Warranty 1 Year
Key Selling Points Multi Color, Easy to Operate, Remote Monitoring, Low Noise Level, High-accuracy, Energy saving, Long Service Life, Remote Control, High Safety Level, Flexible Manufacturing, Competitive Price, High Rigidity, Eco-Friendly, Multifunctional, High Productivity
Core Components PLC, Pressure vessel, Gear, motor, Engine, Bearing, Gearbox, Pump, Other
After-Sales Service Video technical support, Onsite Training, Field installation, commissioning and training, Online support, Free spare parts
Special Feature Touch Screen
Bottle Type Square, ROUND, Rectangular, Oval
Weight (KG) 1500
Printer Technology Inkjet, Thermal Transfer, Laser, Direct Thermal
Material Stainless Steel

Product Description
Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans 0

Containers are first grasped by the infeed star wheel and moved onto the container table. Rotation begins as they are securely centered between container plates and centering bells.

The feed roller adjusts its speed according to the required label length, maintaining consistent web tension. An integrated threading unit ensures smooth and stable film feeding. Inside the cutting unit, labels are precisely severed at the exact position through PLC-controlled servo motion.

Two narrow strips of hot melt adhesive are applied by a heated glue roller to both the leading and trailing edges of each label. The label—already coated with adhesive on its leading edge—is then transferred onto the container. This initial glue strip enables accurate label placement and strong initial adhesion. As the container rotates during application, the label is wound tightly around its surface. A final application of adhesive at the trailing edge secures a complete and reliable bond.

Component Specification
Transportation Structure 750W motor, frequency converter speed regulation; Industrial nylon chain plate conveyor belt
Mainframe Transportation Structure Motor 2.2Kw
Bottle Separation Structure Feed screw
Bottle Feeding Structure Feed screw and star wheel position feeding structure for accuracy and stability
Position Structure Mechanical pre-location using cam wheel institution for bottle positioning
Labeling Structure Rotary type bottle tray carries the bottles during labeling rotation
Label Feeding Structure High speed servo OPP label supply system (drive by servo-motor)
Label Pressing Structure Arc shape brush unit
Bottle Guiding Structure Adjustable by double coordinate section guide rail
Glue Supply System Hot melt glue supply system ensures accuracy and uniformity of gluing
Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans 1 Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans 2 Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans 3 Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans 4
Technical Parameters
Parameter Specification
Power Supply Three-phase 380V 50 Hz 16KW
Equipment Length 3000mm (conveyor length adjustable based on production lines)
Equipment Width 2500mm
Conveyor Speed 30m/min (adjustable according to production needs)
Speed Adjustment Method Uninterrupted rate adjustment
Maximum Label Feed Speed 100 meters labels/min
Maximum Labeling Speed 9000 BPH (500ml)
Labeling Accuracy ± 1mm
Integrated Labeling Accuracy ± 1mm
Maximum Label Width 150mm
Maximum Label Length 500mm
Maximum Label Diameter 600mm
Paper Core Diameter 152 mm
Labeling Glue Leading and trailing edge gluing with hot melt
Gluing Temperature 120~160℃
Label Types OPP label, paper-plastic composite film label, paper label
Labeling Workstations 9 per cycle
Machine Weight Approximately 3000 Kg



Related Labeling Machines
The circular bottle labeling device utilizes self-adhesive roll label paper and applies labels through a rolling process. This self-adhesive labeling system offers cleanliness, no need for molds, attractive aesthetics, strong adhesion, prevention of label peeling, and enhanced production efficiency. In other words, this machine adheres labels using self-adhesive paper, ensuring hygienic, mold-free, visually pleasing, securely attached labels that boost productivity.
The dual-sided labeling equipment provides automated application of self-adhesive labels and films on various surfaces of products, including side planes, large curved surfaces, and square perimeters. This versatile machine finds extensive applications across industries such as food, toys, daily essentials, electronics, hardware, plastics, printing, and more. In essence, this machine automates the attachment of labels and films on multiple product surfaces, catering to diverse industry needs effectively and efficiently.
The flat labeling machine can complete automatic front and back labeling on both sides. It is suitable for automatic labeling on both sides of various flat and square products and on the circumference of round bottles in food, daily chemicals, beverages, and other light industry industries.
The horizontal wet glue labeling machine is suitable for canned food. The cans automatically enter the equipment, and the belt presses the cans to move and rotate. When the jar passes through the glue sticking station, the glue will automatically stick to the jar. The label is then automatically affixed to the can as it rotates.
It is stable and reliable to apply slurry to pick up labels with high working efficiency. Screw is used to feed the bottle, so the bottle runs stably and the positioning is reliable. The rolling mechanism is adopted to ensure the good adhesion of labels, enhance the reliability of labeling.
Multi-Function Labeling Machine
Customers can install other mechanisms as needed to meet usage requirements. Product counting, output settings, labeling quantity, and output can all be displayed on the touch screen. Multiple groups of parameter configurations allow management of parameters for multiple application bottle types.
Company Profile

Shanghai Leadworld Machinery Technology Co., Ltd is specialized in researching and manufacturing various whole set of packing production systems, such as Canned food production line, carton packing and palletizer system, automatic filling system, vacuum packing system, different kinds of conveyor system, labeling system and so on, our specialized engineer team will offer whole plant planning.

Leadworld is a industrial and trade integrated enterprise with design, production, customization and installation capabilities, with import and export rights. We are an outstanding enterprise recognized by China canning association and vice President of canning association. Our company devote to digesting and absorbing advanced science of processing and automatic equipment.

Welcome to visit us at any time, our equipment is ready to go, waiting at any time.

Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans 12
Our Services
Pre-sales Services
According to client-specific machinery or automatic product line requirement, supply reasonable machine sketch map, quotation, and similar video for client reference first.
Servo-Driven High-Speed Labeling Machine for Round Bottles and Cans 13
During Sales Services
  1. Customize based on the client's specific requirements
  2. Conduct 20 ongoing hours of equipment operation stability testing
  3. Execute GMP certification for the equipment and materials used in production
After-Sale Services
  1. During the epidemic, we support senior engineers to provide one-by-one video guidance; And other times, we will assign professional engineers to customer companies for installation or maintenance services according to customer needs
  2. Supply systematic operation training for client workers
  3. Guarantees all equipment (except human factors) within one year, lifetime maintenance services
  4. After the client use the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years
  5. If quality problems arise, the supplier provides technical support and timely supply wearing parts
