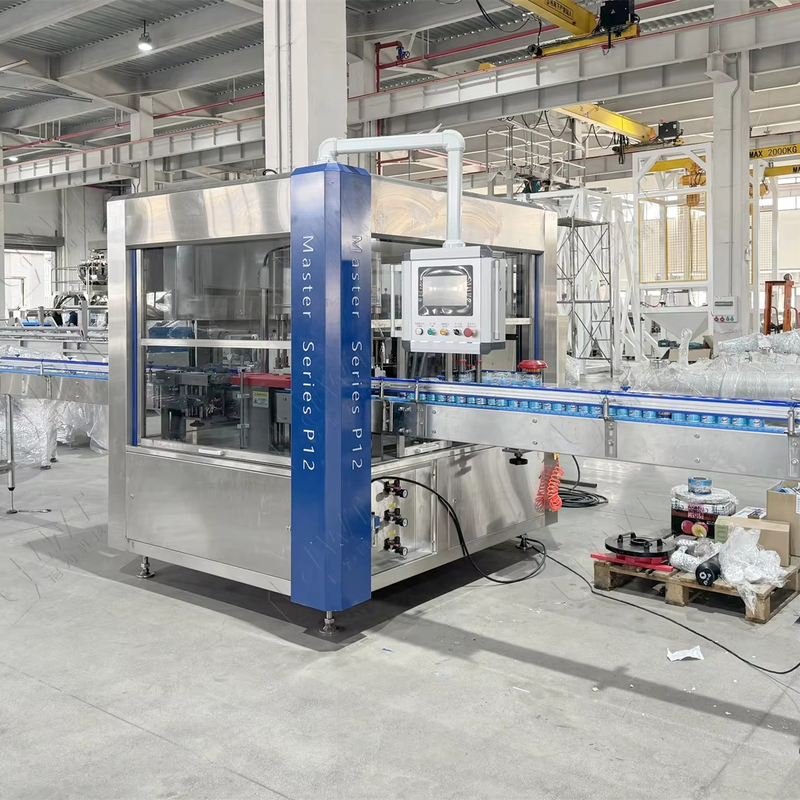

Automatic Labeling Machine for Cans 220V/380V with Touch Screen

Place of Origin	Shanghai, China
Brand Name	Leadworld
Minimum Order	1

Product Details

Voltage:

220V/380V, AC200V50/60Hz

Weight:

1500 KG

Material:

Stainless Steel

Power Supply:

Three-phase 380V 50 Hz 16KW

Equipment Length:

3000mm

Equipment Width:

2500mm

Conveyor Speed:

30m/min

Label Feed Speed:

100 Meters/min

Labeling Speed:

9000 BPH (500ml)

Labeling Accuracy:

± 1mm

Maximum Label Width:

150mm

Maximum Label Length:

500mm

Maximum Label Diameter:

600mm

Paper Core Diameter:

152 Mm

Gluing Temperature:

120~160℃

Highlight:

automatic can labeling machine 220V

industrial labeling machine with touch screen

380V can labeler with warranty

Payment & Shipping Terms

Price

$25,599

Product Description

LWT Hot Melt Labeling Machine for Metal Cans Oil-Resistant Adhesive Technology for Lubricant & Glue Containers

Product Specifications

Attribute	Value
Packaging Type	Bags, Bottles, CANS, Cartons, Barrel, Stand-up Pouch, Film, Foil, Belt, Pouch, case
Packaging Material	Plastic, Paper, Metal, Glass, Wood
Automatic Grade	Automatic
Driven Type	Electric
Voltage	220V/380V, AC200V50/60Hz
Dimension (L×W×H)	Customizable to your requirements
Warranty	1 Year
Key Selling Points	Multi Color, Easy to Operate, Remote Monitoring, Low Noise Level, High-accuracy, Energy saving, Long Service Life, Remote Control, High Safety Level, Flexible Manufacturing, Competitive Price, High Rigidity, Eco-Friendly, Multifunctional, High Productivity
Core Components	PLC, Pressure vessel, Gear, motor, Engine, Bearing, Gearbox, Pump, Other
After-Sales Service	Video technical support, Onsite Training, Field installation, commissioning and training, Online support, Free spare parts
Special Feature	Touch Screen
Bottle Type	Square, ROUND, Rectangular, Oval
Weight (KG)	1500
Printer Technology	Inkjet, Thermal Transfer, Laser, Direct Thermal
Material	Stainless Steel

Product Description

The containers are picked up by the infeed star wheel and transferred to the container table. The container rotation begins when they are positioned between container plates and centering bells.

The speed of the feed roller is adjusted to the required label length for continuous web tension. A standard threading unit ensures optimal film feed. In the cutting unit, the labels are precisely cut while a PLC command and servo-motor provide an exact cut-off point.

Two narrow strips of hot melt glue the labels together, which are applied by a heated glue roller to the leading and trailing label edges. The label with the glue strip on its leading edge is transferred to the container. This glue strip ensures an exact label positioning and a positive bond. As the container is rotated during label transfer, labels are applied tightly. Gluing of the trailing edge ensures proper bonding.

Component	Specification
Transportation Structure	750W motor, frequency converter speed regulation; Industrial nylon chain plate conveyor belt
Mainframe Transportation Structure	Motor 2.2Kw
Bottle Separation Structure	Feed screw
Bottle Feeding Structure	Feed screw and star wheel position feeding structure for accuracy and stability
Position Structure	Mechanical pre-location using cam wheel institution for bottle positioning
Labeling Structure	Rotary type bottle tray carries the bottles during labeling rotation
Label Feeding Structure	High speed servo OPP label supply system (drive by servo-motor)
Label Pressing Structure	Arc shape brush unit
Bottle Guiding Structure	Adjustable by double coordinate section guide rail
Glue Supply System	Hot melt glue supply system ensures accuracy and uniformity of gluing

Technical Parameters

Parameter	Specification
Power Supply	Three-phase 380V 50 Hz 16KW
Equipment Length	3000mm (conveyor length adjustable based on production lines)
Equipment Width	2500mm
Conveyor Speed	30m/min (adjustable according to production needs)
Speed Adjustment Method	Uninterrupted rate adjustment
Maximum Label Feed Speed	100 meters labels/min
Maximum Labeling Speed	9000 BPH (500ml)
Labeling Accuracy	± 1mm
Integrated Labeling Accuracy	± 1mm
Maximum Label Width	150mm
Maximum Label Length	500mm
Maximum Label Diameter	600mm
Paper Core Diameter	152 mm
Labeling Glue	Leading and trailing edge gluing with hot melt
Gluing Temperature	120~160℃
Label Types	OPP label, paper-plastic composite film label, paper label
Labeling Workstations	9 per cycle
Machine Weight	Approximately 3000 Kg

Related Labeling Machines

Round Bottle Labeling Machine

The round bottle labeling machine adopts self-adhesive roll labeling paper, and the labeling process is completed by rolling labeling. The self-adhesive labeling machine has the advantages of sanitation, no mold, beautiful appearance, firmness, no self falling off after labeling, and high production efficiency.

Double Sided Labeling Machine

The double-sided labeling machine can automatically attach self-adhesive labels and films on the side plane, large arc side surface and square circumference of the product. Widely used in food, toys, daily chemicals, electronics, hardware, plastic, printing and other industries.

Plane Labeling Machine

The flat labeling machine can complete automatic front and back labeling on both sides. It is suitable for automatic labeling on both sides of various flat and square products and on the circumference of round bottles in food, daily chemicals, beverages, and other light industry industries.

Horizontal Wet Glue Labeling Machine

The horizontal wet glue labeling machine is suitable for canned food. The cans automatically enter the equipment, and the belt presses the cans to move and rotate. When the jar passes through the glue sticking station, the glue will automatically stick to the jar. The label is then automatically affixed to the can as it rotates.

Vertical Wet Glue Labeling Machine

It is stable and reliable to apply slurry to pick up labels with high working efficiency. Screw is used to feed the bottle, so the bottle runs stably and the positioning is reliable. The rolling mechanism is adopted to ensure the good adhesion of labels, enhance the reliability of labeling.

Multi-Function Labeling Machine

Customers can install other mechanisms as needed to meet usage requirements. Product counting, output settings, labeling quantity, and output can all be displayed on the touch screen. Multiple groups of parameter configurations allow management of parameters for multiple application bottle types.
