Double-Head Shampoo Filling Production Line Fully Automatic Liquid Filling And Capping Machine
Product Description:
Shampoo filling production line is suitable for filling various bottles of shampoo, shampoo, shower gel, conditioner, facial cream, etc. Niwei provides you with a fully automatic shampoo filling production line to help you arrange your production layout more reasonably and make your shampoo production line management more convenient. It is an ideal choice for shampoo companies.
Features:
Automatic Filling Production Line
1. Qty of filling head: 2~12 heads (depending on the design).
2. Filling capacity: 50ML-5000ML (Compatible filling capacity tolerance for a single machine is one time. To be determined by customer requirements).
3. Filling method: Equal-liquid level self-flowing type.
4. Filling speed: 6~8 times/min. Custom Filling head
5. Filling accuracy: ±1%.
6. Program control: PLC + touch screen.
7. Main materials: #304 stainless steel, PVC used in food industry.
8. Air pressure: 0.6-0.8Mpa.
9. Conveyer belt: Stainless steel chain belt of 82mm in width. Speed: 0-15m/min. Distance away from the ground: 750mm±25mm.
10. Conveyor motor: 370W frequency conversion speed regulation motor.
11.Power: 1KW/220V single phase.
12. Capacity of material tank: 200L (with liquid level switch).
13. Protective device: Outage alarm on shortage of liquid in the reservoir tank.
Related Machines:
Filling Machine
1. Preventing Leaking System
2. Photoelectric Sensor, Mechatronics Filling Adjustment System
3. Photoelectric Sensor, Material Level Control Feeding System
4. Stainless Steel Frame, Plexiglass as Security Cover
5. Control System: PLC/Electronic-Pneumatic Controlled
6. Operation Panel: "Intelligent" Colorful Touch Screen
7. Filling Accuracy:+-0.5%-1%
8. Capacity Adjustment: All cylinders adjusted automatically combine single cylinder adjusted individually.
9. Container transport: Stainless steel frame and engineering plastic plate chain variable speed conveyor, with photoelectric sensor
Capping Machine
Automatic capping machines, specifically servo capping machines, utilize a servo system to automatically track the position of the bottle and cap the cap. This servo system ensures accurate and precise capping, improving efficiency and reducing errors in the capping process.

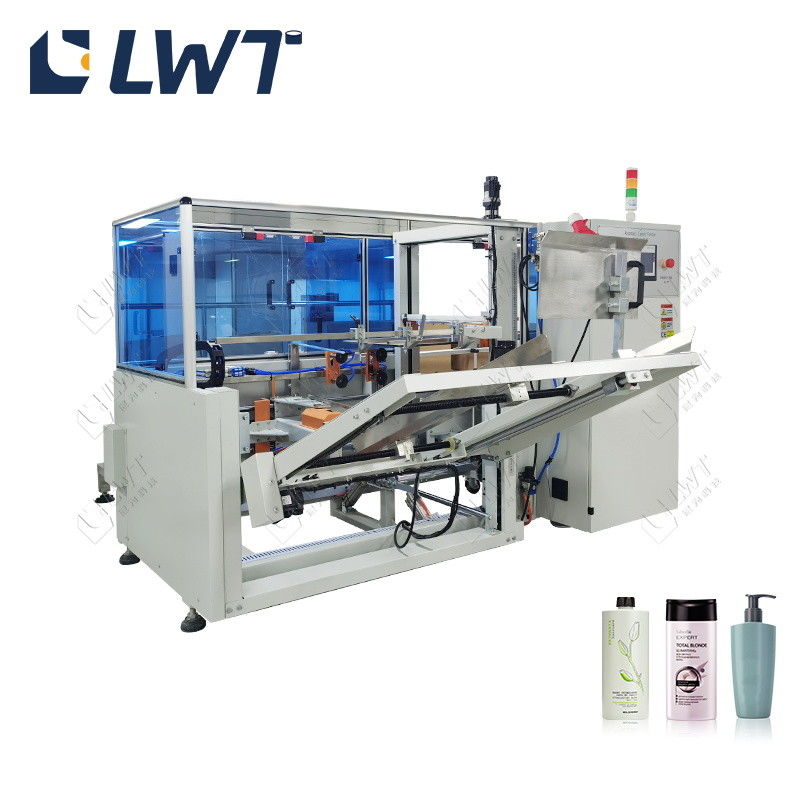

Case Packer
The fully automatic case packer is widely used in industries such as food, daily chemicals, and chemicals. It is mainly used for packaging bucket-packed jams, concentrates, beverages, and various canned products.
The fully automatic case packer is composed of a frame, bottle feeding conveyor, box feeding conveyor, bottle suction unit, box opening mechanism, and electrical cabinet.
Palletizing Machine
Main Technical Parameter:
| Model |
Filler volume |
Air consumption |
Filling accuracy |
Total power |
Machine size(mm) |
| LW-FPP-4A |
10-60g |
120L/Min |
liqud≤±0.5%Paste≤±1% |
3P 380V,50/60Hz 1.369KW |
L2200*W1020*H2250 |
| LW-FPP-6A |
30-100g50-250g |
140L/Min |
liqud≤±0.5%Paste≤±1% |
3P 380V,50/60Hz1.69KW |
L2500×W1020×H2250 |
| LW-FPP-8A |
100-500g |
160L/Min |
liquid≤±0.5%Paste≤±1% |
3P 380V,50/60Hz 2.07KW |
L2500×W1020× H2250 |
| LW-FPP-10A |
200-1000g500-2500ml |
180L/Min |
liquid≤±0.5%Paste≤±1% |
3P 380V,50/60Hz 2.82kw |
L3000×W1020×H2250 |
| LW-FPP-12A |
1000-5000ml |
300L/Min |
liquid≤±0.5%Paste≤±1% |
3 P 380V,50/60Hz 2.82kw |
L3000×W1020×H2250
|
FAQ:
Q1: What is your company’s main products?
Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)
Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Are you manufacturer or trading company?
We are manufacture verified by ALIBABA and we have our own design team.
Q5:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by CE.
Q7:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.
Q8:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your worker if needed.
