Canned bean production line (Cleaning--Sealing)
|
|
|
|
|
|
Material
|
|
|
Capacity: 500-1000kg/H
Power: 4.5KW
|
|
|
|
Steam heating,Pre-cooking temperature 90-98℃,Power: 0.75KW
|
|
|
|
Room temperature water cooling,Power: 4.5KW
|
|
|
|
Food grade belt,Power: 0.75KW
|
|
|
|
Food grade belt
Power: 0.75KW
|
|
Measuring cup beans filling machine
|
Capacity:100-150cans/min,Power:1.5kw
Feeding Tray size: 1000*1000*130mm(for reference,subject to final design drawings)
Dimension: 1750*1650*1350mm(for reference,subject to final design drawings)
|
|
|
|
|
|
Automatic Steam jet can sealer
|
Power:3KW
Different diameter need different sets of seaming machine
|
|
Empty cans washing machine
|
Magnetic steam heating ,Hot water washing
Equipment size: length 3000mm width: 850mm
Equipment power: 2.0kw, gas source consumption: 0.2MPa
|
|
Filled cans washing machine
|
Steam heating ,Hot water washing,Power:2KW,Size:2.7*0.7*1.5m
|
|
Bottles collecting turntable
|
Power:0.37KW,Size:0.8*1*0.8m
|
|
|
|
Including 2 baskets, 2 carts, 16 dividers,4KW
|
|
Bottles feeding turntable
|
Power:0.37KW,Size:0.8*1*0.8m
|
stainless steel 316
|
|
|
Power:7.5KW,Size:2*1*1.5m
|
|
Wet glue labeling machine
|
Power:3KW,Vertical wet glue labeling
|
|
|
|
Power:0.2kw,Size: 0.5 * 0.5 * 1m
print date etc information on tin cans
|
|
Conveyor for bottles manual packing
|
Power:0.75KW,Size:3*0.17*1.4m
|
stainless steel 316
|
Manual carton packing line
|
|
|

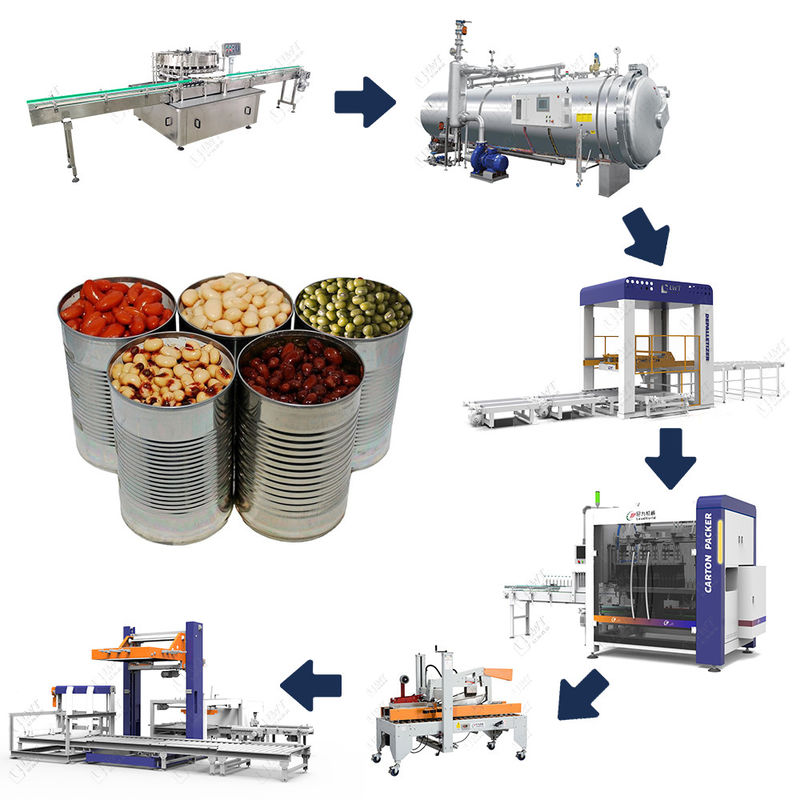

The bean canned production line uses red beans as the main raw material, and the process includes cleaning, pre-cooking, cooling, grading, trimming, canning, exhaust, sterilization, and post-packaging. This production line is also suitable for green beans, soybeans, mung beans, broad beans, kidney beans, kidney beans, peas, chickpeas, and other legumes.
Related machines
Empty Can Depalletizer
The canned depalletizer is mainly suitable for automatic depalletizing and depalletizing of empty cans such as tinplate and glass bottles. It will lift and lift the empty cans stacked on the pallet layer by layer from bottom to top. Pushing the layers onto the conveyor can save a lot of manpower and improve production efficiency.
Magnetic Cans Washing Machine
1. The whole machine is designed with SUS304 stainless steel, which is safe and hygienic, stable in operation, and easy to use.
2. Equipped with a high-pressure water pump, no dead ends design, good cleaning effect;
3. Suitable for a variety of magnetic cans and bottles
4. Cleaning time, water volume, water pressure, and water temperature can be adjusted; hot water can be circulated
5. Magnetic conveying does not damage the cans
Measuring Cup Filling Machine
1. The whole machine is made of 304 stainless steel and can be washed with clean water, making it clean and hygienic.
2. Using Omron, Siemens, Schneider, and other internationally renowned brand accessories, the equipment operates stably and reliably.
3. The PLC servo system, pneumatic control system, and display touch screen constitute the drive control, which improves the control accuracy, reliability, and intelligence of the entire machine.
4. Protection level: IP55 or above (don’t worry about using it in a humid environment, it is effectively waterproof and dustproof, extending the service life of the equipment)
5. Easy to adjust, no filling without a bottle, filling accuracy error range is ±5g.
Our Service
Pre-sales: According to client-specific machinery or automatic product line requirement, supply reasonable machine sketch map, quotation, and similar video for client ref first.
During Sales:
1) Depends on the client's need to custom base on the standard machine.
2) Repeat 20 ongoing hours testing equipment operation stability.
3) Execute GMP certification for the equipment and materials used in the production process requirement and specification strictly.
After-Sale:
1. we will assign professional engineers to customer companies for installation or maintenance services according to customer needs;
2. Supply systematic operation training for client workers.
3. After client use the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years.
4. If quality problems arise, the supplier provide technical support and timely supply wearing parts.
