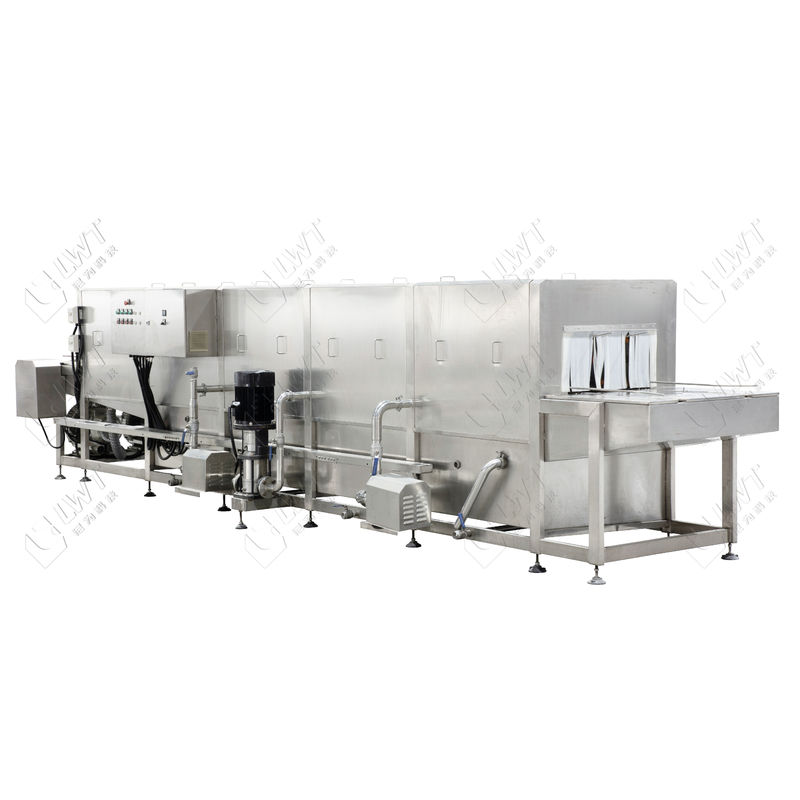

Crate Washing Machine
Product Description:
The Automatic case/crate/basket/pallet washing machine enables 70% water savings when compared to manual cleaning methods, which can save 7-8 people from work. It is primarily used in food processing plants, including slaughtering, meat, aquatic products, fruit and vegetable, beverage, brewing, and other sectors.
This same washing machine can also be used in food logistic centers, distribution centers, to disinfect containers, pallets, and other storage facilities.
Technical Parameters:
| Model parameter |
LW-WTC600 |
LW-WB800 |
LW-WB1000 |
| Process flow |
Hot water wash,high pressure wash,rinse,dry |
Hot wash,high pressure wish,rinse,dry |
Hot wash,high pressure wish,rinse,dry |
| Processing capacity |
400-600pcs/h |
600-800pcs/h |
800-1000pcs/h |
| Dimension |
L650*W500*H400mm |
L650*W500*H400mm |
L650*W500*H400mm |
| Deal capacity |
L4000*W1600*H1700mm |
L8000*W1600*H1700mm |
L8000*W2000*H1700mm |
| Power |
AC380V 50Hz 7kw |
AC380V 50Hz 13kw |
AC380V 50Hz 17kw |
| Air Pressure |
300L/h 0.3Mpa |
500L/h 0.3Mpa |
500L/h 0.3Mpa |
| Steam consumption |
80-120kg/h 0.5Mpa |
120-200kg 0.5Mpa |
120-240kg/h0 .5Mpa |
| Machine weight |
700kg |
900kg |
1200kg |
Applications:
Automatic Washing Equipment is an ideal appliance for efficient washing and cleaning of various kinds of crates, containers and other items. It is easy to operate with a simple interface and can be used to clean a wide range of items with different sizes, shapes and materials. The machine is equipped with a PLC control system, which can be used to adjust the pressure from 0.2 to 0.8Mpa. Moreover, it is powered by a voltage of either 220V or 380V and is capable of working at a frequency of 50/60Hz. It is suitable for a variety of commercial or industrial applications, such as food processing, beverage production, and pharmaceuticals. With its automatic operation and adjustable pressure settings, this washing machine is able to provide a thorough cleaning of all kinds of items quickly and efficiently.
Support and Services:
Automatic Washing Equipment Technical Support and Service
We are committed to providing our customers with the highest level of technical support and service for our Automatic Washing Equipment. Our experienced technicians are available to help you troubleshoot any issues you may have with your equipment, answer questions related to installation and maintenance, and provide general guidance.
We also offer a wide range of helpful resources online, including product manuals, tutorials, and frequently asked questions. If you need further assistance, our team is available to answer your questions and provide personalized support.
We take pride in offering our customers the highest quality products and services. If you have any questions or concerns about our Automatic Washing Equipment, please don't hesitate to contact us.
