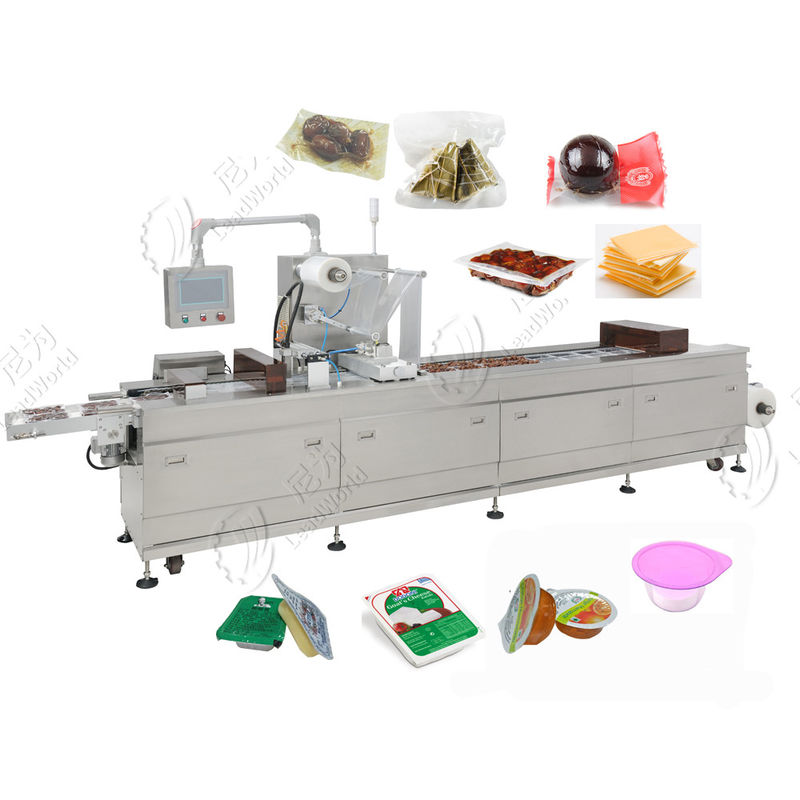

Thermoforming Vacuum Packing Machine Multifunctional Packaging Machine
Scope of application:
LeadWorld thermoforming vacuum packaging machines are suitable for vacuum packaging of many different types of products, including but not limited to palm dates, sausages, meat products, seafood, dairy products (such as cheese, etc.), sauces, pickles, whole grains (such as rice) , corn, beans, nuts, etc.), fruits and vegetables (such as frozen vegetables, fresh fruits, etc.), daily chemical products, medical products, and hardware parts, etc.
This vacuum packaging machine uses thermoforming technology to heat and soften packaging materials according to the shape and size of different products, and then hot-press mold them to closely fit the products and achieve a good sealing effect. In this way, the shelf life of food can be effectively extended and its freshness and taste can be maintained. At the same time, for non-food products, vacuum packaging can provide better protection from damage caused by the external environment, thereby improving product quality and stability.
working principle:
Auto thermoforming &Vacuum packing machine adopts Stretchable and thermoplastic soft film or hard sheet to form container, and vacuuming or MAP sealing and cutting after filling.
It does not need to customize the packaging box in advance, and integrates the functions of film stretching, filling materials, vacuuming and air conditioning, heat sealing and slitting. It has the characteristics of convenience, low energy consumption, short cycle and high efficiency.
Optional function:
Configuration:
Feature:
- Machine is made of 304 staintess steel, easy to clean.
- with German Siemens programmable controller (PLC) and touch screen,simple to use,easy to operate.
- The machine equipped with orginal BUSCH vacuum pump which is imported from Germany. It guarantees machine performance stable. High vacuum, stable quality, durable and reliable.
- Strong adaptability for the packaging materials and packaging specifications, Can be arbitrarily selected within the specified range;
- Japanese panasonic servo system driver, running steady and rapid.
- only need to change mould. Can be used to different specifications of products on one set of machine;
- On the basis of vacuum extraction, can input all kinds of mixing gas, can extend fresh time.
Main Technical Paramter:
|
Model
Parameter
|
LW-ATVP-S/D320 |
LW-ATVP-S/D420 |
LW-ATVP-S/D520 |
| Packing speed |
4-8Cycles/Min |
4-8Cycles/Min |
4-8Cycles/Min |
| Bottom Film Thickness |
≤0.8mm |
≤0.8mm |
≤0.8mm |
| Bottom Film Width |
322mm |
422mm |
522mm |
| Top Film Width |
293mm |
393mm |
493mm |
| Power Supply |
AC 380V 50HZ (3Phase) |
AC 380V 50HZ (3Phase) |
AC 380V 50HZ (3Phase) |
| Air Consumption |
500L/Min |
550L/Min |
650L/Min |
| Air Supply |
≥0.6MPa |
≥0.6MPa |
≥0.6MPa |
| Power |
10KW |
12KW |
15KW |
| Dimension |
4500*1000*1700mm |
5200*1100*1760mm |
6000*1200*1760mm |
| Weight |
1300kg |
1600kg |
2200kg |
Our Service:
Pre-sales: According to client-specific machinery or automatic product line requirement, supply reasonable machine sketch map, quotation, and similar video for client ref first.
During Sales:
1) Depends on the client's need to custom base on the standard machine.
2) Repeat 20 ongoing hours testing equipment operation stability.
3) Execute GMP certification for the equipment and materials used in the production process requirement and specification strictly.
After-Sale:
1. we will assign professional engineers to customer companies for installation or maintenance services according to customer needs;
2. Supply systematic operation training for client workers.
3. After client use the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years.
4. If quality problems arise, the supplier provide technical support and timely supply wearing parts.
