Round Bottle Automatic Sauce Filling Production Lines JAM Filling Machine - Product Overview
The filling production line is a jam filling line that uses the latest technology to provide high-precision and efficient filling of liquid products. This liquid filling machine is made of 034 stainless steel material and is suitable for use in the food and pharmaceutical industries.
The machine is equipped with a touch screen operating system that allows easy and intuitive control of the filling process. This user-friendly interface allows operators to easily set parameters and monitor production in real time. The touch screen also provides access to various functions such as changing fill speed and volume, making it highly versatile and adaptable to different production needs.
Round Bottle Automatic Sauce Filling Production Lines JAM Filling Machine Applications:
The thick sauce flling line is suitable for containers such as glass botles, plastic bottles and tinplate cans. t is mainly usedfor flling tomato sauce, jam (may contain particles), sweet sauce, chili sauce, peanut butter, sesame sauce, barbecnesauce,chocolate sauce.mavonnaise and so on.
Round Bottle Automatic Sauce Filling Production Lines JAM Filling Machine Process:
Empty can depalletizer - magnetic can washing machine - thick sauce filling machine - sealing machine - sterilizing machine - labeling machine - unpacking machine - cartoning machine - carton sealing machine - robot code Palletizer
Round Bottle Automatic Sauce Filling Production Lines JAM Filling Machine Equipment:
1. Empty can depalletizer
The depalletizer/depalletizer is mainly suitable for automatic depalletizing and depalletizing of empty cans such as tinplate and glass bottles. It will lift and layer the empty cans stacked on the pallet layer by layer from bottom to top. Pushing it to the conveyor can save a lot of manpower and improve production efficiency.
2.Magnetic can washing machine
① The whole machine is designed with SUS304 stainless steel, which is safe and hygienic, stable in operation and easy to use;
② Equipped with high-pressure water pump, no dead ends design, good cleaning effect;
③Applicable to a variety of can and bottle types;
④Cleaning time, water volume, water pressure and water temperature can be automatically adjusted, hot water can be circulated, energy saving and environmental protection;
⑤ It is transported magnetically without damaging the can.

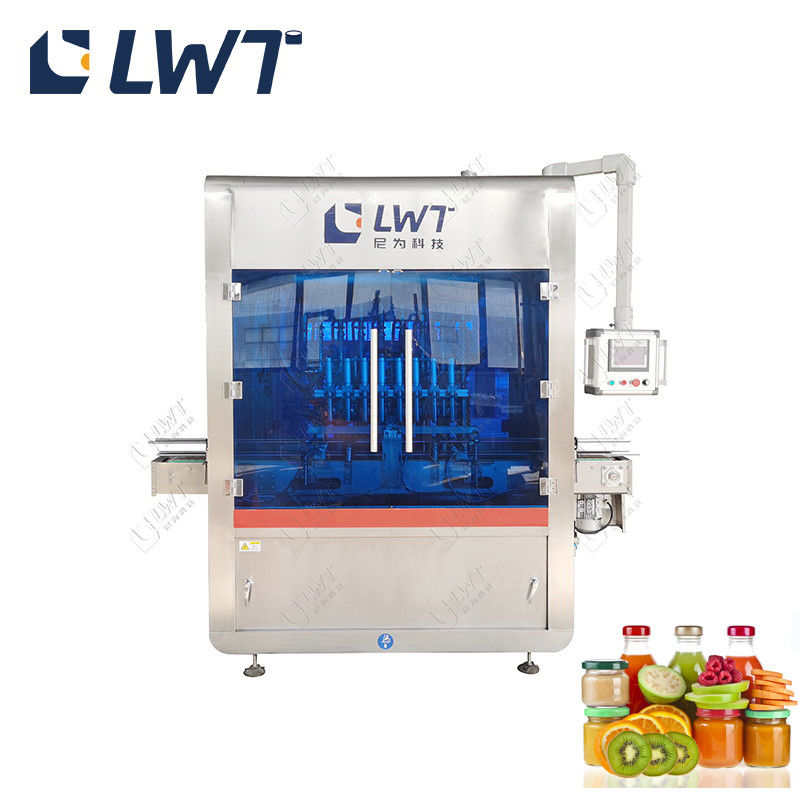

3. Thick sauce filling machine
① The parts in contact with the material are made of 316 stainless steel, which is clean and hygienic;
② Using Omron sensors, Siemens PLC, Weilon touch screen, and Schneider electrical components, the equipment operates stably and reliably;
③ Convenient adjustment, no filling without bottles, filling accuracy of liquid error range ±0.5%, paste error range ±1%, and has counting function;
④ The filling head is equipped with a leak-proof device, and there is no stringing or dripping during filling;
⑤ When changing bottles of different specifications and shapes, there is no need to replace parts, and the adjustment is simple and convenient.
4. Roller pasteurizer
① The rolling bar pasteurizer is suitable for sterilizing various round cans, round bottles and other products. The body is designed with SUS304 stainless steel, which is hygienic and beautiful, has low noise and is high temperature resistant.
② The roller bar design allows the product to be heated evenly to better meet sterilization requirements.
③ According to the different process requirements of users for heating, sterilizing, keeping, and cooling products, different process designs can be carried out to meet the process requirements, and corresponding high-precision automatic control systems can be configured.
5. Labeling machine
① Use Siemens PLC, touch screen, and servo motor as the main components to control the equipment to run at high speed.
② The interface is friendly and easy to set up. The main functions are: product counting, output setting, parameter memory, equipment status monitoring, automatic shutdown due to equipment failure, alarm prompts for fault location and help functions.
6. Carton erector
The automatic carton erector machine adopts PLC + human-machine interface control. The folding bottom does not stop, and the bottom folding and bottom sealing are completed during transportation. It completes the entire process of box suction, forming, bottom folding, and bottom sealing at the same time. It is easy to operate, simple to maintain, and has stable performance.
7.Case Packer
Case Packer is a kind of automatic packing machine, which puts bottles or cans evenly into plastic boxes or cartons according to a certain arrangement.Suitable glass bottle,Pet bottle,tin cans,bag.
8. Sealing machine
The carton sealing machine uses instant tape to seal cartons, which is economical, fast, and easy to adjust. It can complete the upper and lower sealing actions at one time.
9. Robot palletizer
The robot palletizer is a high-tech product with electromechanical integration. It can complete the palletizing of various products such as bags, plastic blocks, and boxes according to the required grouping method and number of layers.
Our Service
Pre-sales: According to client-specific machinery or automatic product line requirement, supply reasonable machine sketch map, quotation, and similar video for client ref first.
During Sales:
1) Depends on the client's need to custom base on the standard machine.
2) Repeat 20 ongoing hours testing equipment operation stability.
3) Execute GMP certification for the equipment and materials used in the production process requirement and specification strictly.
After-Sale:
1. we will assign professional engineers to customer companies for installation or maintenance services according to customer needs;
2. Supply systematic operation training for client workers.
3. After client use the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years.
4. If quality problems arise, the supplier provide technical support and timely supply wearing parts.
