Automatic Hair Conditioner Liquid Filling Production Lines Packaging Machine
Product Description:
The fully automatic conditioner liquid filling production line packaging machine is an automated production line system specially used for hair conditioner liquid products. It can complete the filling and packaging process of hair conditioner liquid products.
Control System
The PLC control system in our liquid filling machines ensures precise and consistent filling of every bottle. It can easily adjust filling volume and speed, providing flexibility for different production requirements. The user-friendly interface allows operators to easily monitor and control the machine.
Filling accuracy
Our filling lines have a filling accuracy of +/- 1%, ensuring high quality and uniform filling of liquids. This helps minimize product waste and ensure customer satisfaction. The machine also features a drip-proof filling mechanism, reducing the risk of spills and messes.
Material
We understand the importance of hygiene during production, which is why our filling lines are made of 304/316 stainless steel. This makes the machine easy to clean and maintain, ensuring safe and hygienic liquid filling.
Working Process:

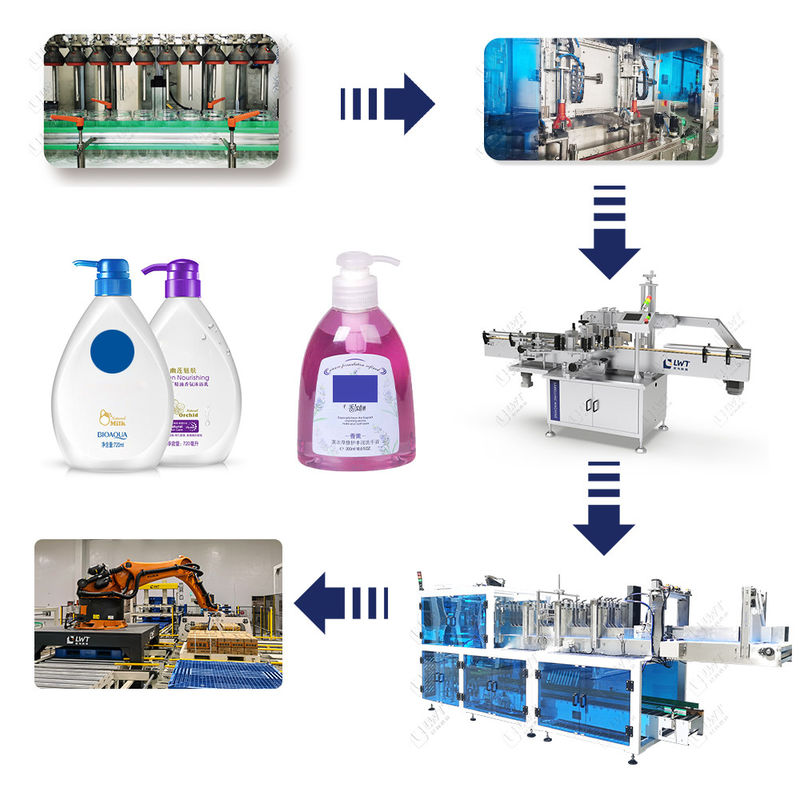

1.Air Botte Washing→2.Filling→3.Capping→4.Labeling→5.Carton Erector→6.Carton Packer→7.Carton Sealer→8.Palletizer
Features:
Automatic Beverage Filling Production Line
1.Qty of filling head: 2~12 head (depending on the designing).
2.Filling capacity: 50ML-5000ML (Compatible filling capacity tolerance for a single machine is one times. To be determined by customer requirements).
3.Filling method: Equal-liquid level self flowing type.
4.Filling speed: 6~8 bottles/min. head (500ml bottle)
5.Filling accuracy: ±1%.
6.Program control: PLC + touch screen.
7.Main materials: #304 stainless steel, PVC used in food industry.
8.Air pressure: 0.6-0.8Mpa.
9.Conveyer belt: Stainless steel chain belt of 82mm in width. Speed: 0-15m/min. Distance away from the ground: 750mm±25mm.
10.Conveyor motor: 370W frequency conversion speed regulation motor.
11.Power: 1KW/220V single phase.
12.Capacity of material tank: 200L (with liquid level switch). 13.Protective device: Outage alarm on shortage of liquid in the reservoirtank.
Related Machines:
Air Bottle washing machine
Air bottle washing machine:lt adopts high-pressure ionic wind cleaning, Siemens PLC automatic control, and the
cleaning time is adjustable. Applicable to all kinds of non-stick water bole, such as honey, syrup and so on.
Filling Machine
1. Vacuum Preventing Leaking System
2. Photoelectric Sensor, Mechatronics Filling Adjustment System
3. Photoelectric Sensor, Material Level Control Feeding System
4. Stainless Steel Frame,Plexiglass as Security Cover
5. Control System: PLC/Electronic-Pneumatic Controlled
6. Operation Panel: "Intelligent" Colorful Touch Screen
7. Filling Accuracy:+-0.5%-1%
8. Capacity Adjustment:All cylinders adjusted automatically combine single cylinder adjusted individually.
9.Container transport:Stainless steel frame and engineering plastic plate chain variable speed conveyor, with photoelectric sensor
Capping Machine
Auto Capping Machine includes automatically cap sorting, cap feeding and capping function. The bottles are entering in line, and then continuous capping, high efficiency. It is widely used in industries of cosmetics, food, beverage, medicine, biotechnology, health care, personal care chemical etc. It is suitable for all kinds of bottles with screwed caps.
Round Bottle Labeling Machine
KL-700 main parts would be labeling head, stainless steel 304 frame, conveyor system, sponge pressing while and Siemens PLC touch screen and servo motor for fast speed labeling.Applicable products:Glass bottle, PET bottle, tin can, bucket and round cups.
Case Packer
The fully automatic case packer is widely used in industries such as food, daily chemicals, and chemicals. It is mainly used for packaging bucket-packed jams, concentrates, beverages, and various canned products.
The fully automatic case packer is composed of a frame, bottle feeding conveyor, box feeding conveyor, bottle suction unit, box opening mechanism, and electrical cabinet.
Gantry Palletizing Machine
Structural frame welding bonding method, strong and durable,match with adjustable base.Main machine lifting platform adopt SEW motor;inputting speed belt conveyor help to separate cartons:Machine include roller conveyor of pallet storage area,2.5m length of full stack outputting conveyor,roller conveyor,safety protection device;Adopt Germany Siemens PLC control system.man-machine interface,portable fault automatic display.
FAQ
Q1: What is your company’s main products?
Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)
Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Are you manufacturer or trading company?
We are manufacture verified by ALIBABA and we have our own design team.
Q5:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by CE.
Q7:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.
Q8:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your worker if needed.
