The filling production line is an efficient and customizable solution for filling various types of daily chemical product liquid pastes into bottles. Our products are specially designed for industrial use and are ideal for liquid and paste filling.
Working Process:

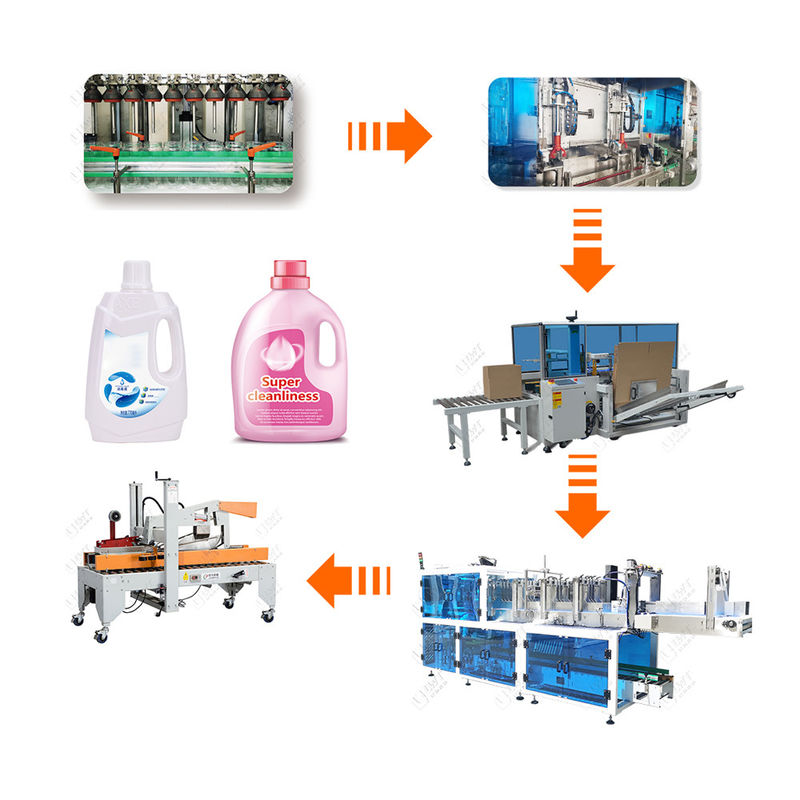

1.Air Botte Washing→2.Filling→3.Capping→4.Labeling→5.Carton Erector→6.Carton Packer→7.Carton Sealer→8.Palletizer
Features:
Automatic Beverage Filling Production Line
1.Qty of filling head: 2~12 head (depending on the designing).
2.Filling capacity: 50ML-5000ML (Compatible filling capacity tolerance for a single machine is one times. To be determined by customer requirements).
3.Filling method: Equal-liquid level self flowing type.
4.Filling speed: 6~8 bottles/min. head (500ml bottle)
5.Filling accuracy: ±1%.
6.Program control: PLC + touch screen.
7.Main materials: #304 stainless steel, PVC used in food industry.
8.Air pressure: 0.6-0.8Mpa.
9.Conveyer belt: Stainless steel chain belt of 82mm in width. Speed: 0-15m/min. Distance away from the ground: 750mm±25mm.
10.Conveyor motor: 370W frequency conversion speed regulation motor.
11.Power: 1KW/220V single phase.
12.Capacity of material tank: 200L (with liquid level switch). 13.Protective device: Outage alarm on shortage of liquid in the reservoirtank.
Related Machines:
Air Bottle washing machine
Air bottle washing machine:lt adopts high-pressure ionic wind cleaning, Siemens PLC automatic control, and the
cleaning time is adjustable. Applicable to all kinds of non-stick water bole, such as honey, syrup and so on.
Filling Machine
Our filling production line is equipped with advanced piston filling technology to ensure high precision and stable performance. This type of filling is suitable for a variety of liquids.
1. Vacuum Preventing Leaking System
2. Photoelectric Sensor, Mechatronics Filling Adjustment System
3. Photoelectric Sensor, Material Level Control Feeding System
4. Stainless Steel Frame,Plexiglass as Security Cover
5. Control System: PLC/Electronic-Pneumatic Controlled
6. Operation Panel: "Intelligent" Colorful Touch Screen
7. Filling Accuracy:+-0.5%-1%
8. Capacity Adjustment:All cylinders adjusted automatically combine single cylinder adjusted individually.
9.Container transport:Stainless steel frame and engineering plastic plate chain variable speed conveyor, with photoelectric sensor
Capping Machine
Auto Capping Machine includes automatically cap sorting, cap feeding and capping function. The bottles are entering in line, and then continuous capping, high efficiency. It is widely used in industries of cosmetics, food, beverage, medicine, biotechnology, health care, personal care chemical etc. It is suitable for all kinds of bottles with screwed caps.
Round Bottle Labeling Machine
KL-700 main parts would be labeling head, stainless steel 304 frame, conveyor system, sponge pressing while and Siemens PLC touch screen and servo motor for fast speed labeling.Applicable products:Glass bottle, PET bottle, tin can, bucket and round cups.
Case Packer
The fully automatic case packer is widely used in industries such as food, daily chemicals, and chemicals. It is mainly used for packaging bucket-packed jams, concentrates, beverages, and various canned products.
The fully automatic case packer is composed of a frame, bottle feeding conveyor, box feeding conveyor, bottle suction unit, box opening mechanism, and electrical cabinet.
Gantry Palletizing Machine
Structural frame welding bonding method, strong and durable,match with adjustable base.Main machine lifting platform adopt SEW motor;inputting speed belt conveyor help to separate cartons:Machine include roller conveyor of pallet storage area,2.5m length of full stack outputting conveyor,roller conveyor,safety protection device;Adopt Germany Siemens PLC control system.man-machine interface,portable fault automatic display.
Customization:
Customized Tomato Sauce Filling Production Line
Our Customized Tomato Sauce Filling Production Line is designed to meet your specific needs. It has a high production capacity and can be customized to fit your exact requirements. It is powered by a 220V/380V power supply and has an air pressure range of 0.4-0.6MPa.
Support and Services:
Our Filling Production Line technical support and service includes:
- 24/7 online technical support
- On-site installation and commissioning
- Operation and maintenance training
- Regular maintenance and repair services
- Replacement parts and components
- Fault diagnosis and troubleshooting
- Product upgrades and updates
- Consulting and advisory services
Packing and Shipping:
The Filling Production Line is packaged and shipped with the following components:
- Filling Machine
- Bottle Rack
- Filling Nozzle
- Control Panel
- Cables and Wires
The components are packaged in an industry-standard box and shipped using a reliable courier service.
