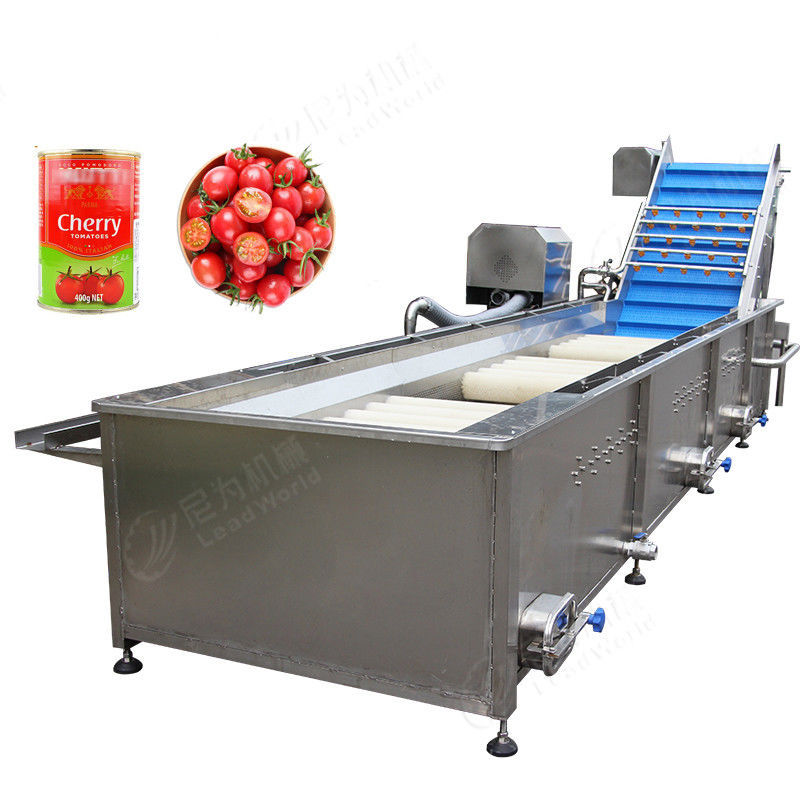

Tomato Paste Filling Production Line
1.tomato (fruit or vegetable) → 2.Digging nuclear →3.Turnover→4.Soda water spraying→5.Peeler and cleaner → 6.pre-cooked → 7.cooling → 8.pick → 9.go hair→10.Slicer →11.Filling(←Botte washing←Depalletizer)→12.Pouring juice→13.Exhauster→14.Sealing→15.Canned tomato→16.Sterilization→17.Dryer→18.Cans Palletizer→19.Warehousing→20.Labeler→21.Finished product→22.Case packer→23.Case Palletizer→24.Shipments
Related products
Bottle washing machine Main Features: High Pressure Flushing Bottle Washing Machine mainly applies to glass bottle and canned container washing, temperature can be adjusted by machine automatically; It adopts circulating hot water,warm water preheating,cold water cleaning as well as other methods. It has water and energy saving functions Technical Parameters: Diameter of bottles:50-200mm Height of bottles:50-310mm Capacity of washing:150bottles/min Water injection power:0.2-0.4MPa Water temperature >75℃ Washing time:1.5 seconds Drain time:4 seconds Consumption of water: 2-4T/H
Filling machine
Thick jam flling machine is widely used as sauces, foods, daily chemicals, etc, can fill hot sauce, tomato sauce,honey, jam, mushroom sauce, mustard sauce, salad dressing, pulp-containing beverages, etc. Using servo control, high measurement accuracy and stable operation.
Main Technical Parameter
|
Model
|
Filling Volume
|
Air Pressure
|
Total Power
|
Machine Size(mm)
|
|
LW--4A
|
10-60g
30-100g
100-500g
200-1000g
500-2500ml
1000-5000ml
|
120L/min
|
3P 380V 50/60HZ 1.369KW
|
L2200*W1020*H2250
|
|
LW--6A
|
140L/min
|
3P 380V 50/60HZ 1.69KW
|
L2500*W1020*H2250
|
|
LW--8A
|
160L/min
|
3P 380V 50/60HZ 2.07KW
|
L2500*W1020*H2250
|
|
LW--10A
|
180L/min
|
3P 380V 50/60HZ 2.82KW
|
L3000*W1020*H2250
|
|
LW--12A
|
300L/min
|
3P 380V 50/60HZ 2.82KW
|
L3000*W1020*H2250
|
Aluminum foil sealing machine(Roll Film)
1.Descriptions: The wide-mouth bottle sealing machine is widely used in various plastic cups/bowls/boxes/bottles/can seals, sealing one to six at a time; the sealing is firm and efficient, the automation is high, the operation is simple and quick, the performance is stable, and it is easy to maintain; It can be used in a single machine or in a production line, which greatly reduces the labor intensity and labor cost of workers and improves production efficiency. Packaging container (Customized on demand) is not limited to round, long square, polygonal and other shaped containers 2. Performance characteristics Automatic film cutting, automatic film winding, automatic color code positioning, intelligent PLC control system, automatic adjustment of sealing heat sealing time and film length, automatic counting function, automatic constant temperature, one button start and stop; 3. Workflow Delivery bottle → light eye count → automatic positioning sealing → film cutting, film removal, film collection → automatic product delivery
Automatic double side labeling machine
Features: LW-901 is mainly composed of SUS304 Chassis; Chain Plate Conveyor Line;Separation Correction; Synxhronition Crimping;Dual-head;Universal Adjustment Sponge Wheel and other institutions,use.Siemens PLC,touch screen;Servo motor as the main compenents,control devices run at high speed.Equipment safety,efficiency,and stability;comply with GMP,CE specifications. Friendly operation interface,easy setting. Mainfunction: product count, output setting, parameters memory, equipment state monitoring,device failure automatic shutdown,alarm fault location and help information.
FAQ
Q1: What is your company's main products?
Filling Machine,Palletizer/De-palletizer, Conveyors, Case Packer, Carton Erector,Carton Sealer,Capping Machines, Packing Machines and Labeling Machines.
Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Are you manufacturer or trading company?
We are manufacture verified by ALIBABA and we have our own design team.
Q5:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always perate this process,so very experienced.
3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
Q7:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.
Q8:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your worker if needed.
